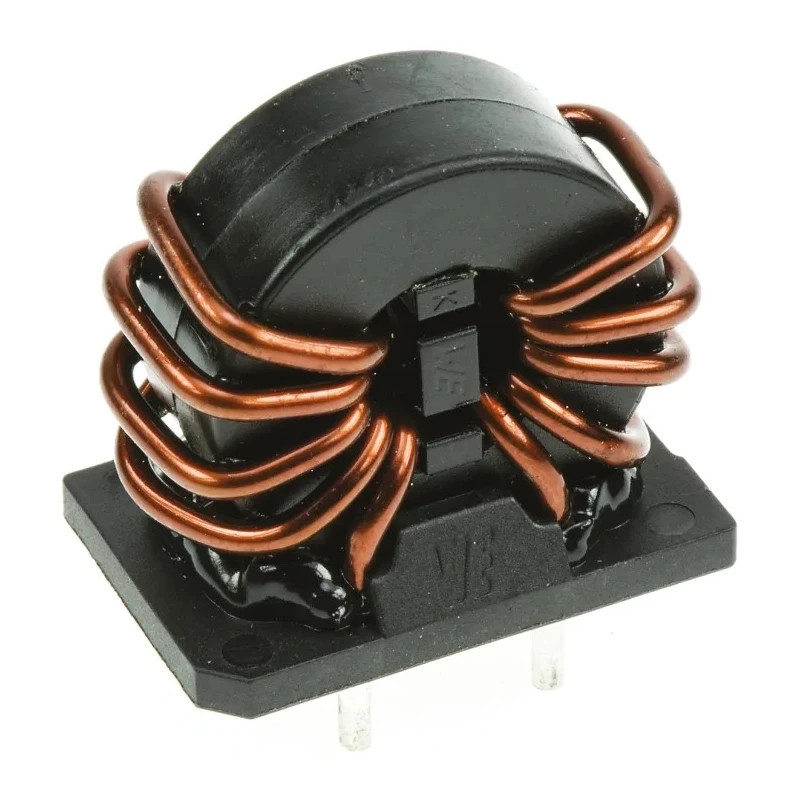

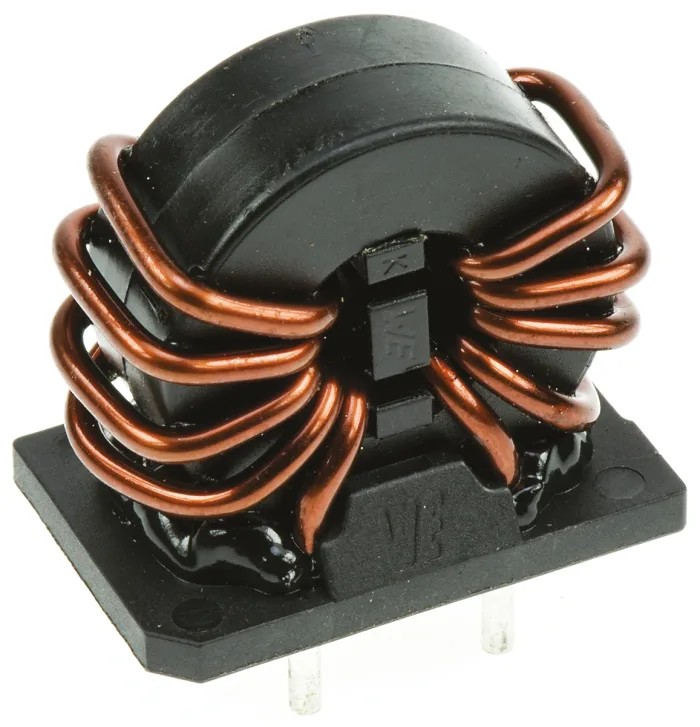

Wurth Elektronik 15 mH Nano Crystal Common Mode Choke, 5 A Maximum DC Current, 38 mΩ DC Resistance, Max SRF 300 7448040515
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 32mm |
| Length | 28mm |
| Depth | 19mm |
| Packaging | Tray & Carton |
| Mount Type | Through Hole |
| Series | WE-CMBNC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 50Hz |
| Core Material | Nano Crystal |
| Inductance | 15mH |
| Standards/Approvals | VDE, RoHS, ENEC 10, REACH |
| Maximum DC Current | 5A |
| Maximum DC Resistance | 38mΩ |
| Inductance Tolerance | -30 to 50 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 300MHz |
| Lead Pitch | 10mm |
| Lead Diameter | 1mm |
| Small size Frequency range | 1 kHz-300 MHz |
| Wurth Elektronik 15 mH Nano Crystal Common Mode Choke, Max SRF | 300 MHz, 5 A Idc, 38 mΩ Rdc, WE-CMBNC |
| Wurth 2 x 82 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF | 1 kHz → 300 MHz, 2.5A Idc, 2 xBrand: Wurth Elektronik |
Key Features
- Utilizes nano crystalline core material for very high permeability and performance.
- Maximum direct current rating of 5 A for high power applications.
- Maximum DC resistance is a low 38 mΩ ensuring minimal power loss.
- Operates reliably between -40°C and 125°C temperature range.
- Maximum self-resonant frequency (SRF) of 300 MHz supports broadband suppression.
- Through-hole mount type with lead diameter of 1 mm and lead pitch of 10 mm.
- Compact dimensions of length 28 mm, height 32 mm, and depth 19 mm.
- Suitable for power electronics, radio interference suppression in motors, and common mode noise filtering.
Product Description
Wurth Elektronik 7448040515 is a 15 mH Nano Crystal Common Mode Choke built with a nano crystalline core offering very high permeability. It features a maximum DC current rating of 5 A, with a low maximum DC resistance of 38 mΩ to ensure efficient operation in power electronics and EMI suppression applications.
This common mode choke supports a broadband frequency range from 1 kHz up to a maximum self-resonant frequency of 300 MHz. It is designed for through-hole mounting with 1 mm lead diameter and 10 mm lead pitch, housed in a compact plastic case measuring 28 mm in length, 32 mm height, and 19 mm depth.
Operating temperature range from -40°C to 125°C ensures high stability and reliability in demanding industrial environments. Typical applications include power line input and output filters, radio interference suppression in motors, and common mode noise rejection to improve electromagnetic compatibility.
The product complies with industry standards including RoHS, VDE, ENEC 10, and REACH, underscoring its environmental safety and quality. Originating from China, this component is packaged in trays and cartons appropriate for manufacturing and assembly processes.
Utilizes high permeability nano crystalline core material. High current rating of 5 A and low DC resistance of 38 mΩ. Supports broadband suppression up to 300 MHz maximum self-resonant frequency. Compact and robust through-hole design suitable for automated insertion.
Designed for power electronics, noise suppression, and EMI filtering. Compliant with RoHS, VDE, ENEC 10, and REACH standards. Operates over a wide temperature range from -40°C to 125°C. Ideal for industrial, power, and electronic filtering applications.
Explore the wide range of Wurth Elektronik electronic components and inductors for your industrial and electronic projects on EnvMart.
Explore more products in our Common Mode Chokes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance of 15 mH, which is suitable for various power electronics applications.
The maximum DC current rating for this common mode choke is 5 A, allowing it to handle high power applications effectively.
It features a maximum DC resistance of 38 mΩ, ensuring minimal power loss during operation.
This unit operates reliably within a temperature range of -40°C to 125°C, making it suitable for demanding environments.
The maximum self-resonant frequency (SRF) is 300 MHz, which supports broadband suppression.
The choke has compact dimensions of 28 mm in length, 32 mm in height, and 19 mm in depth.
It is designed for through-hole mounting, with a lead diameter of 1 mm and lead pitch of 10 mm.
This model complies with RoHS, VDE, ENEC 10, and REACH standards, ensuring environmental safety and quality.
It is suitable for power line input and output filters, radio interference suppression in motors, and common mode noise rejection.
The choke utilizes a nano crystalline core material, which provides very high permeability and performance.
This component is packaged in trays and cartons, appropriate for manufacturing and assembly processes.
It supports a frequency range from 1 kHz up to the maximum self-resonant frequency of 300 MHz.
