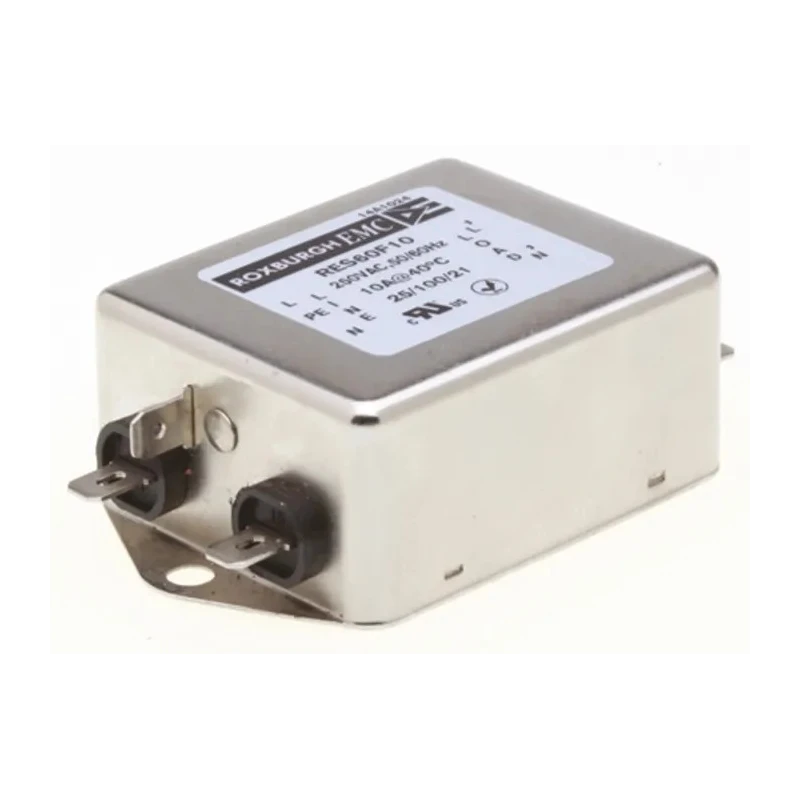

Roxburgh EMC Single Phase 10A 250V AC 400Hz Chassis Mount RFI Filter RES60

Roxburgh EMC RES60 is a high-performance, single-phase RFI filter designed for chassis mounting and fast-on terminations. Rated for a maximum current of 10 amps at 250V AC and optimized for operation up to 400Hz, this filter effectively suppresses both differential and common mode electromagnetic interference commonly present in electrical and electronic equipment.

Constructed as a multi-stage filter, the RES60 series provides robust noise attenuation suitable for consumer goods, household equipment, industrial machinery, building automation systems, and electronic data communication devices. The model achieves this through a capacitance of 940nF and an inductance of 1.6mH, ensuring effective filtering across a broad frequency spectrum.

The filter supports a wide temperature range from -25°C to 100°C, ensuring reliable functionality in various industrial and commercial environments. Its low leakage current of 740μA makes it suitable for applications with strict leakage requirements, including some medical applications.

Measuring 85mm in length, 52mm in depth, and 29.5mm in height, the compact form factor facilitates easy chassis mounting without disrupting equipment layouts. The fast-on termination style expedites installation and maintenance.

This product complies with CSA 22.2 No. 8 and UL 1283 standards, guaranteeing safety and performance quality required in global markets. Multi-stage high attenuation filter for EMI suppression. 10A maximum current at 250V AC, 400Hz operating frequency support.

Compact chassis mount design with fast-on terminals. Wide operating temperature range from -25°C to 100°C. Low leakage current suitable for sensitive applications. Compliance with CSA and UL standards. Compact dimensions and high resistance for stable operation.

This RFI filter is ideal for industrial, commercial, electronic, and HVAC applications requiring effective EMI noise mitigation. Explore more products in the RFI Filter category at EnvMart for comprehensive electronic components solutions.
