Roxburgh EMC RES70 Series 6A 250V AC 400Hz Chassis Mount RFI Filter Fast-On Termination

Free Delivery in India | Lowest Global Shipping Charges

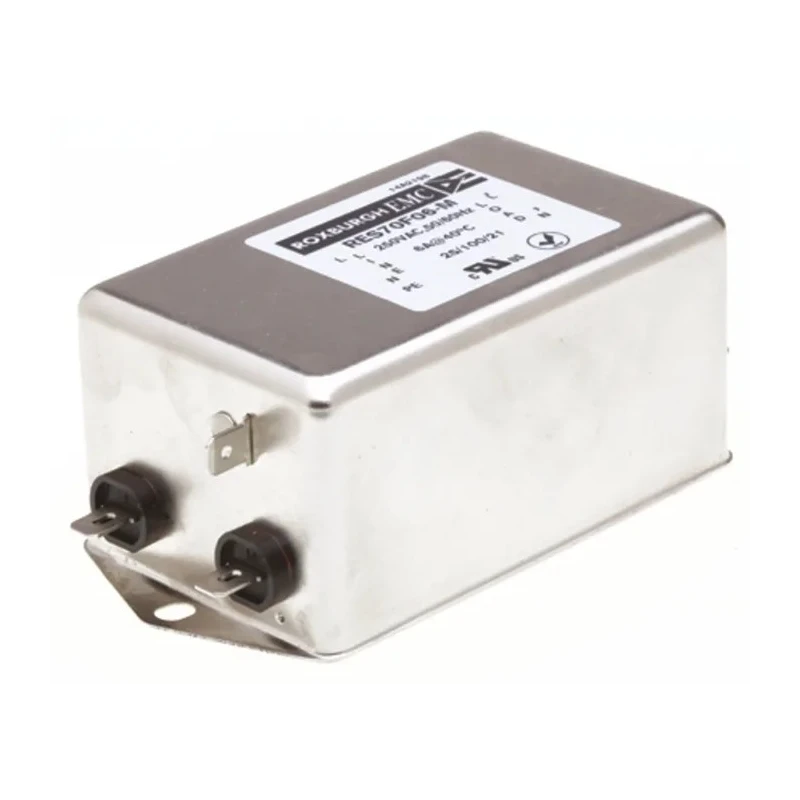

Roxburgh EMC RES70 Series 6A 250V AC 400Hz Chassis Mount RFI Filter Fast-On Termination

Name: Roxburgh EMC RES70 Series 6A 250V AC 400Hz Chassis Mount RFI Filter Fast-On Termination
Brand: Roxburgh EMC
SKU: 374542
Price: 103.15 USD
Availability: InStock



Category RFI Filter Brand Roxburgh EMC Condition New

Specifications

Country of Origin	India
Brand	Roxburgh EMC
Height	45mm
Length	115mm
Model	RES70
Depth	57mm
Mount Type	Chassis Mount
Operating Frequency	400Hz
Series	RES70
Maximum Operating Temperature	100°C
Resistance	220kΩ
Minimum Operating Temperature	-25°C
Maximum Current	6A
Number of Phases	1
Leakage Current	2μA
Maximum Voltage	250V ac
Inductance	7.8mH
Standards/Approvals	UL 1283, CSA 22.2 No. 8
Termination Style	Fast-On

Key Features

The RES70 series is compact and designed for high-frequency attenuation from DC to 400Hz.
Features multi-stage filter construction for superior EMI reduction in noisy environments.
Fast-On termination style and chassis mounting ensure quick and secure installation.
Suitable for applications including electrical equipment, consumer electronics, building automation, and office automation.
Operates reliably between -25°C and 100°C, meeting UL 1283 and CSA 22.2 No. 8 safety standards.
Low leakage current of 2μA makes it viable for sensitive and medical equipment.

Product Description

Roxburgh EMC RES70F06-M Chassis Mount RFI Filter is a single-phase electromagnetic compatibility (EMC) filter designed for attenuating high-frequency noise in electrical and electronic applications. This model is rated for a maximum continuous current of 6 Amperes and supports voltages up to 250V AC at frequencies up to 400Hz.

The RES70 series incorporates multi-stage filtering technology, providing excellent differential and common mode noise suppression. Its compact chassis mount form factor with fast-on termination terminals allows for quick and secure integration into various equipment.

Designed for industrial, commercial, and household uses, this RFI filter is suitable for electrical drives, building automation systems, office and household equipment, as well as electronic data and communication processing devices. Its operational temperature range from -25°C up to 100°C ensures reliable performance in diverse environments.

Key electrical parameters include an inductance of 7.8 millihenries, resistance of 220 kilo-ohms, and extremely low leakage current of only 2 microamperes, making it ideal for noise-sensitive devices including medical equipment. The filter complies with UL 1283 and CSA 22.2 No. 8 safety standards, assuring quality and performance compliance.

The RES70 series offers a high level of EMC filtering reducing electromagnetic interference effectively. Compact size and chassis mounting supports space-efficient design requirements. Fast-On style termination ensures straightforward wiring and maintenance.

Wide operating temperature range and robust construction promote durability in industrial settings. Low leakage current allows usage in sensitive electronic and medical applications.

This product is ideal for integration into various electrical and electronic assemblies requiring high reliability EMI suppression and compliance with safety standards. Browse more RFI Filters and EMC filters available for industrial, HVAC, agricultural, commercial, and lab equipment on EnvMart for suitable solutions.
