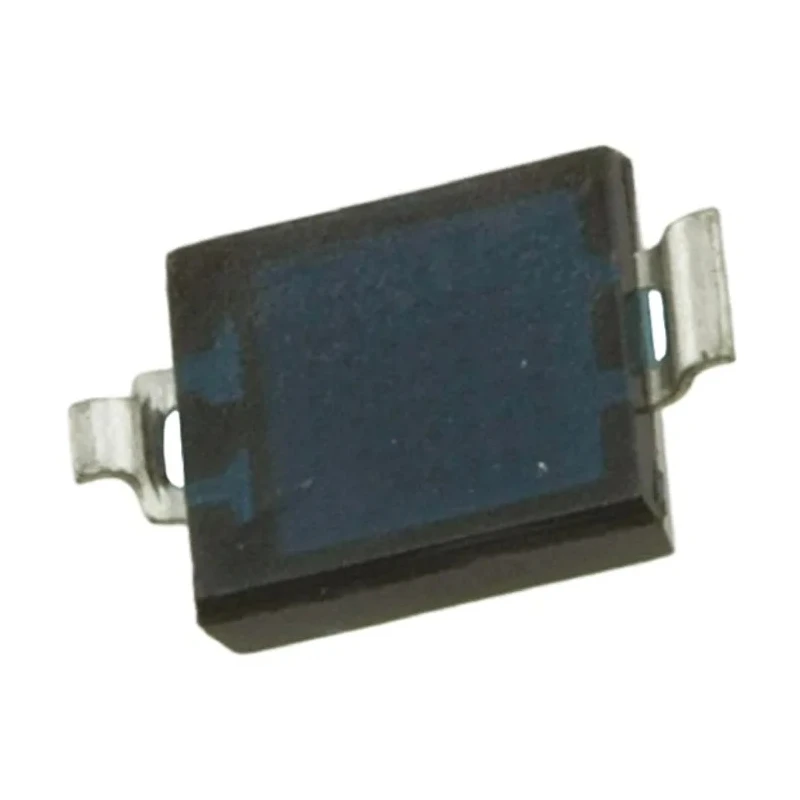

Vishay Infrared Photodiode 65°, Surface Mount Reverse Gullwing Package VBPW34FASR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Dimensions | 6.4 x 3.9 x 1.2 mm |
| Height | 1.2mm |
| Length | 4.4mm |
| Model | VBPW34FASR |
| Packaging | Tape & Reel |
| Width | 3.9mm |
| Mount Type | Surface |
| Short Circuit Current | 50μA |
| Maximum Operating Temperature | 100°C |
| Package Type | Reverse Gullwing |
| Minimum Operating Temperature | -40°C |
| Polarity | Forward |
| Dark Current | 2nA |
| Open Circuit Voltage | 350mV |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 80ns |
| Automotive Standard | AEC-Q101 |
| Wavelength of Peak Sensitivity | 950nm |
| Spectrums Detected | Infrared |
| Breakdown Voltage | 60V |
| Minimum Wavelength Detected | 780nm |
| Maximum Wavelength Detected | 1050nm |
| Angle of Half Sensitivity | 65 ° |
| Radiant sensitive area | 7.5 mm² |
Key Features
- This photodiode detects infrared spectrums between 780nm and 1050nm wavelengths.
- Its peak sensitivity wavelength is 950nm, ideal for IR remote control and data transmission applications.
- Packaged for surface mounting with tape and reel format and featuring a 2-pin reverse gullwing configuration.
- Operates reliably within a temperature range of -40°C to 100°C, meeting automotive AEC-Q101 standards.
- Features high radiant sensitive area of 7.5 mm² with a 6.4 x 3.9 x 1.2 mm compact package size.
- Offers fast response times with typical rise and fall times of 80ns.
- Forward polarity device with a breakdown voltage of 60V and 50μA short circuit current.
- Dark current is low at 2nA, ensuring low noise during operation.
Product Description
Vishay VBPW34FASR is a high-performance infrared PIN photodiode designed for surface mounting applications in electronics requiring precise IR detection. Equipped with a reverse gullwing lead package, it is optimized for placement on PCBs to enhance high-speed infrared sensing and transmission efficiency.
This photodiode detects infrared radiation in a wavelength range from 780nm to 1050nm, with maximum sensitivity at 950nm, making it suitable for IR remote control systems, air data transmissions, and other industrial IR sensing applications. It supports fast switching speeds with typical rise and fall times of 80 nanoseconds.
The VBPW34FASR has a radiant sensitive area of 7.5 mm² enclosed in a compact 6.4 x 3.9 x 1.2 mm black package. Its 65° angle of half sensitivity ensures a broad detection field, while the forward polarity and breakdown voltage of 60V facilitate reliable operation in demanding circuits. The device maintains low dark current leakage (2nA) to minimize noise interference.
Certified with RoHS compliance and conforming to automotive standard AEC-Q101, it withstands operating temperatures between -40°C and 100°C, making it reliable for both industrial and automotive applications. Packaged on tape and reel for automated PCB assembly, it is ideal for manufacturers requiring consistent quality and efficiency.
Key features include the reverse gullwing mounting style on a surface mount device (SMD) package, radiant sensitive area, and fast response suitable for high-speed IR detection. The device’s specifications ensure compatibility with a wide range of electronic systems utilizing infrared sensors.
This infrared photodiode detects spectrums from 780nm to 1050nm. Peak wavelength sensitivity is 950nm. Package type is reverse gullwing suitable for surface mounting. Operates between -40°C and 100°C maintaining performance.
Complies with RoHS and automotive AEC-Q101 standards. Features low dark current and high short circuit current rating. Compact package dimensions optimize PCB space utilization. Tape and reel packaging enables assembly automation and efficiency.
Ideal for use in industrial electronics, automotive sensors, remote control devices, and air data transmission systems, the Vishay VBPW34FASR Photodiode combines reliability, precision, and ease of manufacturing. Explore EnvMart’s extensive catalog to find compatible components and complete your assembly requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This photodiode detects infrared radiation in the wavelength range from 780nm to 1050nm, with peak sensitivity at 950nm.
The dimensions of this model are 6.4 mm in length, 3.9 mm in width, and 1.2 mm in height.
It has typical rise and fall times of 80 nanoseconds, allowing for fast response in applications.
The maximum operating temperature for the VBPW34FASR is 100°C, making it suitable for various environments.
The angle of half sensitivity for this model is 65°, providing a broad detection field.
It is packaged in a reverse gullwing configuration suitable for surface mounting, and comes in tape and reel format for automated assembly.
The dark current for this photodiode is low at 2nA, which helps minimize noise during operation.
The breakdown voltage for the VBPW34FASR is 60V, allowing reliable operation in demanding circuits.
It complies with the automotive standard AEC-Q101, ensuring reliability in automotive applications.
The radiant sensitive area of the VBPW34FASR is 7.5 mm², which enhances its sensitivity to infrared light.
The minimum operating temperature is -40°C, making it suitable for a wide range of applications.
It is suitable for applications such as IR remote control systems, air data transmissions, and other industrial IR sensing applications.
