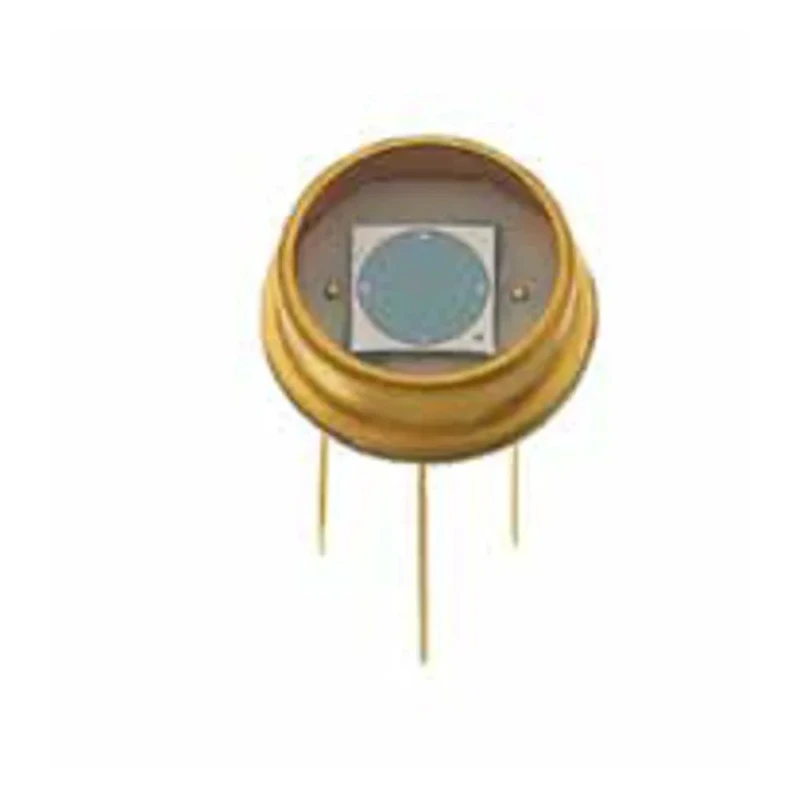

OSI Optoelectronics Infrared Photodiode PIN-5DPI, 65 ° Angle, Through Hole TO-5 Package PIN-5DPI
Specifications
| Country of Origin | United States |
|---|---|
| Diameter | 9.14mm |
| Brand | OSI Optoelectronics |
| Height | 4.572mm |
| Length | 8.255mm |
| Model | PIN-5DPI |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | DP |
| Maximum Operating Temperature | 85°C |
| Package Type | TO-5 |
| Minimum Operating Temperature | -25°C |
| Polarity | Forward |
| Dark Current | 1nA |
| Standards/Approvals | RoHS |
| Number of Pins | 3 |
| Typical Rise Time | 60ns |
| Typical Fall Time | 0.6ns |
| Wavelength of Peak Sensitivity | 970nm |
| Spectrums Detected | Infrared |
| Breakdown Voltage | 30V |
| Minimum Wavelength Detected | 350nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 65 ° |
Key Features
- Detects infrared spectrum with peak sensitivity at 970nm.
- Equipped with 3 pins and through hole mounting type for secure PCB integration.
- Supports a wavelength range from 350nm to 1100nm.
- Exhibits fast response times with typical rise time of 60ns and fall time of 0.6ns.
- Operates reliably between -25°C and 85°C for various environmental conditions.
- Features low dark current of 1nA and a breakdown voltage of 30V for stable operation.
- Complies with RoHS standards ensuring environmental safety and quality.
- Compact dimensions of 9.14mm diameter and 8.255mm length in TO-5 package.
Product Description
OSI Optoelectronics PIN-5DPI Infrared Photodiode is engineered for precise infrared light detection with a wide dynamic range and high sensitivity. Featuring a 65° angle of half sensitivity and a robust through hole TO-5 package, this photodiode is ideal for electronic and industrial applications requiring reliable and stable infrared sensing.
The device detects light in the infrared spectrum with a peak sensitivity at 970nm, covering wavelengths from 350nm to 1100nm. Its fast response is demonstrated by a typical rise time of 60ns and fall time of 0.6ns, enabling accurate and swift signal detection in communication and sensing systems.
With a low dark current of 1nA and a breakdown voltage of 30V, the PIN-5DPI offers low noise operation and durability. It operates efficiently within a temperature range from -25°C to 85°C, ensuring functionality in diverse environments.
The photodiode is RoHS compliant, supporting environmentally conscious manufacturing. Its dimensions of 9.14mm diameter, 8.255mm length, 5mm width, and 4.572mm height in the TO-5 package make it suitable for compact assemblies.
Typical applications include optical communication systems, industrial sensing, and electronic components requiring accurate infrared light detection. Detects infrared spectrum with peak sensitivity at 970nm. Equipped with 3 pins and through hole mounting type for secure PCB integration.
Supports wavelength range from 350nm to 1100nm. Fast response times: typical rise time 60ns, fall time 0.6ns. Operates between -25°C and 85°C environmental temperatures. Low dark current of 1nA and breakdown voltage of 30V for stable operation.
RoHS compliant ensuring quality and environmental safety. Compact TO-5 package dimensions suitable for various applications. Manufactured in the United States, guaranteeing quality standards. Explore EnvMart's selection of advanced Photodiodes and optoelectronic components for your electronics and industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The photodiode has a peak sensitivity at 970nm, making it suitable for detecting infrared light.
It operates reliably between -25°C and 85°C, allowing it to function in various environmental conditions.
This photodiode has a diameter of 9.14mm, a length of 8.255mm, a width of 5mm, and a height of 4.572mm.
It exhibits a typical rise time of 60ns and a fall time of 0.6ns, enabling quick signal detection.
The dark current for this photodiode is 1nA, which contributes to its low noise operation.
The breakdown voltage is 30V, ensuring stable operation under various conditions.
This model is equipped with 3 pins for secure PCB integration.
It supports a wavelength range from 350nm to 1100nm, making it versatile for different applications.
Yes, it complies with RoHS standards, ensuring environmental safety and quality.
This model features a through hole mounting type, facilitating secure integration into circuits.
Typical applications include optical communication systems, industrial sensing, and electronic components requiring infrared light detection.
It is manufactured in the United States, ensuring adherence to quality standards.
