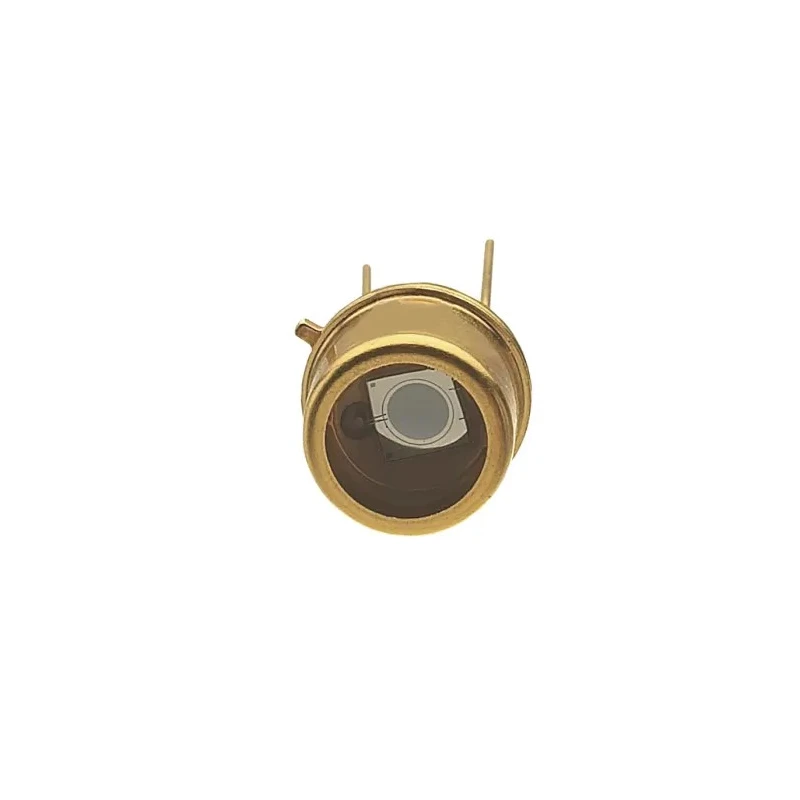

OSI Optoelectronics Infrared Photodiode, Through Hole TO-5 Package, 65° Angle of Half Sensitivity PIN-5DP

OSI Optoelectronics PIN-5DP infrared photodiode features a high-speed response and low dark current suitable for precision optical sensing applications. Packaged in a durable through hole TO-5 metal can, this device offers reliable infrared detection within a 65° angle of half sensitivity. It operates effectively over a temperature range from -40°C to 100°C, ensuring stability in demanding environments.

The photodiode exhibits peak wavelength sensitivity at 970nm and a broad detection range spanning from ultraviolet (350nm) to near-infrared (1100nm), making it versatile for various infrared sensing tasks.

With a typical rise time of 60ns and a fall time of 0.6ns, the PIN-5DP is optimized for high-speed optical communications, pulse detection systems, barcode readers, optical remote controls, and medical instrumentation requiring precise photometric measurements.

The device features low dark current at 5nA and reverse polarity operation with a 30V breakdown voltage that enhances device protection against electrical stress. The compact TO-5 package includes 2 pins and measures approximately 9.14mm in diameter and 0.18 inches in height, enabling easy integration into electronic circuits.

The photodiode is supplied in tape & reel packaging suitable for automated manufacturing processes and complies with RoHS standards, indicating a lead-free, environmentally safe product.

Applications span industrial, laboratory, medical, and communications sectors where reliable infrared detection is critical. This product is manufactured in the United States, ensuring quality and provenance.

High speed response with 60ns typical rise time. Low capacitance and dark current of 5nA ensures low noise operation. Wide wavelength detection range from 350nm to 1100nm with peak sensitivity at 970nm. Robust operation over -40°C to 100°C with RoHS compliant construction.

Supplied in tape and reel packaging for automated assembly. Reverse polarity with 30V breakdown voltage ensures device protection. Compact dimensions with 9.14mm diameter and 65° half sensitivity angle enhance integration flexibility.

Ideal for pulse detection, optical communication, barcode readers, and high-speed photometry. Explore more OSI Optoelectronics Photodiodes and infrared sensing components in the EnvMart catalogue to meet your industrial and electronics manufacturing needs.
