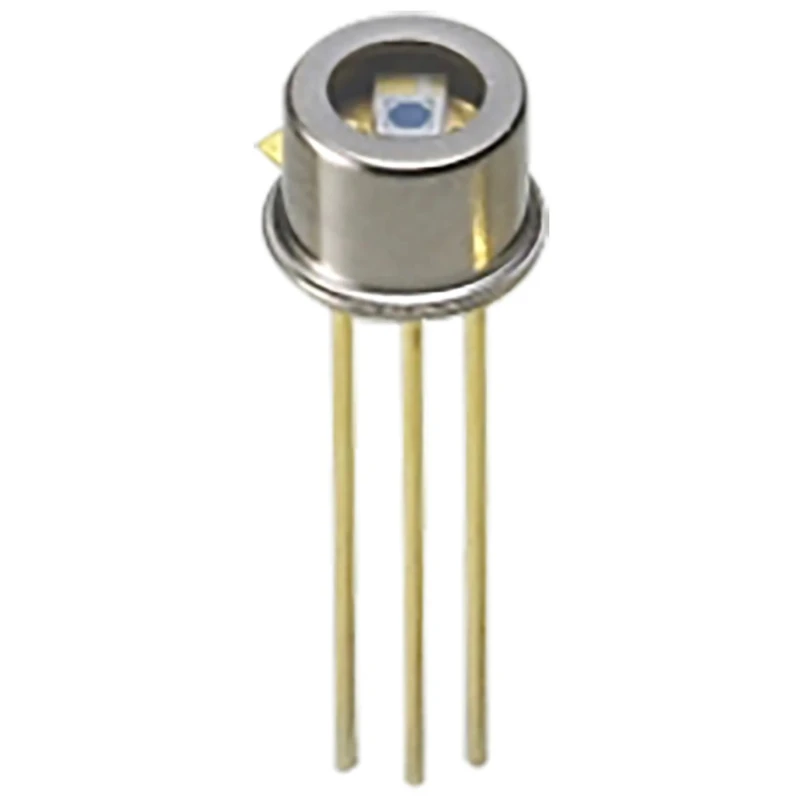

Hamamatsu Photonics Visible Light Infrared Photodiode 60 ° Half Sensitivity Through Hole TO-18 Package S5972
Specifications
| Country of Origin | Japan |
|---|---|
| Diameter | 5.4mm |
| Brand | Hamamatsu Photonics |
| Height | 3.6mm |
| Length | 8.2mm |
| Model | S5972 |
| Packaging | Tape & Reel |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | S5972 |
| Short Circuit Current | 0.42μA |
| Maximum Operating Temperature | 85°C |
| Package Type | TO-18 |
| Minimum Operating Temperature | -25°C |
| Polarity | Positive |
| Dark Current | 0.1nA |
| Standards/Approvals | RoHS |
| Number of Pins | 3 |
| Typical Fall Time | 0.6ns |
| Wavelength of Peak Sensitivity | 800nm |
| Spectrums Detected | Visible Light, Infrared |
| Breakdown Voltage | 25V |
| Minimum Wavelength Detected | 320nm |
| Maximum Wavelength Detected | 1000nm |
| Angle of Half Sensitivity | 60 ° |
Key Features
- Designed for visible and infrared wavelength detection from 320nm to 1000nm.
- Peak sensitivity wavelength at 800nm for optimal optical performance.
- Package type is TO-18 metal with through-hole mounting suitable for robust applications.
- Features high speed response with typical rise and fall times of 0.6ns each.
- Low dark current of 0.1nA and short circuit current of 0.42μA for precise sensing.
- Operating temperature range from -25°C to 85°C supporting diverse environments.
- RoHS compliant ensuring environmentally friendly construction.
- Polarity is positive with a breakdown voltage of 25V.
Product Description
Hamamatsu Photonics S5972 Visible Light Infrared Photodiode in a TO-18 through hole metal package delivers high reliability and wide spectral detection capabilities from visible light to near infrared, with a peak wavelength sensitivity at 800nm. This photodiode operates effectively within temperatures from -25°C to 85°C, making it suitable for various industrial, laboratory, and communications applications such as optical fibre communication and high speed photometry.
The device features a 60 ° angle of half sensitivity, ensuring focused and efficient light detection. Its standard package dimensions (8.2mm length, 6mm width, 3.6mm height, and 5.4mm diameter) form a compact, robust sensor ideal for through-hole mounting on PCBs. It offers low dark current of 0.1nA and a short circuit current of 0.42μA, providing sensitive and precise photodetection performance.
The typical rise and fall times are both 0.6ns, ensuring rapid response suitable for high-speed optical measurements. Compliance with RoHS directives confirms the environmental safety of this photodiode. The device is supplied in tape and reel packaging, facilitating automated manufacturing processes in electronics assembly.
Applications include industrial optical sensors, laboratory instrumentation, fiber optic communication systems, and other electronic devices requiring reliable visible to near-infrared light detection. Manufactured in Japan, this Hamamatsu S5972 photodiode combines precision, speed, and durability for advanced photodetection tasks.
Wavelength detection range from 320nm to 1000nm with peak at 800nm. TO-18 through-hole metal package design for easy PCB integration. High-speed response with 0.6ns rise and fall times. Robust operation from -25°C to 85°C ambient temperatures.
Low leakage with dark current at 0.1nA and short circuit current 0.42μA. RoHS compliant and environmentally friendly. Polarity positive with a breakdown voltage of 25V. Compact dimensions: 8.2mm length, 6mm width, 3.6mm height, 5.4mm diameter.
Angle of half sensitivity 60 ° to focus detection. Packaging suitable for automated assembly: tape and reel. Explore more components and Photodiodes by Hamamatsu Photonics in EnvMart's Electronics Components category for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The photodiode detects wavelengths from 320nm to 1000nm, with peak sensitivity at 800nm.
This model operates effectively within a temperature range of -25°C to 85°C.
It comes in a TO-18 metal package designed for through-hole mounting.
The typical rise and fall times are both 0.6ns, ensuring a high-speed response.
The dark current is specified at 0.1nA, allowing for precise sensing performance.
The short circuit current is 0.42μA, providing sensitive photodetection capabilities.
The angle of half sensitivity is 60°, which helps in focused light detection.
The dimensions are 8.2mm in length, 6mm in width, and 3.6mm in height, with a diameter of 5.4mm.
Yes, the S5972 is RoHS compliant, ensuring it meets environmental safety standards.
The polarity is positive, and it has a breakdown voltage of 25V.
It is supplied in tape and reel packaging, suitable for automated assembly processes.
This photodiode is suitable for applications such as optical fiber communication, industrial optical sensors, and laboratory instrumentation.
