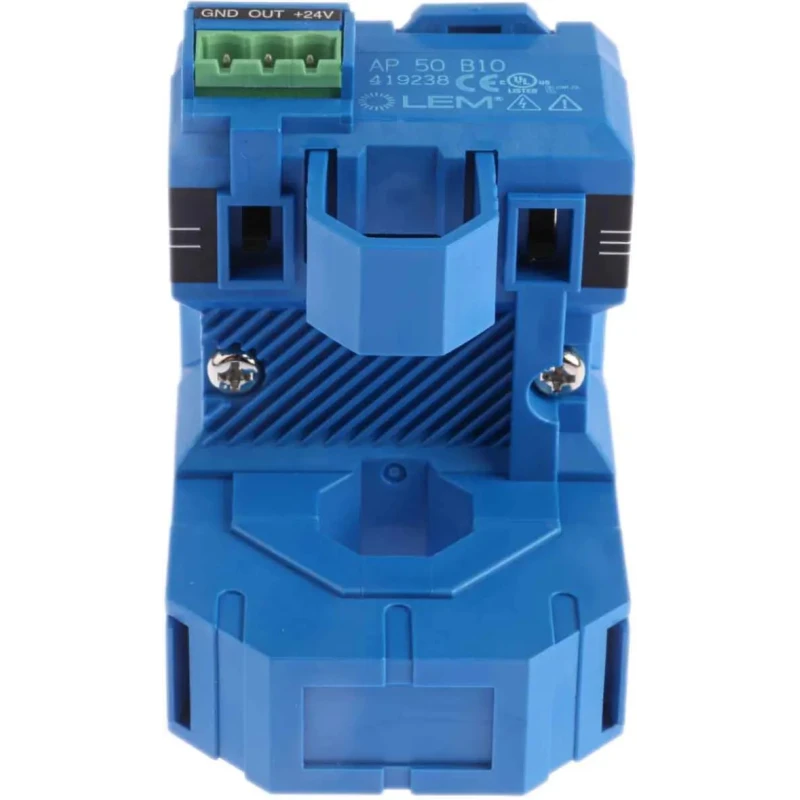

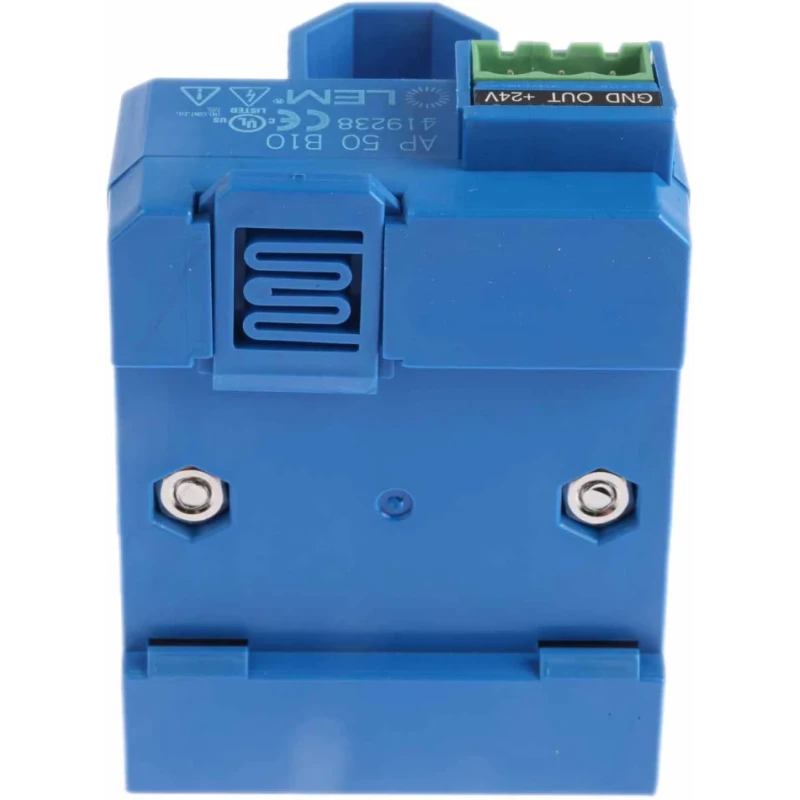

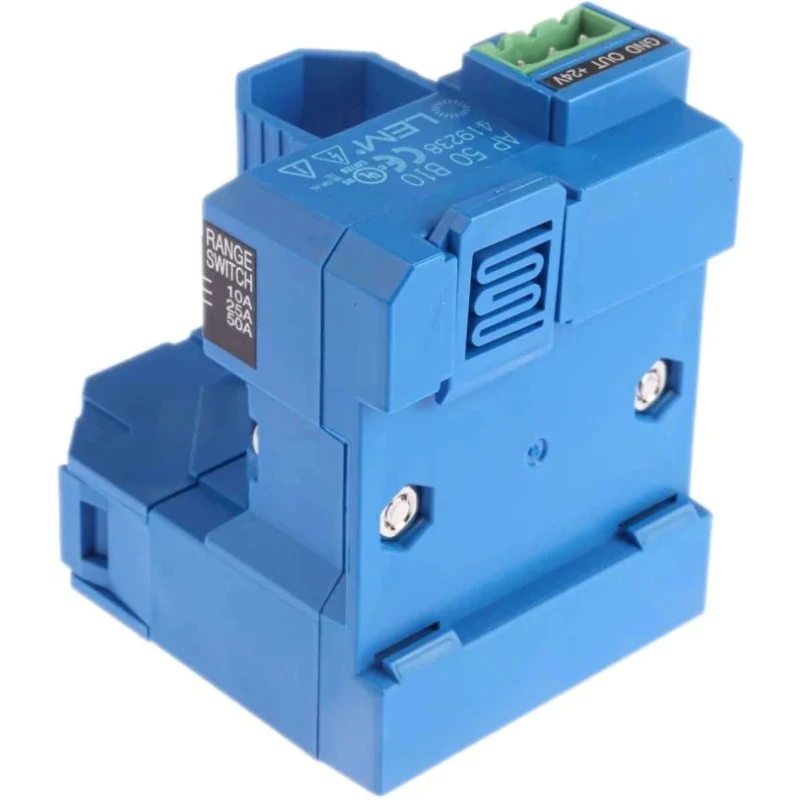

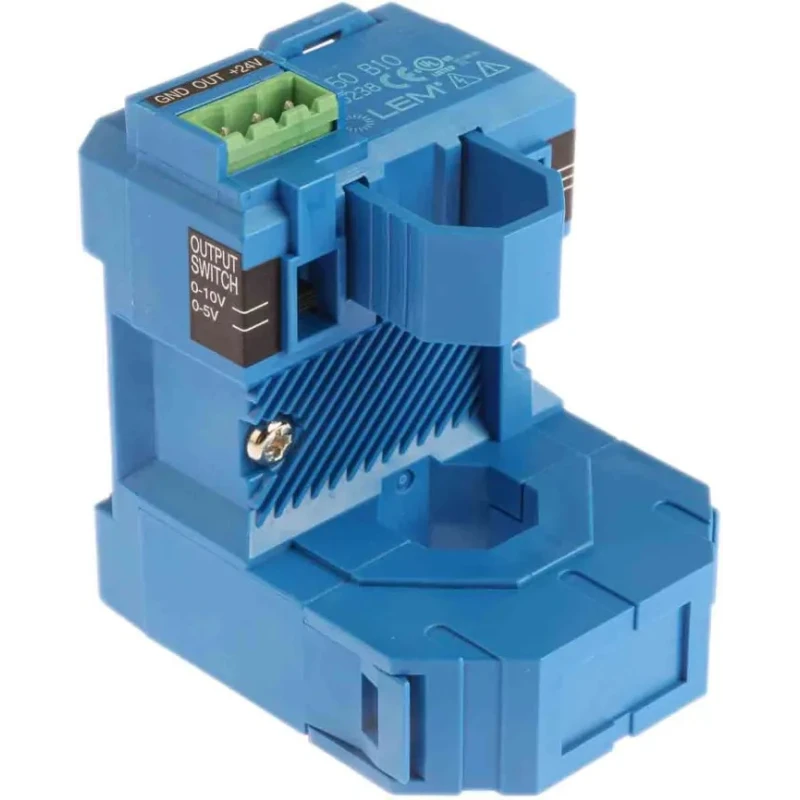

LEM AP-B10 Series Current Transformer 50 A 24V DC 18mm Bore AP 50 B10

LEM AP 50 B10 Current Transformer is a high-performance split core AC current transducer from the AP-B10 series, designed for precise RMS current measurement using proprietary PriME technology. It supports a primary current rating of 50A with a supply voltage of 24V DC and features an 18mm bore diameter, making it ideal for industrial and process control applications.

The sensor’s design ensures extremely low weight and compact size (69mm length, 33.5mm width, 21mm depth), facilitating retrofitting in existing electrical systems. Its split core mechanism allows installation without disconnecting the conductor, enhancing ease of maintenance.

This current transformer offers selectable output signals such as 0-5V, 0-10V, and 4-20mA, providing flexibility to interface with diverse industrial control systems. It supports mounting on DIN rails or panels, suiting varied industrial automation environments.

Operating reliably within temperatures from -20°C to 60°C and frequencies ranging from 30Hz to 2000Hz, this device meets stringent standards UL 94-V0 and IEC 61010-1, ensuring safety and performance compliance.

Applications include industrial automation, electrical process control, power monitoring, and energy management systems where precise current sensing is critical. The AP-B10 Series uses proprietary PriME technology for accurate RMS sensing.

Split core design enables easy retrofitting and installation. Multiple output options available including 0-5V, 0-10V, and 4-20mA. DIN rail and panel mounting options suit various industrial setups. Operating temperature range from -20°C to 60°C ensures durability in demanding environments.

Compact and lightweight construction simplifies installation. High frequency operation up to 2000Hz supports diverse applications. Compliance with UL 94-V0 and IEC 61010-1 standards assures safety. Explore more Current Transformers and industrial electrical components in the Electronics & Electricals category at EnvMart for your measurement and control needs.
