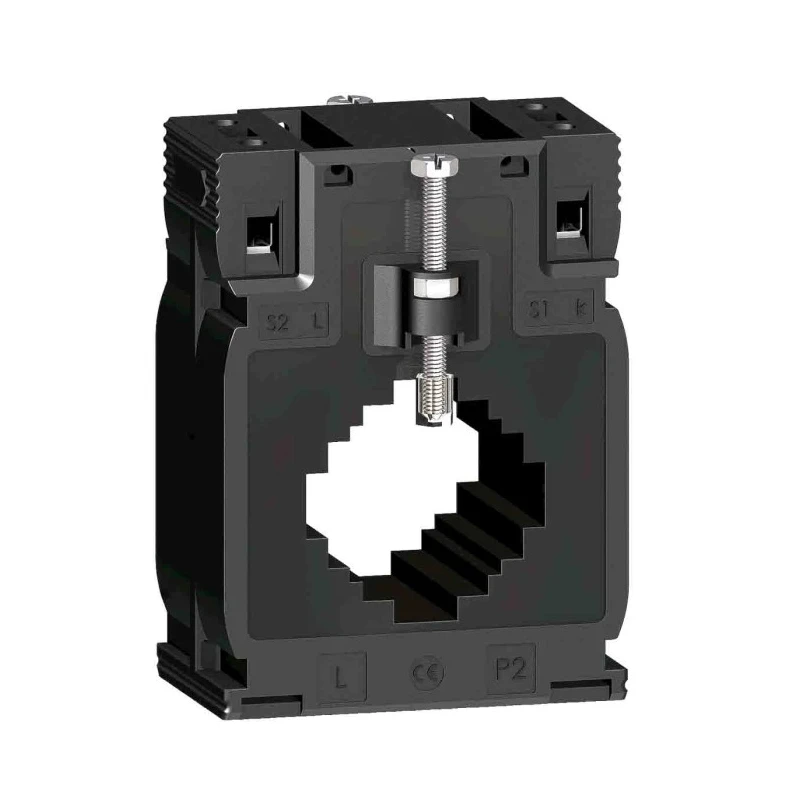

Schneider Electric PowerLogic Series Current Transformer 800 A 800:5 32mm Bore METSECT5MC080
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Model | METSECT5MC080 |
| Depth | 45mm |
| Gross Weight | 499g |
| Width | 70mm |
| Mount Type | Clip-on, DIN Rail, Screw, Busbar |
| Series | PowerLogic |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Bore Diameter | 32mm |
| Secondary current | 5A |
| Standards/Approvals | CE, IEC 61869-2, VDE 0414 |
| Better World Claim | Designed for Disassembly |
| Primary Current | 800A |
| Turns Ratio | 800:5 |
| 800 | 5 |
| Turns Ratio800 | 5 |
| Schneider Electric PowerLogic Series Current Transformer 800 A 800 | 5 32mm Bore |
Key Features
- PowerLogic Series offers reliable and accurate current transformation.
- 800 A primary and 5 A secondary current ratio ensures precise electrical measurement.
- 32mm bore diameter suitable for bus bar mounting applications.
- Mounting options include clip-on, DIN rail, screw, and busbar for flexible installation.
- Operating temperature range from -25°C to 60°C for diverse environments.
- Compact dimensions with 70mm width and 45mm depth for easy integration.
- Compliance with CE, IEC 61869-2, and VDE 0414 standards for safety and quality.
- Class 0.5 accuracy at 3 V AC and Class 1 at 5 V AC, suitable for precise electrical monitoring.
Product Description
Schneider Electric METSECT5MC080 current transformer from the PowerLogic Series features an 800 A primary current and 5 A secondary current rating with a 32mm bore diameter designed for bus bar mounting and electrical measurement applications.
This current transformer provides high accuracy with Class 0.5 at 3 V AC and Class 1 at 5 V AC, making it ideal for industrial, commercial, and electrical automation systems requiring precise current monitoring and control.
Suitable for mounting on DIN rail, clip-on, screw, or busbar, it supports flexible installation options. The device operates reliably within a temperature range of -25°C to 60°C, offering robustness in varied environmental conditions.
Compliant with recognized standards such as CE, IEC 61869-2, and VDE 0414, this transformer meets global safety and performance requirements. Its Class B electrical insulation and sealed design ensure long-term resilience and operational safety.
The compact design with dimensions of 70mm width and 45mm depth alongside a lightweight of 499 grams facilitates easy integration within control panels and electrical systems. Additionally, it is a Better World product designed for disassembly, highlighting Schneider Electric's commitment to sustainability and environmentally responsible manufacturing.
PowerLogic Series current transformer with 800 A/5 A ratio. 32mm bore diameter for accurate current sensing. Multiple mounting options including DIN rail and busbar. Wide operating temperature range from -25°C to 60°C. Compliance with CE, IEC 61869-2, and VDE 0414 standards.
Class 0.5 accuracy at 3 V AC and Class 1 at 5 V AC. Class B electrical insulation and sealed construction. Compact size (70mm width × 45mm depth) and lightweight (499 g). Designed for disassembly to support sustainability.
This current transformer is ideal for electrical power monitoring, industrial automation, and process control applications where accuracy and reliability are critical. Explore more Schneider Electric PowerLogic products and Current Transformers at EnvMart for comprehensive electrical and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary current rating of this current transformer is 800 A.
The secondary current output of this model is 5 A.
The bore diameter of the METSECT5MC080 is 32 mm, suitable for bus bar mounting applications.
This current transformer can be mounted using clip-on, DIN rail, screw, or busbar options, providing flexible installation.
The operating temperature range for this unit is from -25°C to 60°C.
This current transformer achieves Class 0.5 accuracy at 3 V AC and Class 1 accuracy at 5 V AC.
The dimensions of the METSECT5MC080 are 70 mm in width and 45 mm in depth.
This current transformer complies with CE, IEC 61869-2, and VDE 0414 standards for safety and quality.
The METSECT5MC080 weighs 499 grams.
The 'Designed for Disassembly' claim indicates that this current transformer is manufactured with sustainability in mind, facilitating easier recycling and maintenance.
This current transformer is suitable for electrical power monitoring, industrial automation, and process control applications that require precise current measurement.
This unit features Class B electrical insulation, ensuring reliable performance in various operating conditions.
