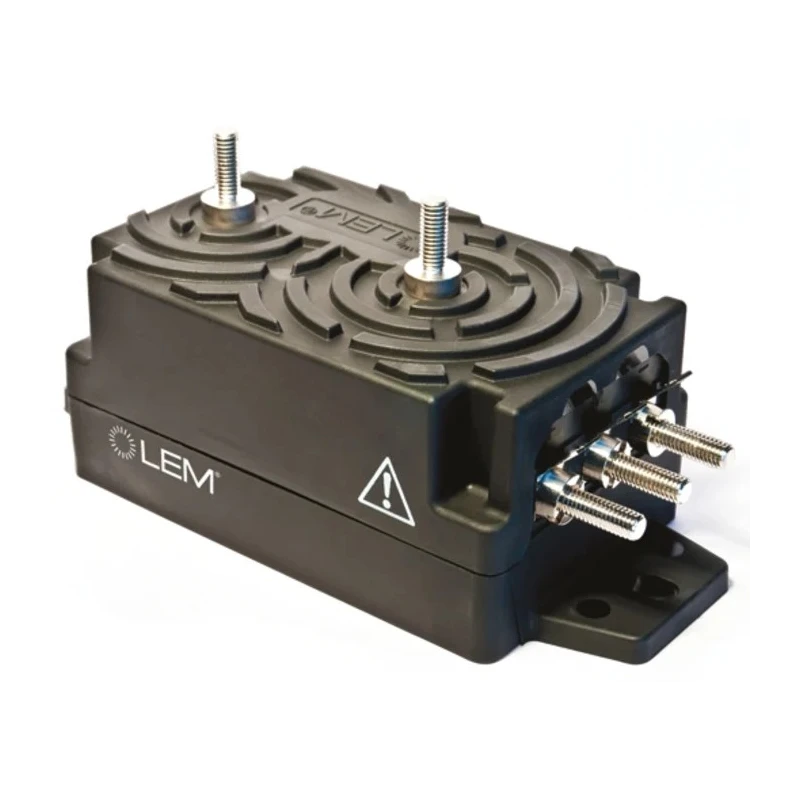

LEM DVL Series Current Transformer 23W 15V - 15V 24V Panel Mount DVL 250

LEM DVL 250 Current Transformer is a highly reliable panel-mounted device designed for precise measurement of DC, AC, and pulsed currents with galvanic isolation between primary and secondary circuits. With a power rating of 23W and supply voltage options of 15V, - 15V, and 24V, it adapts well to various industrial and traction applications.

The compact design, measuring 48.3mm in length, 63mm in width, and 100mm in depth, allows integration in space-constrained control panels. Its low primary DC resistance of 2.7 milliohms ensures minimal power loss during operation.

Certified to international standards including UL, CE, and several EN norms (50121-3-2, 50124-1, 50155, 50178), the DVL 250 offers safety and conformity required in demanding environments.

The transformer supports frequency operation from 2 Hz through 14 kHz, making it suitable for a spectrum of electronic measurement and control applications. It features wire terminals with M5 studs for secure and reliable connections. The operating temperature range is wide, from - 40°C to 85°C, ensuring performance in harsh environments.

Accurate current measurement with galvanic isolation. Flexible supply voltages of 15V, - 15V, and 24V. Robust panel mount design with compact dimensions. Compliance with multiple international safety standards. Wide frequency operation from 2 Hz to 14 kHz.

Low primary DC resistance of 2.7 mΩ. Secondary current rated at 50 mA for sensitive signaling. Operates reliably over a broad temperature range. Secure wire terminal connections with M5 studs.

This current transformer is ideal for industrial, traction (fixed and onboard), and process control applications requiring precise current measurement with durable and certified hardware.
