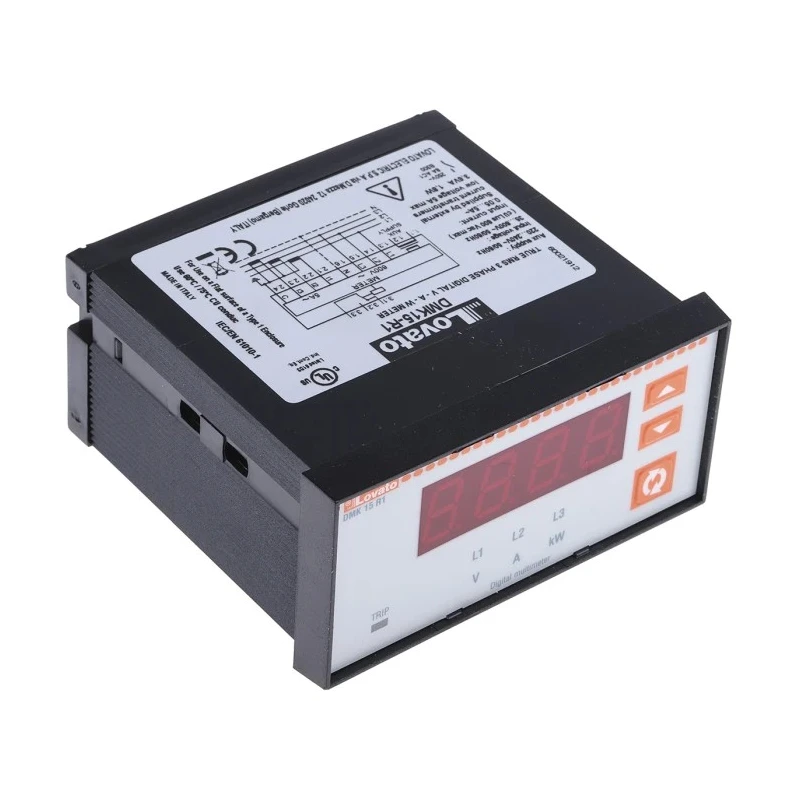

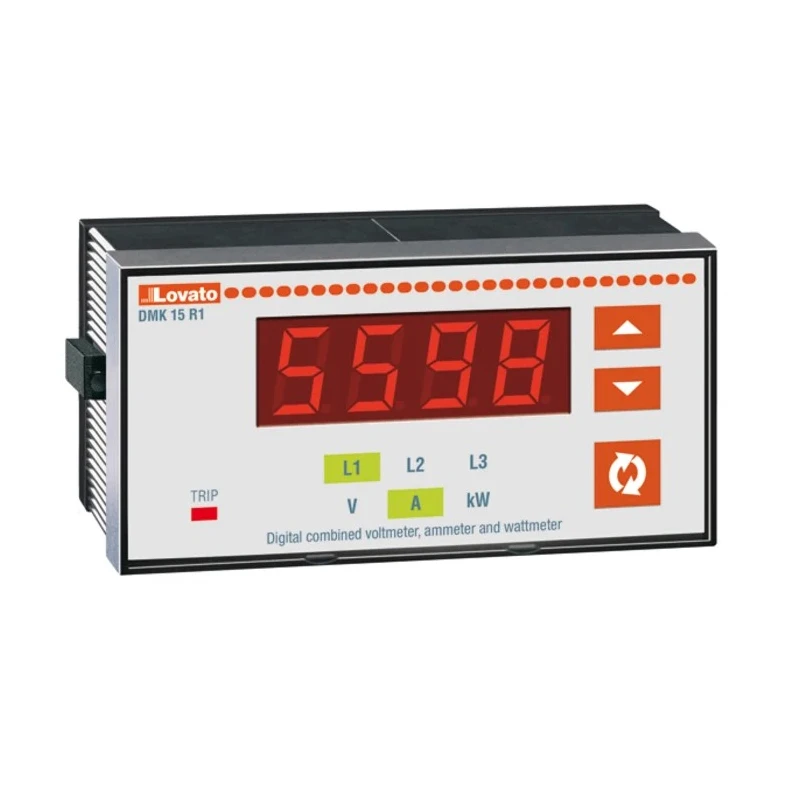

Lovato Digital Panel Multifunction Meter Voltage Power Current LED Display 45mm x 91mm DMK15R1
Specifications
| Country of Origin | Italy |
|---|---|
| Display Type | LED |
| Brand | Lovato |
| Model | DMK15R1 |
| Depth | 105mm |
| Series | DMK |
| Maximum Operating Temperature | 60°C |
| Meter Type | Digital |
| Number Of Digits | 4 |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | UL, CSA, IEC |
| Properties Measured | Voltage, Power, Current |
| Cutout Height | 45mm |
| Cutout Width | 91mm |
Key Features
- Measures voltage, power, and current simultaneously for comprehensive electrical monitoring.

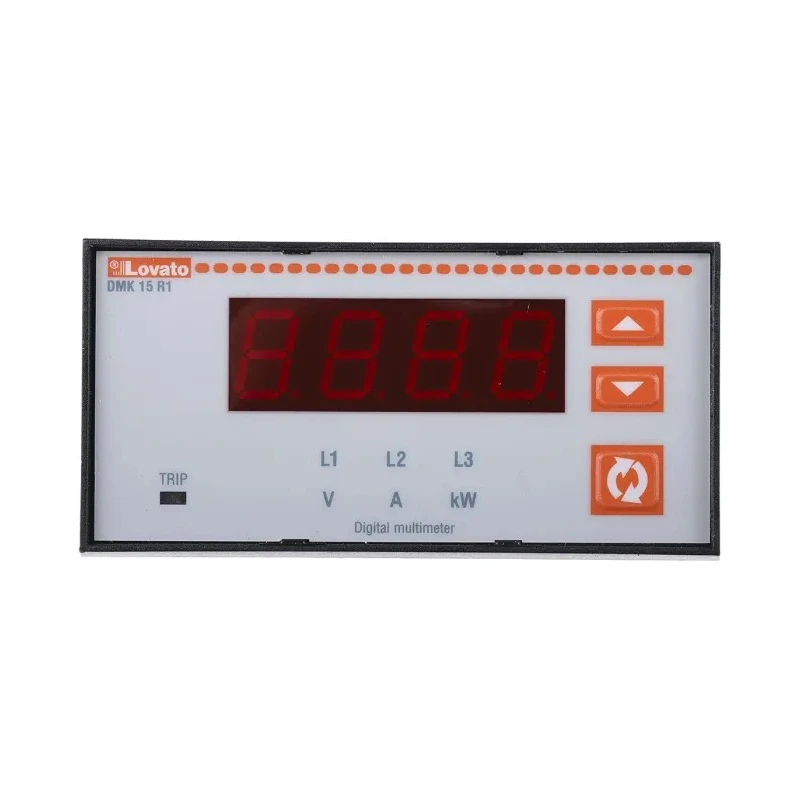

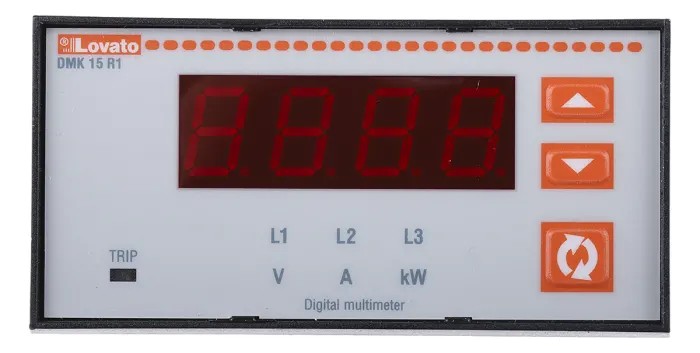

- Highly visible LED display with 4-digit resolution for accurate readings.
- Suitable for operating temperatures from -20°C to 60°C.
- Supports true RMS measurement ensuring accuracy under varying load conditions.
- Overload capacity of +20% increases reliability in demanding industrial environments.
- Phase-phase voltage measurement range of 35V to 660V AC and phase-neutral range of 20V to 382V AC.
- Compact panel mount design with a cutout dimension of 45 mm height and 91 mm width.

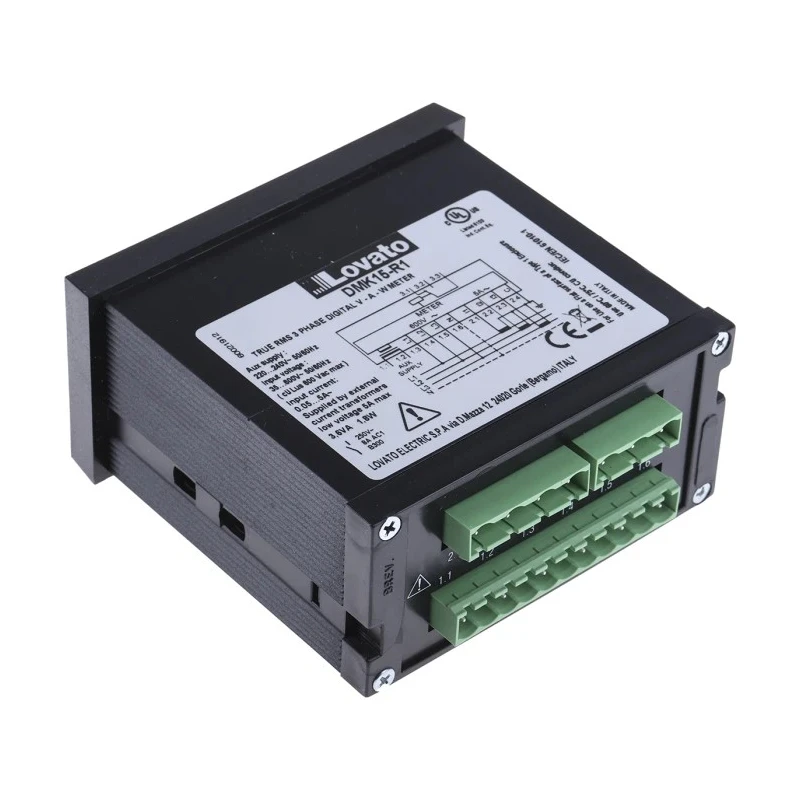

- Removable terminals enable easy installation and maintenance.
Product Description
Lovato DMK15R1 is a digital panel multifunction meter designed for industrial and automation applications where precise monitoring of electrical parameters is critical. Featuring an LED display, this meter simultaneously measures voltage, power, and current, providing accurate data essential for energy management and electrical system monitoring.
The meter is engineered to operate reliably in temperature ranges from -20°C to 60°C, making it suitable for diverse environments.
Its true RMS measurement capability ensures accurate readings even with non-linear loads. The device supports phase-phase voltage inputs from 35V to 660V AC and phase-neutral inputs from 20V to 382V AC, accommodating a wide range of voltage levels.
Installation is simplified by the compact panel cutout dimensions of 45 mm height and 91 mm width, along with removable terminals. Designed to operate between 45 Hz and 66 Hz frequencies, the meter handles industrial power systems efficiently and features an overload capacity of +20% for enhanced durability.
Lovato DMK15R1 is certified to UL, CSA, and IEC safety standards, ensuring it meets international quality benchmarks. Measures voltage, power, and current simultaneously for comprehensive electrical monitoring. Highly visible LED display with 4-digit resolution for accurate readings.
Suitable for operating temperatures from -20°C to 60°C. Supports true RMS measurement ensuring accuracy under varying load conditions. Overload capacity of +20% increases reliability in demanding industrial environments.
Phase-phase voltage measurement range of 35V to 660V AC and phase-neutral range of 20V to 382V AC. Compact panel mount design with a cutout dimension of 45 mm height and 91 mm width. Removable terminals enable easy installation and maintenance.
Compliance with UL, CSA, and IEC standards ensures safety and quality.
This digital panel multifunction meter is ideal for industrial automation, electrical panel instrumentation, energy management systems, and process control applications where precise and reliable electrical parameter measurement is required.
Explore more Lovato products and Panel Meters in the Industrial Machines & Instruments category on EnvMart for comprehensive solutions to your monitoring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This digital panel multifunction meter can measure voltage, power, and current simultaneously, providing comprehensive electrical monitoring.
The phase-phase voltage measurement range for this model is from 35V to 660V AC.
The phase-neutral voltage measurement range is from 20V to 382V AC.
It operates reliably within a temperature range of -20°C to 60°C.
The DMK15R1 features a highly visible LED display with a 4-digit resolution for accurate readings.
The cutout dimensions required for panel mounting are 45 mm in height and 91 mm in width.
It has an overload capacity of +20%, enhancing its reliability in demanding industrial environments.
This model is designed to operate efficiently between 45 Hz and 66 Hz frequencies.
It is certified to UL, CSA, and IEC safety standards, ensuring it meets international quality benchmarks.
In addition to the cutout dimensions, the overall depth of this model is 105 mm.
Installation is made easier with removable terminals, allowing for straightforward setup and maintenance.
This digital panel multifunction meter is ideal for industrial automation, electrical panel instrumentation, energy management systems, and process control applications.
