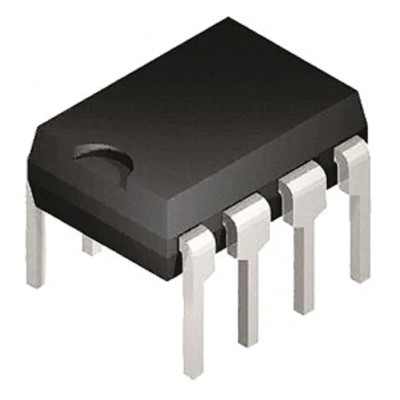

Broadcom Isolation Amplifier, 8-Pin 5.5V DIP-8 HCPL-7800A-000E

Free Delivery in India | Lowest Global Shipping Charges

Broadcom Isolation Amplifier, 8-Pin 5.5V DIP-8 HCPL-7800A-000E

Name: Broadcom Isolation Amplifier, 8-Pin 5.5V DIP-8 HCPL-7800A-000E
Brand: Broadcom
SKU: 136822
Price: 12.82 USD
Availability: InStock



Category Isolation Amplifier Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Height	1.78mm
Length	9.8mm
Model	HCPL-7800A-000E
Mount Type	Surface, Through Hole
Series	HCPL-7800A
Maximum Operating Temperature	100°C
Package Type	DIP-8
Minimum Operating Temperature	-40°C
Number Of Channels	1
Standards/Approvals	UL 1577, IEC/EN/DIN EN 60747-5-2, CSA
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V
Vos - Input Offset Voltage	0.3 mV
CMRR - Common Mode Rejection Ratio	76dB

Key Features

This isolation amplifier supports single channel operation.
It features a common mode rejection ratio of 76dB for noise minimization.
Operating temperature range is from -40°C to 100°C ensuring durability.
Package includes 8 pins and supports surface and through hole mount types.
The device complies with UL 1577, IEC/EN/DIN EN 60747-5-2, and CSA standards for safety and reliability.
Its compact dimensions measure 9.8mm in length and 1.78mm in height.
The input offset voltage is low at 0.3 mV, supporting high precision applications.

Product Description

Broadcom HCPL-7800A-000E isolation amplifier is a high-precision semiconductor device designed for electrical isolation and signal conditioning in industrial and electronic applications. It features an 8-pin DIP-8 package with a supply voltage range between 4.5V minimum and 5.5V maximum, suitable for various electronic circuits requiring precise current and voltage sensing.

This isolation amplifier utilizes sigma-delta modulator technology enabling accurate measurement of phase currents and bus voltages in motor drives, power inverters, and other power electronics. It offers superior common mode rejection ratio of 76dB, which ensures minimal interference from high voltage transients, thereby increasing signal integrity.

The device supports both surface mount and through hole mounting, making it versatile for PCB integration across different manufacturing processes. Its operating temperature spans from -40°C to 100°C, accommodating harsh industrial environments.

Certified to meet rigorous UL 1577, IEC/EN/DIN EN 60747-5-2, and CSA safety standards, this isolation amplifier ensures robust isolation voltage up to 3750Vrms, providing built-in safety insulation for sensitive electronics and personnel protection.

Commonly used as an alternative to Hall Effect isolation amplifiers, the HCPL-7800A-000E serves well in current and voltage sensing tasks within power converters, industrial automation, and other sensor isolation applications.

Single channel high accuracy isolation amplifier device. 8-pin DIP-8 package with versatile mounting types. High common mode rejection ratio of 76dB for noise immunity. Wide operating temperature range: -40°C to 100°C. Meets global safety certifications UL 1577, IEC/EN/DIN EN 60747-5-2, and CSA.

Compact dimensions enable PCB space savings. Low input offset voltage of 0.3 mV supports precision measurement.

This product is ideal for industrial and electronic manufacturing sectors, including power electronics, motor drives, instrumentation, and automated control systems where reliable electrical isolation is crucial.

Explore more Isolation Amplifier solutions and related semiconductor components at EnvMart for your advanced electronics design needs.
