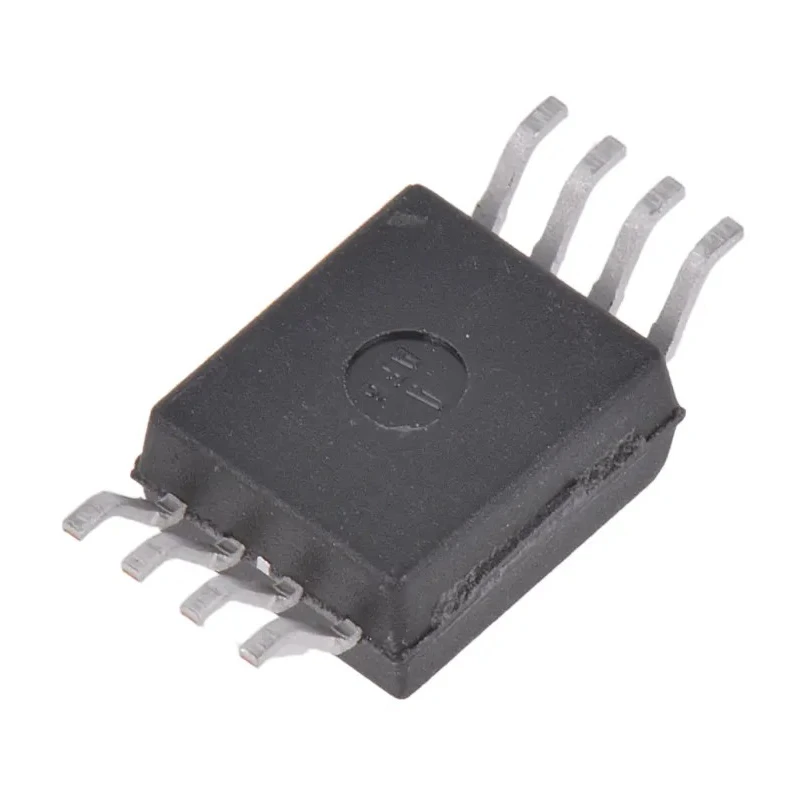

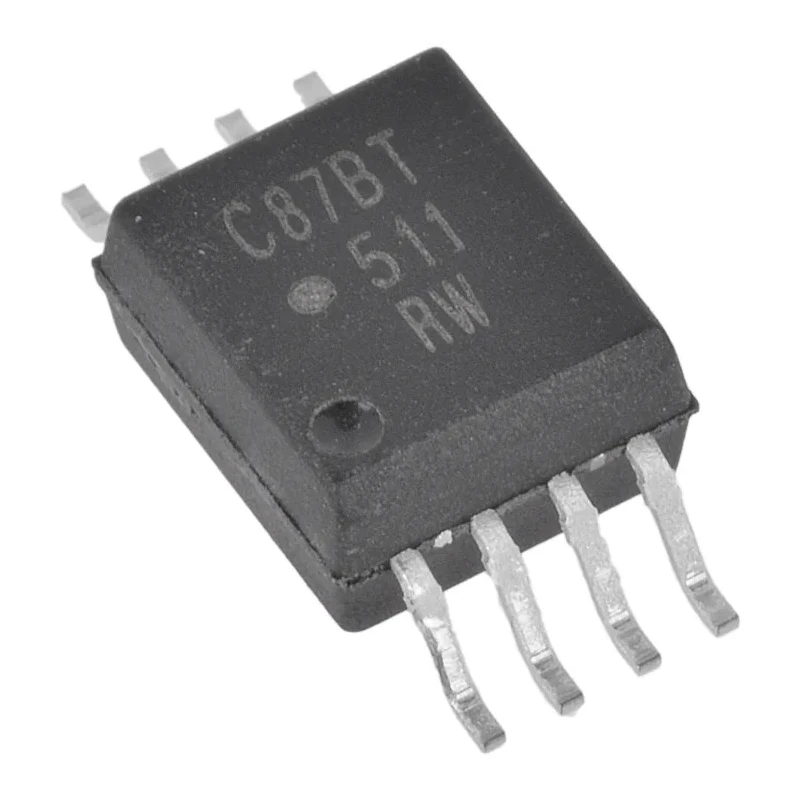

Broadcom Isolation Amplifier, 8-Pin SOIC, 3V-5.5V Supply, Precision Optically Isolated Voltage Sensor ACPL-C87BT-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 3.18mm |
| Length | 5.85mm |
| Model | ACPL-C87BT-000E |
| Mount Type | Surface |
| Series | ACPL-C870 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Vos - Input Offset Voltage | 9.9 mV |
| Isolation Type | Precision Optically Isolated Voltage Sensor |
Key Features
- Operates within a supply voltage range of 3V to 5.5V.
- Features precision optical isolation for high accuracy voltage sensing.
- Includes a single channel with 8-pin SOIC surface-mount package.
- Input offset voltage of 9.9 mV ensures low measurement error.
- Designed for operating temperatures from -40°C to 125°C.
- Compact dimensions of 5.85mm length and 3.18mm height.
- Offers high common mode rejection suitable for industrial applications.
- Ideal for motor drives, power inverters, and isolation circuits.
Product Description
Broadcom ACPL-C87BT-000E isolation amplifier is a highly precise optically isolated voltage sensor designed for industrial and electronic component applications. Housed in an 8-pin SOIC surface-mount package, it operates with a supply voltage range from 3V minimum to 5.5V maximum, providing reliable performance in harsh industrial environments.
With a single channel isolation and an input offset voltage of 9.9 mV, this amplifier ensures accurate voltage sensing with minimal signal distortion. Its precision optical isolation technology offers excellent common mode rejection, essential for isolating high voltages and eliminating unwanted noise in measurement circuits.
This device is suitable for use in motor drive systems, power inverters, and general isolation circuits where safety and signal integrity are critical. Operating temperatures range from -40°C to 125°C, allowing deployment across diverse industrial and commercial applications.
Compact dimensions of 5.85 mm length and 3.18 mm height allow easy integration into PCB designs. Despite not being qualified for automotive standards, it is highly reliable for industrial usage.
Operates within a supply voltage range of 3V to 5.5V. Features precision optical isolation for high accuracy voltage sensing. Includes a single channel with 8-pin SOIC surface-mount package. Input offset voltage of 9.9 mV ensures low measurement error.
Designed for operating temperatures from -40°C to 125°C. Compact dimensions of 5.85mm length and 3.18mm height. Offers high common mode rejection suitable for industrial applications. Ideal for motor drives, power inverters, and isolation circuits.
Series designation is ACPL-C870. Explore more products in the Isolation Amplifiers category for solutions tailored to your electronic design and industrial sensing needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 3V to 5.5V.
This model has compact dimensions of 5.85 mm in length and 3.18 mm in height.
The input offset voltage is 9.9 mV, ensuring low measurement error.
It is designed to operate at a maximum temperature of 125°C.
This isolation amplifier includes a single channel.
It is housed in an 8-pin SOIC surface-mount package.
The minimum operating temperature is -40°C.
It features precision optical isolation for high accuracy voltage sensing.
It is ideal for use in motor drives, power inverters, and general isolation circuits.
It offers high common mode rejection, suitable for industrial applications.
This model has a pin count of 8.
The country of origin for this product is India.
