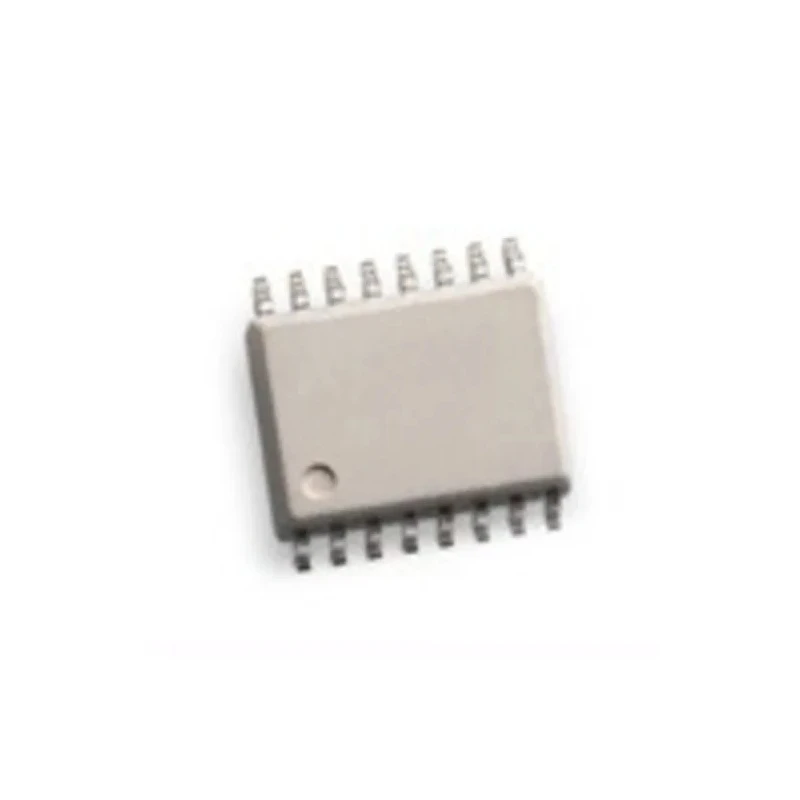

Broadcom DC Input Optocoupler Surface Mount, 16-Pin SO Package, 1 Channel, HCPL-316J-500E

Free Delivery in India | Lowest Global Shipping Charges

Broadcom DC Input Optocoupler Surface Mount, 16-Pin SO Package, 1 Channel, HCPL-316J-500E

Name: Broadcom DC Input Optocoupler Surface Mount, 16-Pin SO Package, 1 Channel, HCPL-316J-500E
Brand: Broadcom
SKU: 419941
Price: 5.78 USD
Availability: InStock



Category Optocoupler Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Model	HCPL-316J-500E
Packaging	Tube/Tape & Reel
Mount Type	Surface
Series	HCPL
Maximum Operating Temperature	100°C
Package Type	SO
Minimum Operating Temperature	-40°C
Maximum input current	400mA
Number Of Channels	1
Standards/Approvals	UL, CSA, IEC/EN/DIN EN 60747-5-5
Number of Pins	16
Input Current Type	DC
Typical Rise Time	0.1μs
Wide Operating VCC Range	15 to 30 Volts

Key Features

Operates with a wide VCC range of 15 to 30 volts.
Supports maximum input current of 400 mA DC for robust drive capability.
Compact SO-16 surface mount package for efficient PCB designs.
Features fast switching times with 0.1 microsecond rise and fall times.
Includes integrated desaturation detection and fault status feedback for safe IGBT operation.
Operating temperature range from -40°C to 100°C for industrial environments.
Compliant with UL, CSA, and IEC/EN/DIN EN 60747-5-5 standards ensuring high reliability.
Supports CMOS/TTL logic compatible output for easy interfacing.

Product Description

Broadcom HCPL-316J-500E is a DC Input Optocoupler designed for surface mount applications, provided in a 16-Pin SO package, featuring a single channel for isolated gate drive solutions. It operates within a VCC range of 15 to 30 volts and supports a maximum input current of 400 mA DC, making it ideal for industrial power electronics.

This optocoupler offers fast switching capabilities with typical rise and fall times of 0.1 microseconds, enabling efficient high-speed operation. It integrates advanced features such as desaturation (VCE) detection and fault status feedback for fail-safe IGBT protection and control, enhancing robustness in motor drives and inverter systems.

With an operating temperature range from -40°C to 100°C, it suits demanding industrial environments. This device complies with UL, CSA, and IEC/EN/DIN EN 60747-5-5 certification standards, ensuring reliable performance under various conditions.

Applications include isolated gate drives for IGBT and MOSFET devices in AC and brushless DC motor drives, industrial inverters, switch mode power supplies (SMPS), and uninterruptible power supplies (UPS). The SO-16 surface mount package supports compact PCB layouts and flexible mounting.

Wide VCC operating range of 15 to 30 volts for versatile use. Maximum 400 mA DC input current capacity for high drive strength. Fast 0.1 microsecond rise and fall times for rapid switching. Integrated desaturation detection and fault feedback for IGBT protection.

Operating temperature from -40°C to 100°C for industrial reliability. Compliance with UL, CSA, IEC/EN/DIN EN 60747-5-5 safety standards. CMOS/TTL compatible logic output for easy system integration. Single channel configuration in a compact surface mount SO-16 package.

Suitable for motor drives, inverters, SMPS, and UPS applications. Packaging available in tube, tape, and reel formats for manufacturing flexibility.

This Broadcom Optocoupler series is engineered to provide compact and affordable gate drive solutions with integrated fault protection, meeting the needs of advanced industrial and commercial power electronics. Browse the Electronics Components category at EnvMart for related products and comprehensive solutions.
