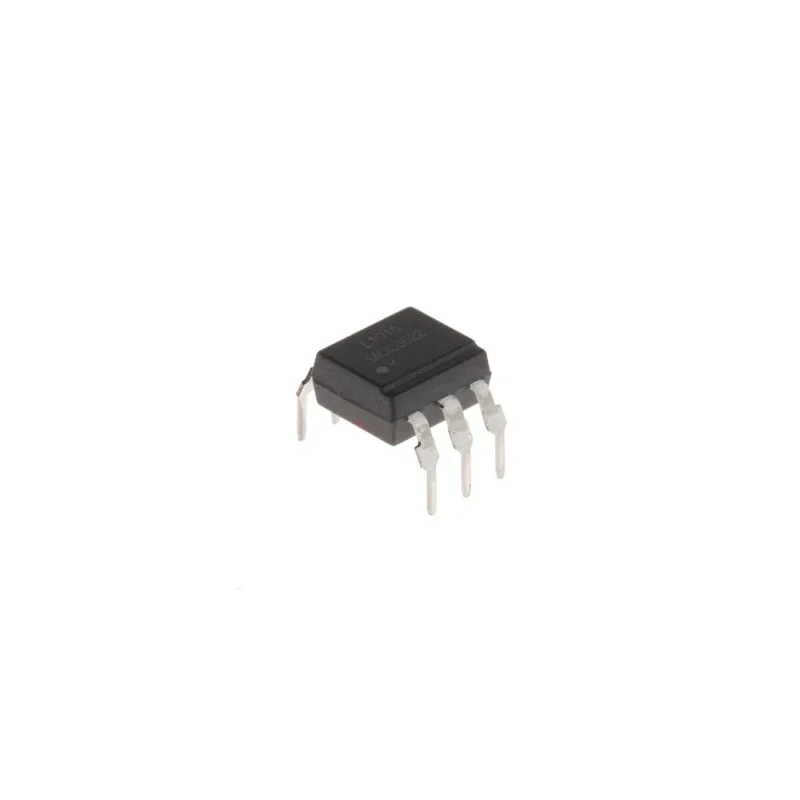

Lite-On Optocoupler Through Hole 6-Pin PDIP Triac Output 1.5V Forward Voltage MOC3022M

Free Delivery in India | Lowest Global Shipping Charges

Lite-On Optocoupler Through Hole 6-Pin PDIP Triac Output 1.5V Forward Voltage MOC3022M

Name: Lite-On Optocoupler Through Hole 6-Pin PDIP Triac Output 1.5V Forward Voltage MOC3022M
Brand: Lite-On
SKU: 425409
Price: 0.62 USD
Availability: InStock



Category Optocoupler Brand Lite-On Condition New

Specifications

Country of Origin	India
Brand	Lite-On
Model	MOC3022M
Packaging	Tape & Reel
Mount Type	Through Hole
Output type	Triac
Series	MOC30
Maximum Operating Temperature	100°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Maximum input current	50mA
Number Of Channels	1
Standards/Approvals	VDE, NEMKO, SEMKO, UL, DEMKO, CSA, FIMKO, RoHS
Maximum Forward Voltage	1.5V
Number of Pins	6
onsemi Optocoupler, Through Hole, 6-Pin PDIPBrand	onsemi

Key Features

Designed for industrial and electronic circuit isolation applications.
Through hole mount with a compact 6-pin PDIP package.
Features triac output suitable for AC load control.
Maximum forward voltage of 1.5 volts ensuring low loss operation.
Capable of handling maximum input current of 50mA.
Wide operating temperature range from -40°C to 100°C for versatility.
Complies with multiple safety and environmental standards including RoHS and UL.
Isolation voltage rating of 5kVrms for robust electrical separation.

Product Description

Lite-On MOC3022M Optocoupler is a through hole electronic component encapsulated in a 6-pin PDIP package, designed to provide electrical isolation and interface switching between high and low voltage circuits. It features a triac output suitable for controlling AC loads, making it ideal for industrial automation, HVAC systems, and electronic control circuits.

This device supports a maximum forward voltage of 1.5V on the input LED with a maximum input current of 50mA, allowing for efficient signal transmission with minimal power loss. It can operate reliably in harsh environments with temperatures ranging from -40°C to 100°C, ensuring durability and stable performance.

The MOC3022M meets various international standards and approvals such as VDE, NEMKO, SEMKO, UL, DEMKO, CSA, FIMKO, and is RoHS compliant, which guarantees safety, quality, and environmental compatibility.

The isolation voltage of 5kVrms protects sensitive low voltage control circuits from high voltage spikes and noise, enhancing system reliability. Being part of the MOC30 series, this optocoupler is widely utilized in electronic components assemblies where galvanic isolation is critical.

Packaging in Tape & Reel format ensures compatibility with automated pick-and-place machinery, facilitating efficient manufacturing processes. Designed for industrial electronic isolation and switching applications. 6-pin PDIP package for through hole mounting.

Triac output supports AC load control. Input forward voltage maximum 1.5V. Maximum input current of 50mA. Operating temperature range from -40°C to 100°C. High isolation voltage of 5kVrms. Complies with multiple international safety standards and RoHS.

Tape & Reel packaging suited for automated manufacturing.

Ideal for electronic component applications in industrial automation, power control, HVAC, and other electronic circuitry requiring reliable isolation and switching capabilities. Explore additional trusted Optocoupler products in the Electronics & Electricals category at EnvMart.
