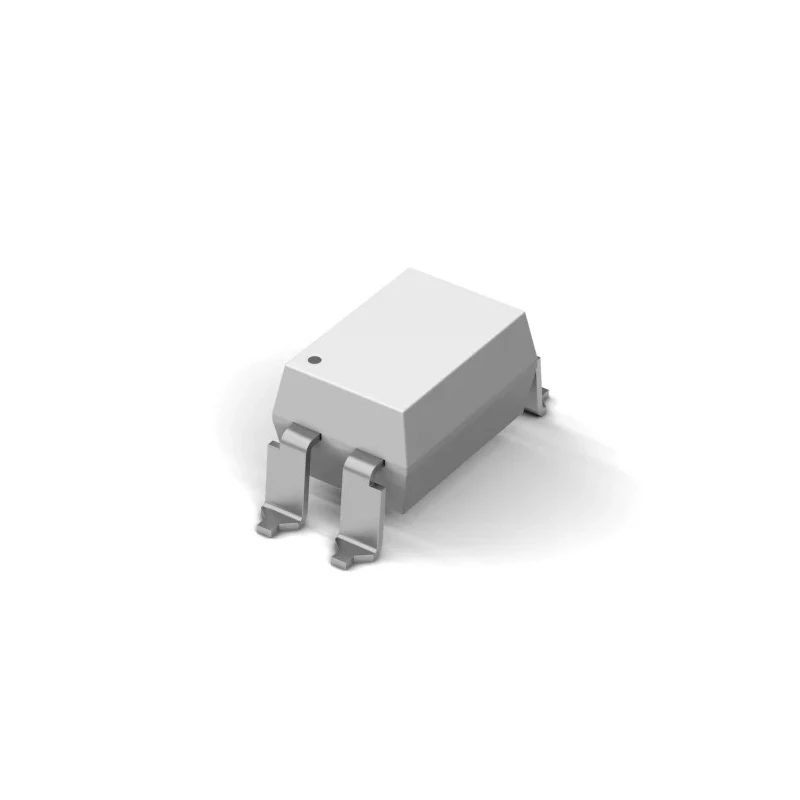

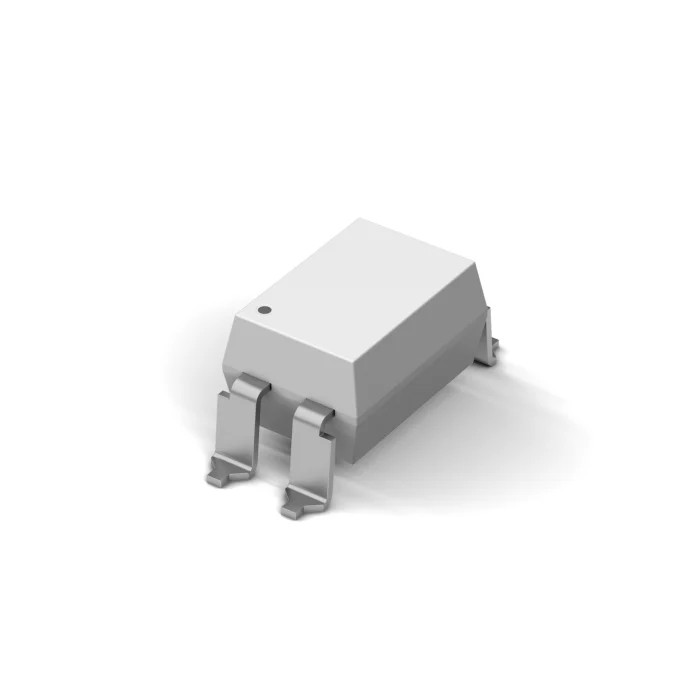

Wurth Elektronik DC Input 4-Channel Phototransistor Optocoupler Surface Mount 4-Pin DIP 140816142000

Wurth Elektronik 140816142000 DC Input 4-Channel Phototransistor Optocoupler is designed for precise control applications with a surface mount 4-Pin DIP package measuring 6.5mm x 4.58mm x 3.5mm (L x W x H). It supports DC input current with a maximum forward voltage of 1.4V and forward current up to 60mA, dissipating power at 200mW.

This optocoupler ensures high isolation voltage of 5000Vrms, providing excellent electrical separation. Its phototransistor output type enables fast switching with typical rise and fall times of 3μs and 4μs respectively. The device maintains a stable current transfer ratio (CTR) throughout operating conditions, ranging from 50% minimum up to 600% maximum, available in various CTR binnings to suit different design needs.

Operating reliably over a wide temperature range from -55°C to 110°C, it is compliant with multiple industry standards including VDE, RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21. Applications include controlling load devices in test and measurement instruments, data communication systems, power supplies, and sensor interfaces in industrial and commercial electronic setups.

The surface mount DIP package is designed for through-hole mounting on PCBs, guaranteeing ease of assembly and reliability in demanding environments. This component is part of the WL-OCPT series, ensuring consistency in performance and quality.

Designed with 4 channels for multiple input applications. Features a surface mount 4-Pin DIP package ensuring easy PCB integration. Maximum forward voltage is 1.4V with a maximum input current of 60mA. Wide operating temperature range from -55°C to 110°C ensures durability.

Isolation voltage rated at 5000Vrms for high electrical separation. Typical rise and fall times are 3μs and 4μs respectively for fast switching. Robust current transfer ratio between 50% minimum and 600% maximum. Compliant with VDE, RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards.

Ideal for control applications in test equipment, data communications, power supplies, and sensors. Explore the complete range of Optocouplers and electronic components suitable for industrial automation, power management, and signal isolation at EnvMart.
