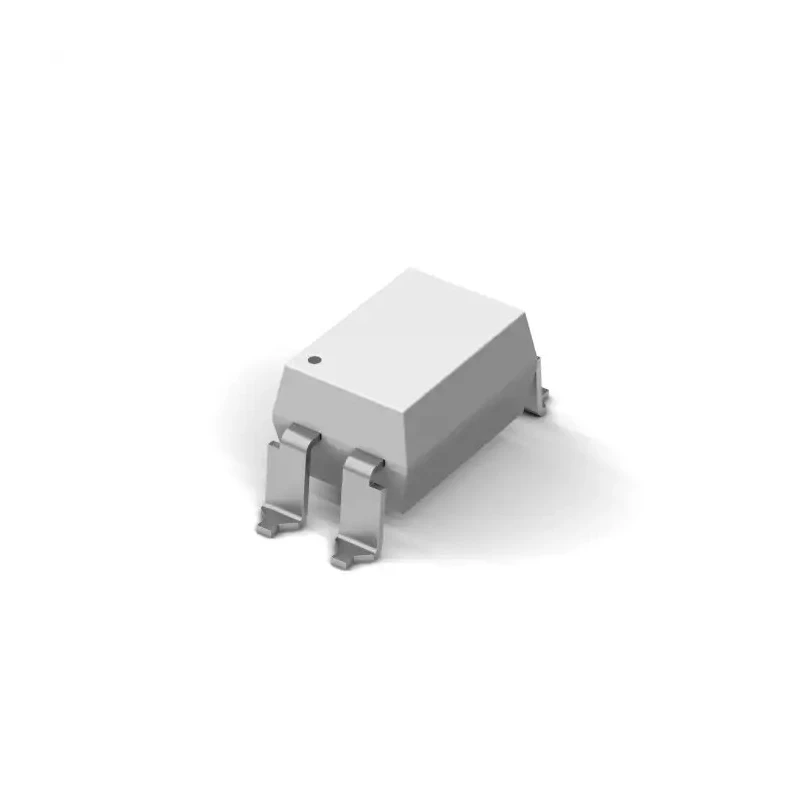

Wurth Elektronik DC Input 4-Channel Optocoupler, Surface Mount, 4-Pin DIP 140816143200

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik DC Input 4-Channel Optocoupler, Surface Mount, 4-Pin DIP 140816143200

Name: Wurth Elektronik DC Input 4-Channel Optocoupler, Surface Mount, 4-Pin DIP 140816143200
Brand: Wurth Elektronik
SKU: 422517
Price: 0.46 USD
Availability: InStock



Category Optocoupler Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Brand	Wurth Elektronik
Packaging	Tube
Mount Type	Surface
Output type	Phototransistor
Series	WL-OCPT
Maximum Operating Temperature	110°C
Package Type	DIP
Minimum Operating Temperature	-55°C
Maximum input current	60mA
Number Of Channels	4
Standards/Approvals	VDE, RoHS, REACH, JEDEC JS709B, IEC 61249-2-21, CoC
Maximum Forward Voltage	1.4V
Number of Pins	4
Input Current Type	DC
Typical Rise Time	3μs
Maximum Current Transfer Ratio	260%
Typical Fall Time	4μs
Minimum Current Transfer Ratio	130%

Key Features

Features four optocoupler channels in a compact 4-pin DIP package.
Designed for DC input current operation with maximum input current of 60mA.
Offers a high isolation voltage of 5000 Vrms for circuit safety.
Typical rise time of 3 microseconds and fall time of 4 microseconds enable fast switching.
Operates over a wide temperature range from -55°C to 110°C.
High current transfer ratio between 130% to 260% ensures efficient signal transmission.
Compliant with standards including VDE, RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21.
Packaged in tubes suitable for automated assembly.

Product Description

Wurth Elektronik 140816143200 is a DC input 4-channel optocoupler featuring a surface mount 4-pin DIP package measuring 6.5mm x 4.58mm x 3.5mm (L x W x H). This phototransistor-based optocoupler offers an isolation voltage of 5000 Vrms and is optimized for fast switching applications with typical rise and fall times of 3μs and 4μs respectively.

With a maximum forward voltage of 1.4V and maximum input current rating of 60mA, it is suitable for controlling a variety of loads including test and measurement equipment, data communications systems, power supplies, and sensors. The device delivers a current transfer ratio spanning from 130% to 260%, ensuring strong signal integrity across the isolation barrier.

The optocoupler maintains stable performance in harsh industrial environments with its operating temperature range from -55°C up to 110°C, making it versatile for use in industrial automation, electronics manufacturing, instrumentation, and power control systems.

This device is compliant with multiple international standards such as VDE, RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21, attesting to its quality and environmental safety. It comes in tube packaging that facilitates easy integration into assembly lines.

Compact 4-channel design in a 4-pin DIP surface mount package. High isolation voltage for safety-critical applications. Fast switching capability with microsecond rise and fall times. Wide operational temperature range. High current transfer ratio for efficient signal coupling.

Complies with key industrial and environmental standards. Suitable for automation, communications, and power control use cases. Explore more Optocouplers and electronic components at EnvMart for reliable industrial and commercial solutions.
