Broadcom AC/DC Input 2-Channel CMOS Output Optocoupler Surface Mount 8-Pin SO HCPL-0710-500E

Free Delivery in India | Lowest Global Shipping Charges

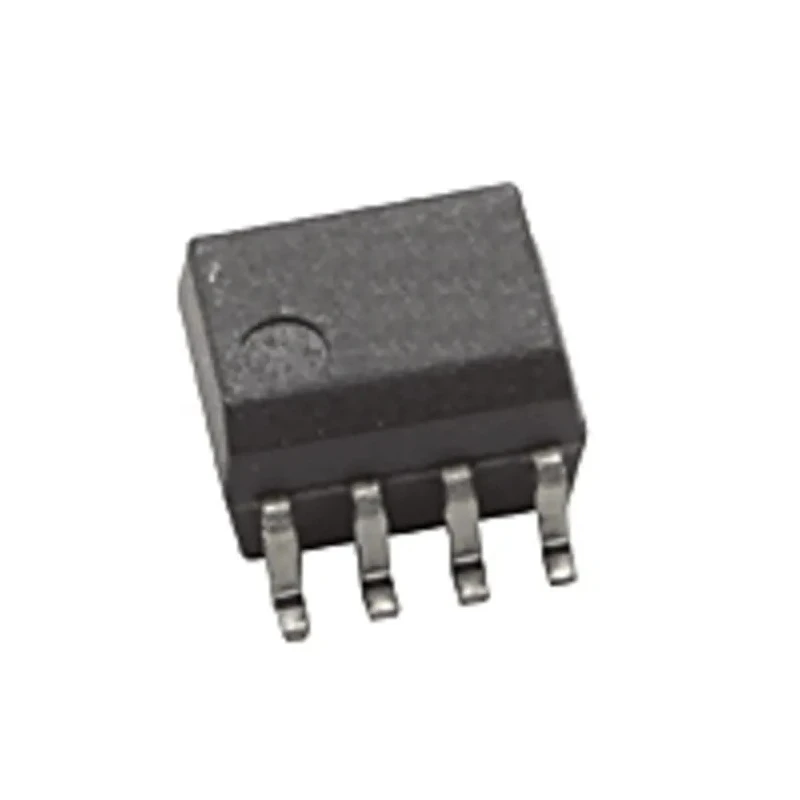

Broadcom AC/DC Input 2-Channel CMOS Output Optocoupler Surface Mount 8-Pin SO HCPL-0710-500E

Name: Broadcom AC/DC Input 2-Channel CMOS Output Optocoupler Surface Mount 8-Pin SO HCPL-0710-500E
Brand: Broadcom
SKU: 419934
Price: 4.26 USD
Availability: InStock



Category Optocoupler Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Model	HCPL-0710-500E
Packaging	Tape & Reel
Mount Type	Surface
Output type	CMOS
Series	HCPL
Maximum Operating Temperature	100°C
Package Type	SO
Minimum Operating Temperature	-40°C
Maximum input current	10mA
Number Of Channels	2
Standards/Approvals	UL, CSA, IEC/EN/DIN EN 60747-5-5
Maximum Forward Voltage	6V
Number of Pins	8
Input Current Type	AC/DC
Typical Rise Time	13ns
Typical Fall Time	5ns

Key Features

Designed for surface mount with 8-pin SO package.
Supports AC and DC input current types.
Features high isolation voltage of 3750Vrms for robust signal isolation.
Operates within temperature range of -40°C to 100°C.
Maximum forward voltage of 6V and maximum input current of 10mA.
Typical rise time of 13ns and fall time of 5ns for fast signal response.
Complies with UL, CSA, and IEC/EN/DIN EN 60747-5-5 standards.
Includes CMOS output for compatibility with digital logic circuits.

Product Description

Broadcom HCPL-0710-500E is a high-speed CMOS LED driver integrated circuit combined with a CMOS detector IC, designed as a 2-channel optocoupler suitable for AC and DC input signals. This device features a surface mount 8-pin SO package enabling compact PCB designs.

The optocoupler provides electrical isolation using an LED driver IC controlled by a CMOS logic input signal. The integrated detector IC combines a photodiode with a high-speed transimpedance amplifier and a voltage comparator, delivering CMOS-compatible output. It is designed for high-speed data transmission with typical rise and fall times of 13ns and 5ns respectively, making it suitable for fast digital applications.

Operating temperature ranges from -40°C to 100°C, supporting usage in industrial and commercial electronic systems. The device withstands an isolation voltage of 3750Vrms, ensuring reliable isolation between input and output circuits.

Broadcom HCPL-0710-500E complies with internationally recognized safety and quality standards UL, CSA, and IEC/EN/DIN EN 60747-5-5. Packaged in tape and reel format, it supports high-volume automated manufacturing processes. The optocoupler’s CMOS output makes it ideal for interfacing with microcontrollers, digital logic circuits, and communication equipment.

Designed for surface mount 8-pin SO package integration. AC/DC input current compatibility allowing versatile applications. High isolation voltage supports safety and signal integrity. Wide operating temperature range for industrial environments.

Rapid signal response with 13ns rise and 5ns fall times. Standards compliant for quality and reliability assurance. Ideal for use in power supplies, signal isolation, and data communication. Packaged in tape and reel format for ease of assembly.

This component is suitable for electronics manufacturing environments requiring reliable optocouplers for signal isolation, industrial automation, HVAC systems, and instrumentation.

Explore extensive selections of Optocouplers and electronics components in the EnvMart catalog to find tailored solutions for your industrial and commercial electronics needs.
