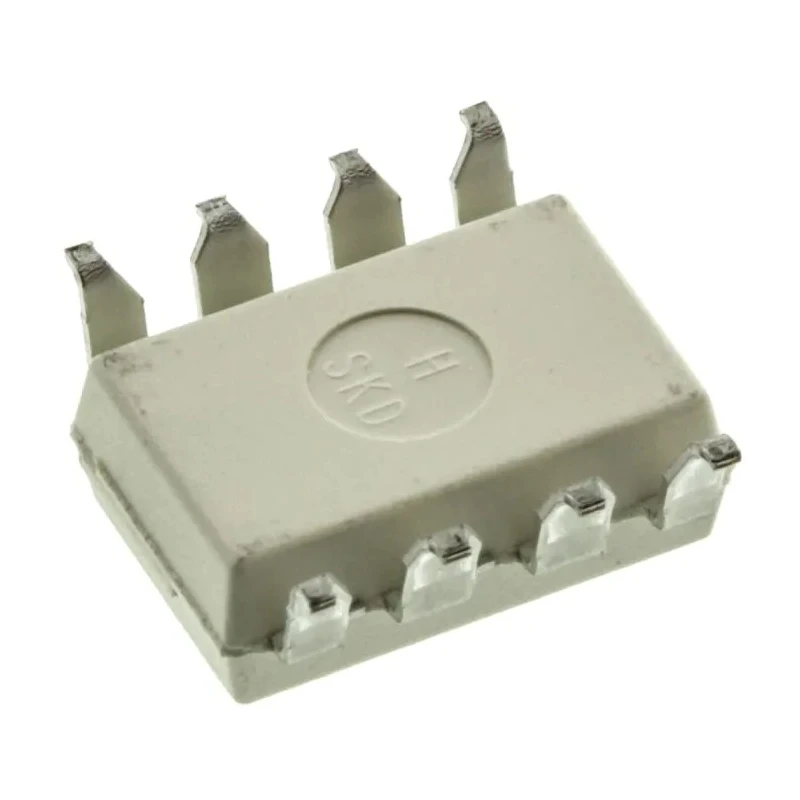

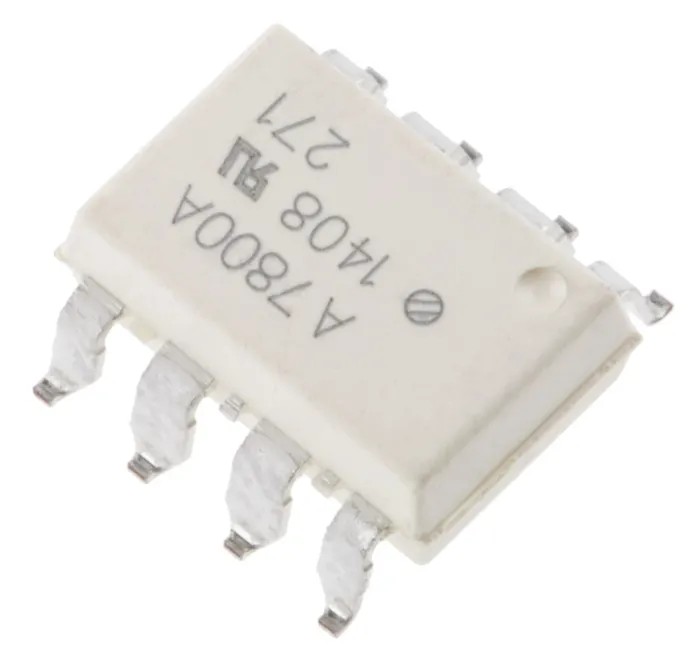

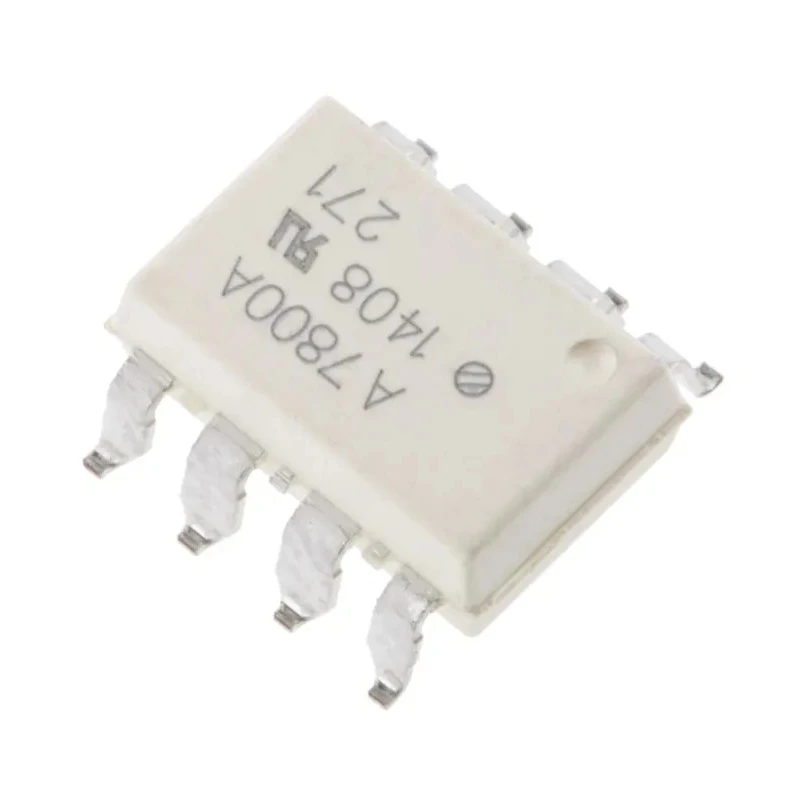

Broadcom Optical Isolation Amplifier, 8-Pin DIP-8, 4.5-5.5V Supply, 76dB CMRR, HCPL-7800A-300E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 1.78mm |
| Length | 9.8mm |
| Model | HCPL-7800A-300E |
| Mount Type | Through Hole |
| Series | HCPL-7800A |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP-8 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | CSA, UL 1577, IEC/EN/DIN EN 60747-5-2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Vos - Input Offset Voltage | 0.3 mV |
| CMRR - Common Mode Rejection Ratio | 76dB |
| Isolation Type | Optical |
Key Features
- Operates with a supply voltage range of 4.5 to 5.5 volts.
- Features a high common mode rejection ratio of 76 dB for noise immunity.
- Designed for through-hole mounting in DIP-8 package type.
- Suitable for industrial applications requiring isolation up to 3750 Vrms.
- Functions over a wide temperature range from -40°C to 100°C.
- Utilizes sigma-delta modulator technology for accurate current and voltage sensing.
- Provides optical isolation, complying with CSA, UL 1577, and IEC/EN/DIN EN standards.
- Measures 9.8mm in length and 1.78mm in height.
Product Description
Broadcom HCPL-7800A-300E is an advanced optical isolation amplifier housed in an 8-pin DIP-8 package designed for high accuracy and reliable insulation of measurement signals in electrical circuits.
Operating within 4.5 to 5.5 volts supply voltage, this isolation amplifier offers a robust common mode rejection ratio of 76 dB and can withstand isolation voltages up to 3750 Vrms, suitable for harsh industrial settings.
With a temperature operating range from -40°C to 100°C, it is optimized for environments with wide thermal variance. Its compact dimensions, 9.8mm length and 1.78mm height, make it suitable for through-hole mounting in printed circuit boards.
Employing sigma-delta modulator technology, the device accurately senses currents and voltages, providing precise measurements critical in motor drives, power converters, and voltage isolation applications. It is a reliable alternative to Hall Effect isolation amplifiers for current and voltage sensing.
The product meets key safety and quality standards including CSA, UL 1577, and IEC/EN/DIN EN 60747-5-2, ensuring compliance for industrial implementation. Operates with supply voltage from 4.5 to 5.5 volts. Provides 76 dB common mode rejection ratio for noise suppression.
Optical isolation type for enhanced electrical safety. Through-hole mount with DIP-8 package form factor. Suitable for isolation voltage tolerance of 3750 Vrms. Wide operational temperature range from -40°C to 100°C. Compact size: 9.8mm length and 1.78mm height.
Complies with recognized industrial safety standards. Sigma-delta modulator technology enables precise sensing.
This Broadcom Isolation Amplifier is widely applicable in industrial, manufacturing, power electronics, and laboratory instrumentation domains requiring stable and accurate electrical isolation and signal conversion.
Explore more semiconductors and electronic components on EnvMart for comprehensive solutions in amplification and isolation technologies.
