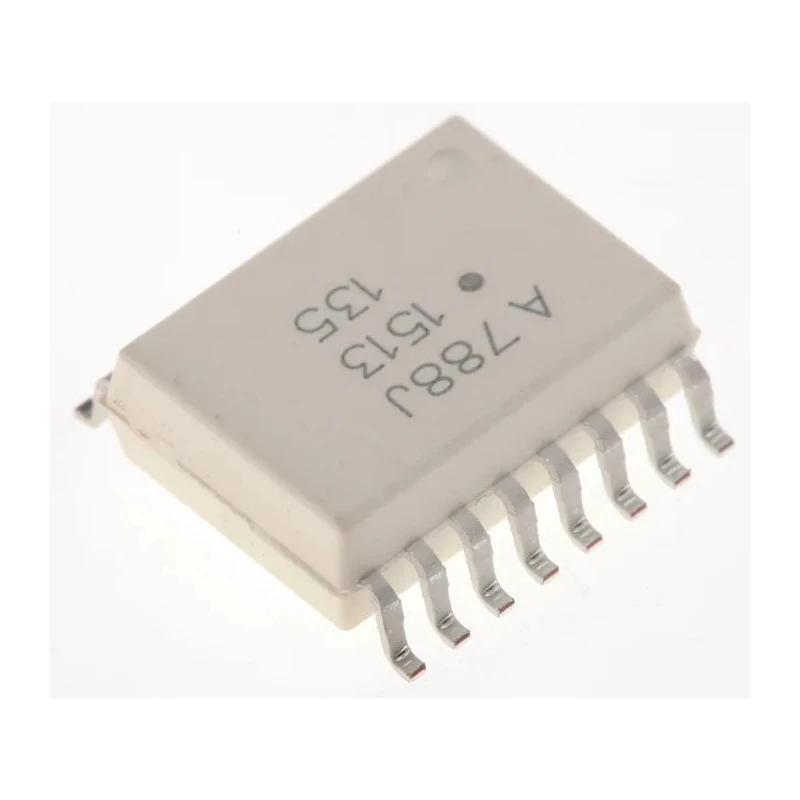

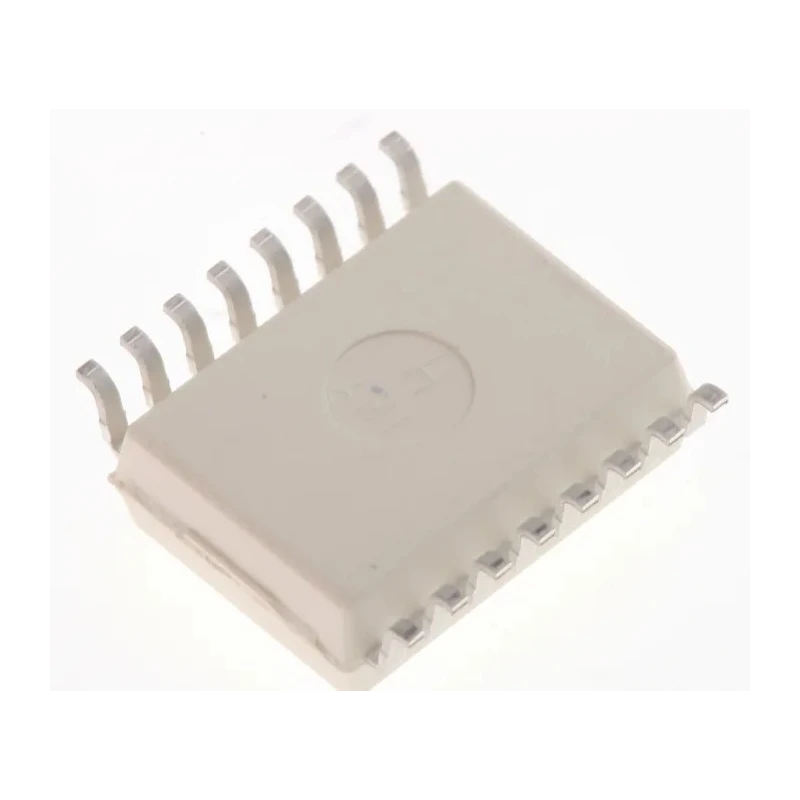

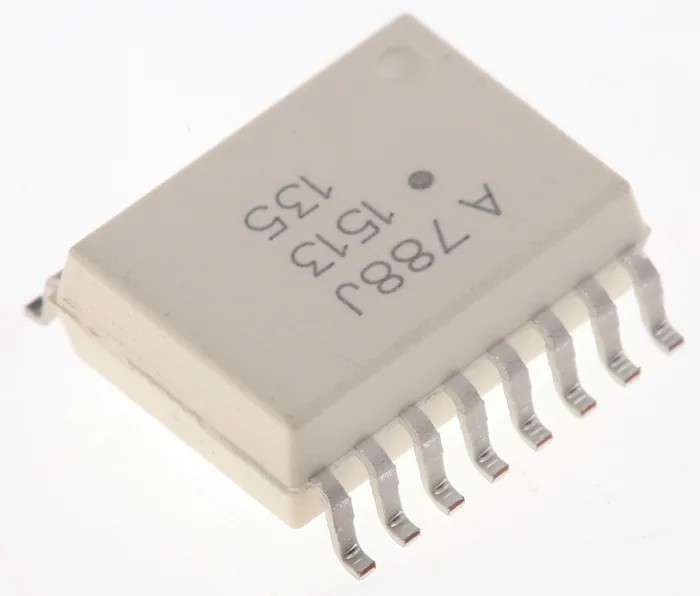

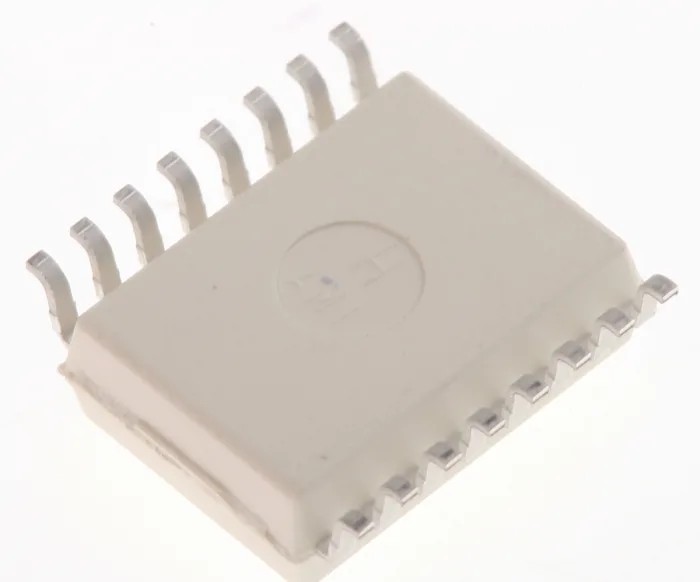

Broadcom Isolation Amplifier 16-Pin SOIC Surface Mount, 4.5-5.5 V Supply, 85 dB CMRR HCPL-788J-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 3.51mm |
| Length | 10.31mm |
| Model | HCPL-788J-000E |
| Mount Type | Surface |
| Series | HCPL-788J |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Vos - Input Offset Voltage | 3 mV |
| CMRR - Common Mode Rejection Ratio | 85dB |
Key Features
- This device features a common mode rejection ratio (CMRR) of 85 dB for reliable signal accuracy.
- Input offset voltage is low at 3 mV to ensure measurement precision.
- Designed for operation in industrial environments with a temperature range from -40°C to 85°C.
- Ideal for current and voltage sensing in motor drives, power inverters, and general isolation circuits.
- Utilizes sigma-delta modulator technology for precise sensing applications.
- Offers built-in safety insulation and functions as an alternative to Hall Effect isolation amplifiers.
- 16-pin SOIC package supports surface mount technology for efficient PCB assembly.
- Part of the HCPL-788J series, suitable for industrial and automotive signal isolation roles.
Product Description
Broadcom HCPL-788J-000E is a high-quality isolation amplifier designed for industrial and commercial applications requiring precise electrical isolation and signal conditioning. This device comes in a 16-pin SOIC surface mount package optimized for compact circuit boards with dimensions of 10.31 mm (length) by 3.51 mm (height).
Operating at a supply voltage range of 4.5 to 5.5 volts, this single channel isolation amplifier features an input offset voltage of 3 mV and an excellent common mode rejection ratio (CMRR) of 85 dB. These characteristics ensure accurate and stable voltage and current sensing across challenging environments.
With an operating temperature from -40°C up to 85°C, the HCPL-788J-000E amplifier is suitable for harsh industrial conditions. Its sigma-delta modulator technology makes it highly effective for precision measurement of phase currents, bus voltages, and other isolation circuit signals.
This amplifier family serves as a robust alternative to Hall Effect sensors, providing reliable isolation and noise rejection for power converters, motor drives, and inverters. The built-in safety insulation enhances system reliability and safety compliance.
This isolation amplifier uses surface-mount technology with a standard SOIC package and 16 pins for easy integration. Designed specifically for industrial environments, it excels in signal isolation under high-voltage conditions.
Offers precise measurement capabilities thanks to advanced modulator technology and high CMRR. Extensively used in power electronic circuits for current and voltage sensing. Operates reliably over a wide temperature range, making it suitable for a variety of applications.
Part of the HCPL-788J series of isolation amplifiers by Broadcom.
Broadcom's isolation amplifiers are widely recognized for industrial, HVAC, manufacturing, and electrical engineering applications. This device supports efficient and accurate signal isolation to enhance system performance and safety.
Explore more Isolation Amplifiers and related electronic components at EnvMart's Electronics & Electricals category for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The common mode rejection ratio (CMRR) is 85 dB, ensuring reliable signal accuracy.
The input offset voltage is low at 3 mV, which contributes to measurement precision.
This isolation amplifier requires a supply voltage range of 4.5 to 5.5 volts.
The dimensions are 10.31 mm in length and 3.51 mm in height, designed for surface mount applications.
This model features a single channel design.
It comes in a 16-pin SOIC surface mount package, optimized for compact circuit boards.
It utilizes sigma-delta modulator technology, which enhances its effectiveness for precise measurements.
The high CMRR of 85 dB allows for effective noise rejection, which is critical in power electronic circuits.
The country of origin for this isolation amplifier is India.
