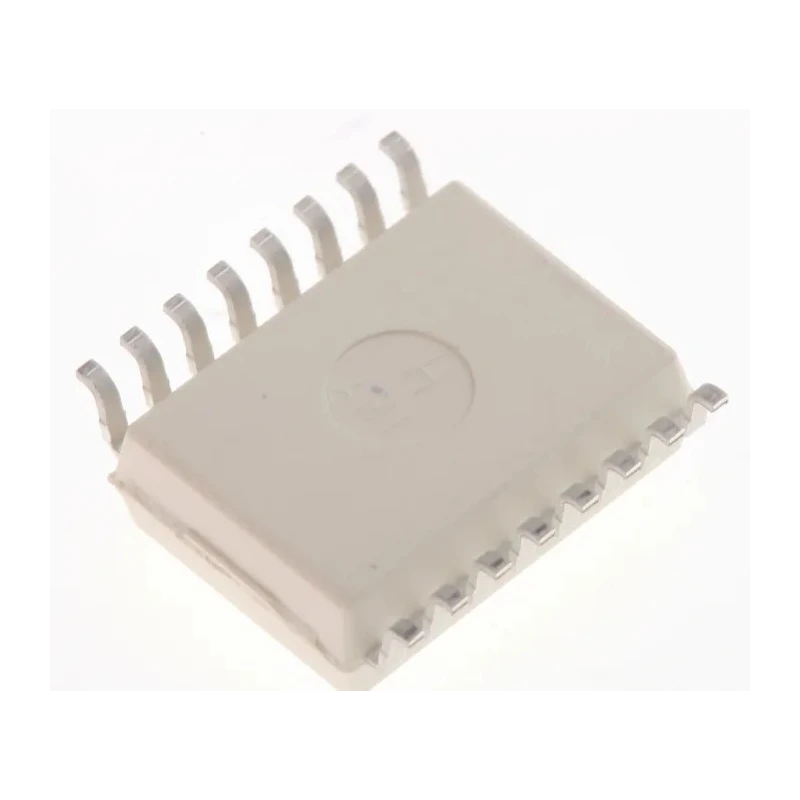

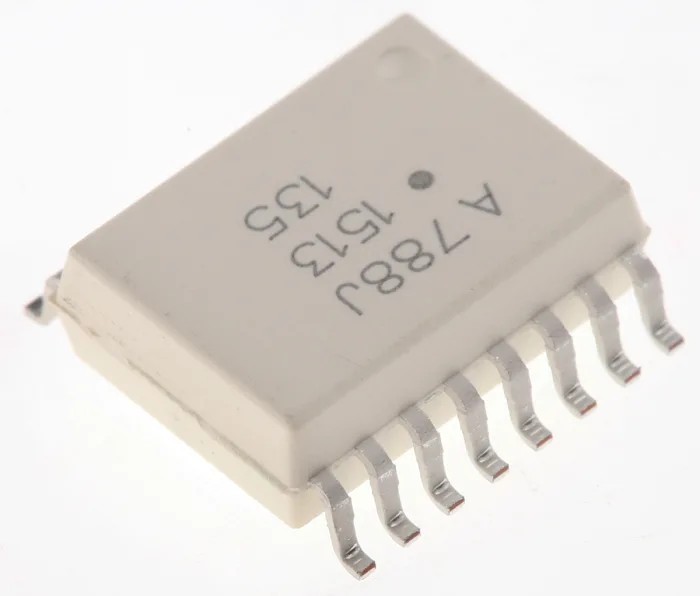

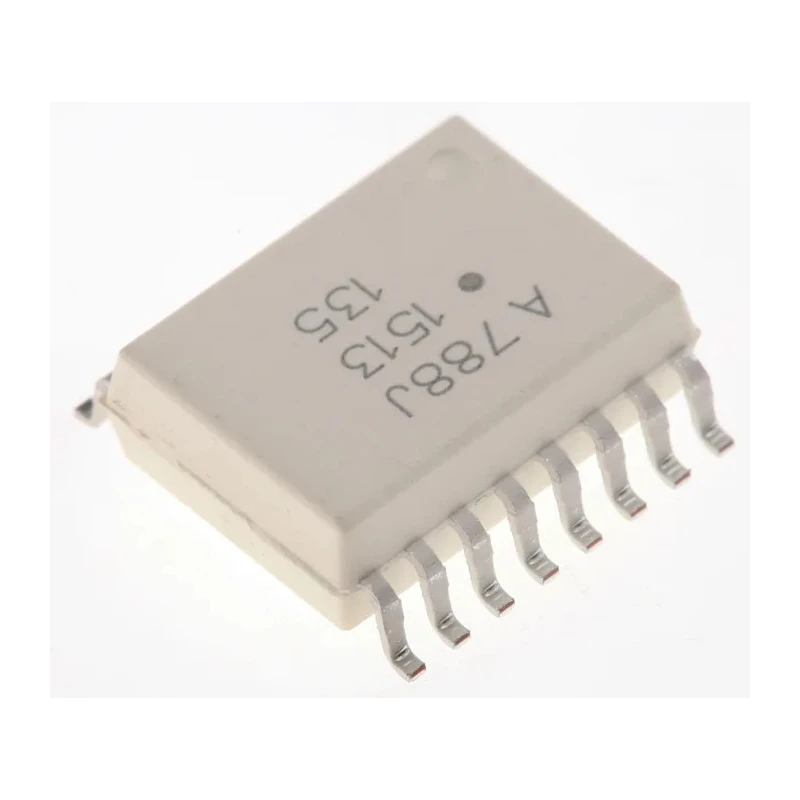

Broadcom Isolation Amplifier 16-Pin SOIC 5.5V HCPL-788J-000E

Free Delivery in India | Lowest Global Shipping Charges

Broadcom Isolation Amplifier 16-Pin SOIC 5.5V HCPL-788J-000E

Name: Broadcom Isolation Amplifier 16-Pin SOIC 5.5V HCPL-788J-000E
Brand: Broadcom
SKU: 137955
Price: 10.07 USD
Availability: InStock



Category Isolation Amplifier Brand Broadcom Condition New

Specifications

Country of Origin	Thailand
Brand	Broadcom
Height	3.51mm
Length	10.31mm
Model	HCPL-788J-000E
Mount Type	Surface
Series	HCPL-788J
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Number Of Channels	1
Pin Count	16
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V
Vos - Input Offset Voltage	3 mV
CMRR - Common Mode Rejection Ratio	85dB

Key Features

Operates with a minimum supply voltage of 4.5 volts and maximum of 5.5 volts.
Features a single channel configuration suitable for isolation applications.
Surface mount type with a 16-pin Small Outline Integrated Circuit package.
Input offset voltage of 3 millivolts ensures accurate signal measurement.
Common Mode Rejection Ratio of 85 dB for superior noise rejection.
Operational temperature range from -40°C up to 85°C for industrial reliability.
Compact physical dimensions of 10.31 mm length and 3.51 mm height.
Manufactured in Thailand ensuring quality and reliability standards.

Product Description

Broadcom HCPL-788J-000E is a high-performance Isolation Amplifier designed for industrial and electronics applications requiring precise signal isolation and noise suppression. It operates within a supply voltage range of 4.5V to 5.5V and is housed in a 16-pin SOIC surface mount package, making it suitable for compact PCB designs.

This isolation amplifier uses sigma-delta modulator technology to offer accurate measurements of current and voltage in motor drives, power inverters, and general isolation circuits. The device's input offset voltage of 3 mV and common mode rejection ratio of 85 dB provide excellent performance in environments prone to electrical noise.

With an operating temperature range spanning from -40°C to 85°C, the HCPL-788J-000E ensures robust operation in harsh industrial environments. Its compact form factor (10.31 mm length and 3.51 mm height) facilitates integration into various electronics assemblies.

Ideal for applications such as motor control, power converters, industrial automation, and measurement systems, this isolation amplifier offers the precision and reliability needed for demanding electronic systems.

Operates with a minimum supply voltage of 4.5 volts and maximum of 5.5 volts. Single channel surface mount isolation amplifier in a 16-pin SOIC package. Input offset voltage of 3 millivolts for precise measurements. Common mode rejection ratio of 85 dB to minimize noise interference.

Works reliably across a broad temperature range from -40°C to 85°C. Compact dimensions support space-constrained PCB layouts. Manufactured in Thailand with high quality and conformity.

The HCPL-788J-000E isolation amplifier is a reliable component for industrial, laboratory, HVAC, and manufacturing contexts where signal integrity and safety isolation are critical. Its performance capabilities make it a suitable replacement for Hall Effect isolation amplifiers in power sensing and voltage measurement.

Browse more Isolation Amplifiers and electronic components for your projects at EnvMart.
