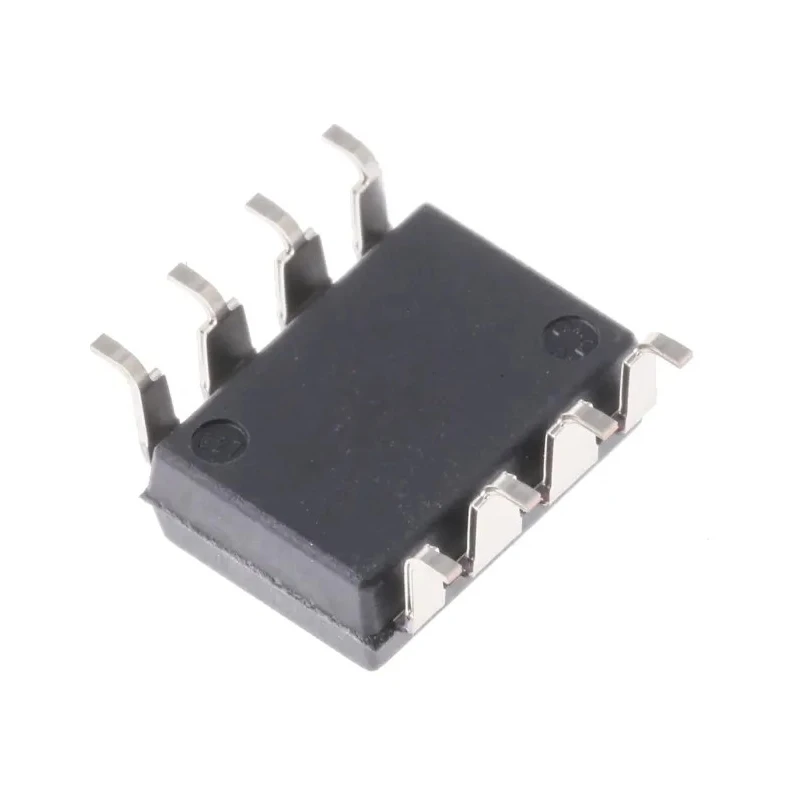

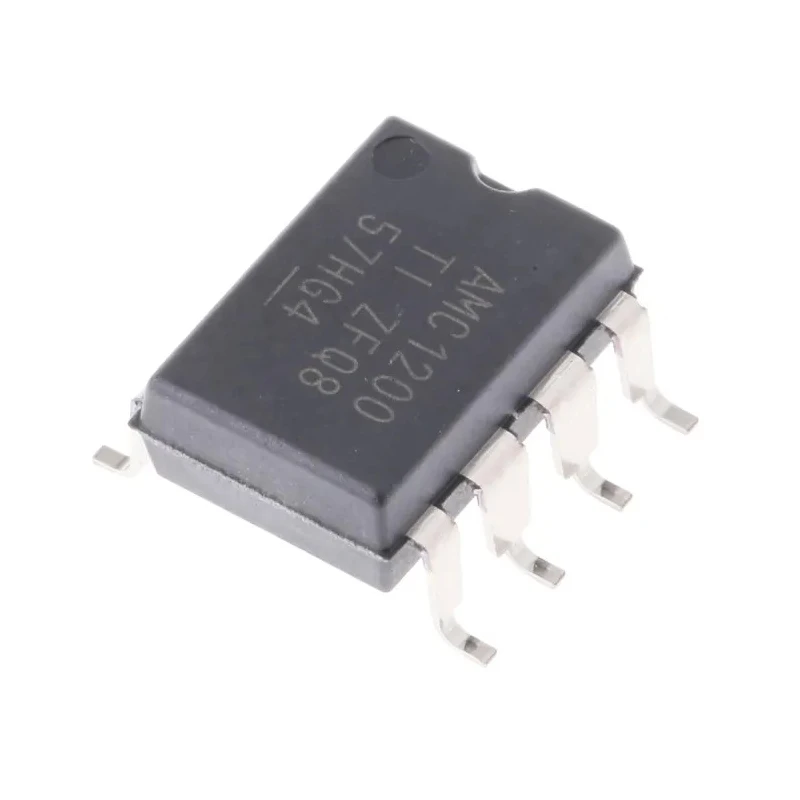

Texas Instruments Isolation Amplifier 8-Pin SOP, 5-6 V Supply, 4250 V Isolation AMC1200SDUBR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 3.35mm |
| Length | 9.55mm |
| Model | AMC1200SDUBR |
| Mount Type | Surface |
| Series | AMC1200 |
| Maximum Operating Temperature | 105°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 6V |
| Isolation Voltage | 4250V |
| Minimum Supply Voltage | 5V |
| Vos - Input Offset Voltage | 1.5 mV |
| CMRR - Common Mode Rejection Ratio | 108dB |
Key Features
- Operates within a temperature range of -40°C to 105°C.
- Provides a Common Mode Rejection Ratio (CMRR) of 108 dB.
- Single channel isolation amplifier designed for surface mounting.
- Input offset voltage is 1.5 mV enabling precise signal isolation.
- Package dimensions include a height of 3.35 mm and length of 9.55 mm.
- Meets standard electronic component requirements without automotive standards.
- Ideal for electrical isolation in industrial and electronic PCB applications.
Product Description
Texas Instruments AMC1200SDUBR isolation amplifier is a surface-mount device housed in a compact 8-pin SOP package designed for high-voltage isolation applications. It operates with a supply voltage from 5 V minimum to 6 V maximum, providing robust isolation up to 4250 V and ensuring signal integrity in noisy environments. The device supports a single channel, making it suitable for precise signal conditioning and separation on printed circuit boards.
Operating temperature ranges from -40°C to 105°C, allowing reliable performance in various industrial and electronic environments. The Common Mode Rejection Ratio (CMRR) of 108 dB offers excellent noise immunity. The low input offset voltage of 1.5 mV ensures accurate signal representation.
The package dimensions are optimized for space-saving designs, with a height of 3.35 mm and a length of 9.55 mm, facilitating easy integration into dense electronic assemblies. It does not comply with specific automotive standards but is ideal for electrical isolation applications in industrial automation, instrumentation, and power management systems.
This isolation amplifier contributes to improved safety and performance in circuits by electrically separating input and output while maintaining signal transfer. Operates over wide temperature range for industrial use. High isolation voltage enhances safety and noise immunity.
Compact SOP package eases PCB layout constraints. Excellent signal accuracy with low offset voltage. Single channel for dedicated isolation tasks. Suitable for power, industrial, and electronic applications. Surface mount type supports volume manufacturing.
Explore a wide selection of Isolation Amplifiers and related electronic components at EnvMart for diverse industrial and electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum isolation voltage of this model is 4250 V, providing robust electrical separation for safety and noise immunity in various applications.
It operates within a temperature range of -40°C to 105°C, making it suitable for diverse industrial and electronic environments.
The input offset voltage for this unit is 1.5 mV, which ensures accurate signal representation.
This isolation amplifier supports a single channel, designed for dedicated isolation tasks.
The package dimensions are 3.35 mm in height and 9.55 mm in length, optimized for space-saving designs.
The CMRR of the AMC1200SDUBR is 108 dB, providing excellent noise immunity in signal processing.
This model is designed for surface mounting, facilitating easy integration into printed circuit boards.
It operates with a supply voltage ranging from 5 V minimum to 6 V maximum.
No, this model does not comply with specific automotive standards but is suitable for industrial and electronic applications.
It is ideal for electrical isolation in industrial automation, instrumentation, and power management systems.
This isolation amplifier features an 8-pin configuration, which is standard for its package type.
The country of origin for this model is India.
