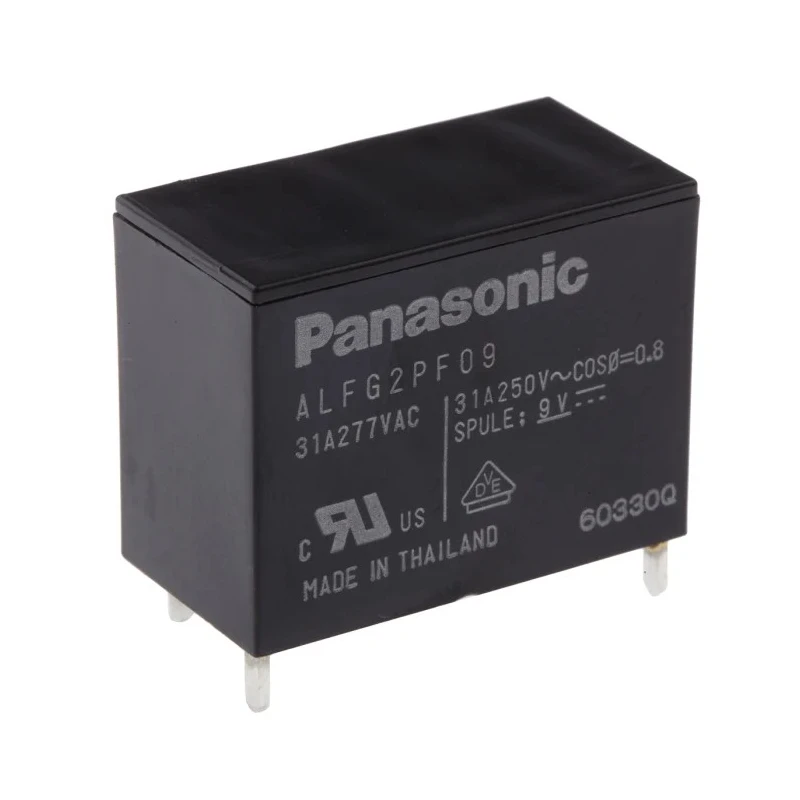

Panasonic PCB Power Relay 9V DC Coil 31A Switching Current SPST ALFG2PF09
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 23.3mm |
| Length | 30.1mm |
| Model | ALFG2PF09 |
| Width | 15.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ALFG |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 31A |
| Terminal type | Through Hole |
| Typical Applications | Solar inverter, Uninterriptible PSU's, Office equipment |
| Contact Resistance | 100mΩ |
| Standards/Approvals | VDE, UL, RoHS |
| Coil Resistance | 58Ω |
| Coil Voltage | 9V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.4W |
| Surge breakdown voltage | 6kV |
Key Features
- Provides high insulation resistance for reliable operation.
- Surge breakdown voltage rated at 6kV for enhanced durability.
- Compact design with dimensions 30.1mm length, 23.3mm height, and 15.7mm width.
- Silver alloy contact material ensures low contact resistance of 100mΩ.
- Suitable for use in solar inverters, uninterruptible power supplies, and office equipment.
- Operates from -40°C to 60°C ensuring wide temperature tolerance.
- Coil power consumption of 1.4W with coil resistance of 58Ω.
- Through hole terminal type with PCB mount for easy integration.
Product Description
Panasonic ALFG2PF09 PCB Power Relay is a high capacity relay designed for efficient and reliable switching with a coil voltage of 9V DC and a switching current of 31A. It belongs to the ALFG series and features a Single Pole Single Throw (SPST) contact configuration with through-hole terminals for PCB mounting.
This power relay is engineered to provide low coil holding voltage, helping save energy in equipment such as photovoltaic power generation systems (solar inverters), uninterruptible power supplies (UPS), home appliances, and office equipment.
Its robust design includes silver alloy contacts that offer low contact resistance of 100mΩ and high insulation resistance, ensuring stable electrical performance. Additionally, the relay withstands surge breakdown voltages up to 6kV for enhanced reliability.
The compact relay measures 30.1 mm in length, 23.3 mm in height, and 15.7 mm in width, fitting well into dense PCB layouts. It operates efficiently within a wide temperature range from -40°C up to 60°C, making it suitable for various industrial and commercial environments.
The coil resistance is specified at 58Ω with a coil power consumption of 1.4W, supporting energy-efficient operation. This relay complies with international standards including VDE, UL, and RoHS, ensuring quality and safety for industrial applications.
Provides high insulation resistance for reliable operation. Surge breakdown voltage rated at 6kV for enhanced durability. Compact dimensions suitable for PCB mounting. Silver alloy contact material with low contact resistance.
Wide operating temperature range from -40°C to 60°C. Low coil holding voltage contributes to energy savings. Typical applications include solar inverters, UPS, and office equipment.
This Panasonic power relay is ideal for industrial, laboratory, HVAC, manufacturing, and renewable energy applications. It offers trusted performance and durability for various high power switching needs.
Explore more Panasonic Power Relays and related components in the Electronics & Electricals category on EnvMart for your technical and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Panasonic ALFG2PF09 PCB power relay has a switching current capacity of 31A.
This model measures 30.1 mm in length, 23.3 mm in height, and 15.7 mm in width.
The relay operates with a coil voltage of 9V DC.
It features a Single Pole Single Throw (SPST) contact configuration.
The coil power consumption is specified at 1.4W.
This power relay operates efficiently within a temperature range of -40°C to 60°C.
The contact material is silver alloy, which ensures low contact resistance of 100mΩ.
The relay has a surge breakdown voltage rated at 6kV, enhancing its durability.
It utilizes through-hole terminals for PCB mounting, facilitating easy integration.
The relay complies with VDE, UL, and RoHS standards, ensuring quality and safety for industrial applications.
Typical applications include solar inverters, uninterruptible power supplies, and office equipment.
The coil resistance is specified at 58Ω.
