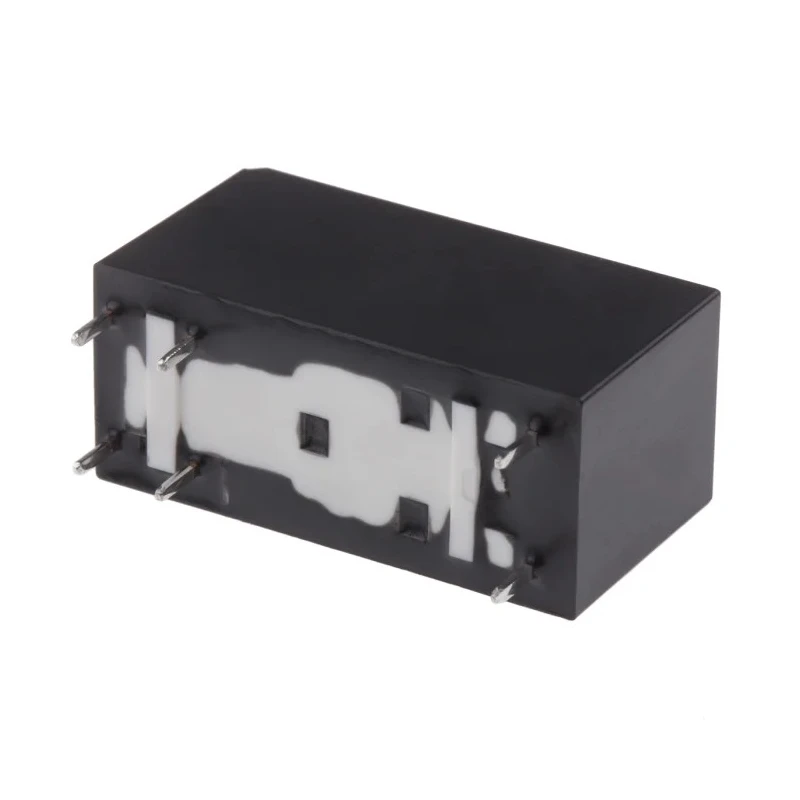

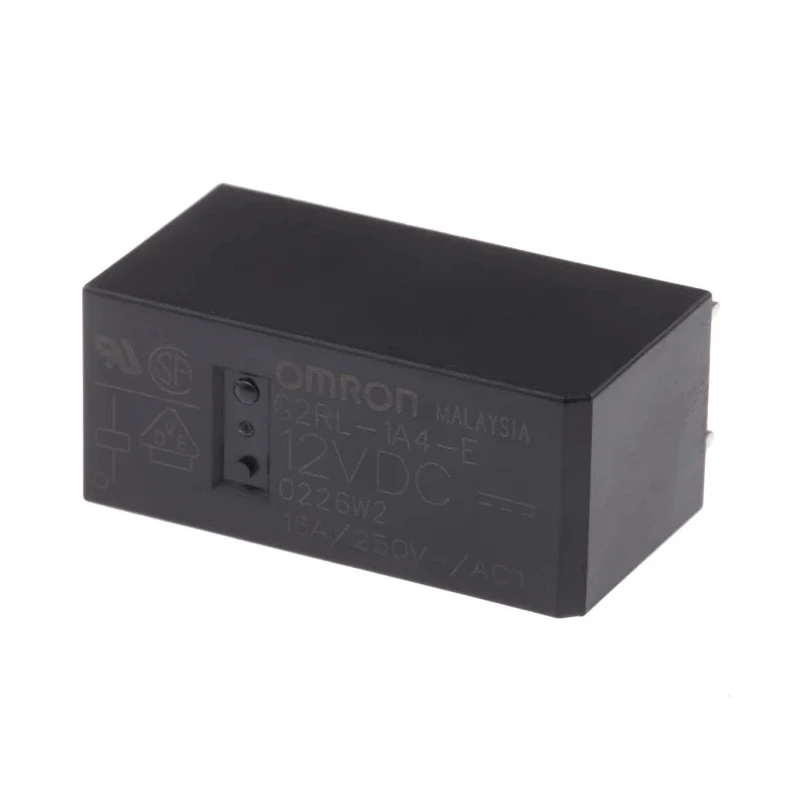

Omron PCB Power Relay, 12V DC Coil, 16A Switching Current, SPST Contact Configuration G2RL-1A4-E DC12

Omron G2RL-1A4-E DC12 PCB Power Relay is designed for reliable switching tasks in industrial, automation, and electrical control applications. It operates with a 12V DC coil voltage and handles a switching current of 16A, suitable for medium power loads.

The compact relay features a low profile height of 15.7mm and precise dimensions of 29mm length and 12.7mm width, optimized for PCB mounting inside electronic assemblies.

Constructed with silver alloy contacts, it ensures excellent electrical conductivity and long service life. The coil resistance of 360Ω and coil power consumption of 400mW contribute to efficient operation at the specified coil voltage.

Operating temperature range from -40°C to 85°C makes it suitable across a variety of industrial environments and conditions. The relay complies with global standards including VDE, UL, RoHS, IEC, EN, and CSA ensuring safety and regulatory compliance.

Its SPST contact configuration with solder terminals is ideal for PCB assembly and offers switching power up to 4 kVA at 250V AC, meeting rigorous industrial and automation control demands.

This model is part of the G2RL series known for its tracking resistance with CTI greater than 250 and complies with EN60335-1 requirements, providing enhanced reliability for demanding applications.

Ideal use cases include industrial automation, control panels, HVAC systems, manufacturing equipment, and other environments requiring robust power relay solutions. Explore the wide selection of electronic relays and components within the Power Relay category on EnvMart for further industrial needs.

The relay is designed with a low profile height of 15.7mm and compact dimensions for PCB mounting. It features silver alloy contact material to enhance conductivity and durability. Coil resistance is specified at 360Ω, ensuring efficient coil behavior at 12V DC.

Operational temperature range spans from -40°C to 85°C for wide industrial applicability. The relay complies with multiple international standards including VDE, UL, RoHS, IEC, EN, and CSA certifications. Its switching power is rated at 4 kVA with AC voltage handling up to 250V AC.

It utilizes solder-type terminals to ensure secure and reliable connections on PCB. The relay meets EN60335-1 requirements and has a tracking resistance with CTI greater than 250.
