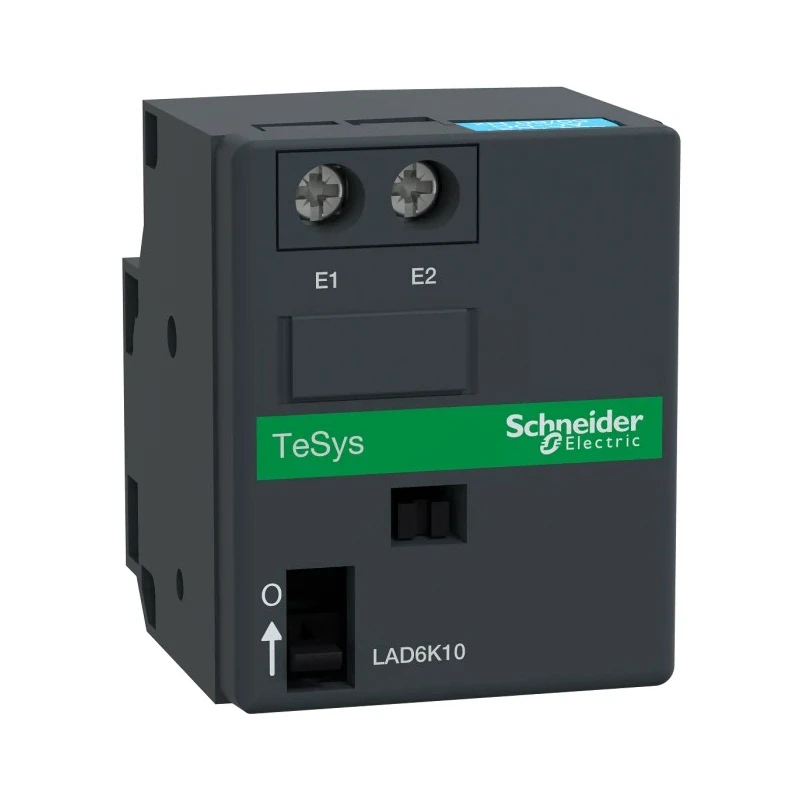

Schneider Electric TeSys D Contactor Latching Block for LC1 Series LAD6K10F

Schneider Electric LAD6K10F is a TeSys Deca mechanical latching block compatible with contactors from the LC1 series, specifically LC1D09-D80A and LC1DT20-DT80A models, as well as CAD control relays excluding low consumption coil devices. It operates with an electrical latching and unlatching mechanism via control voltage pulses of 110-127V AC/DC, requiring at least 100 ms pulse duration in AC and 250 ms in DC. Manual unlatching is possible, enhancing operational flexibility.

The device mounts easily by clipping onto the front of the contactor and connects through screw terminals, ensuring secure and straightforward installation. It supports high operating rates, capable of handling up to 1200 cycles per hour, suitable for demanding industrial applications. The latching function maintains the contactor's state after interrupted cycles while enabling power savings by allowing coil de-energisation.

The robust design boasts a lifespan of 500,000 cycles, promising long-lasting and reliable operation. It is multi-standard certified, meeting IEC, UL, and CSA standards, and compliant with Green Premium directives such as RoHS and REACh regulations, ensuring environmental and safety adherence.

Applications for this contactor latching block include agricultural equipment, automotive manufacturing, conveyor systems, and food production industries, offering versatile solutions across diverse automation tasks. Note that the unlatch coil and the contactor or relay should not be energized simultaneously, with a maximum on-time of 30 seconds and operation frequency capped at 36 per hour to avoid damage.

Robust mechanical latch with long operational lifespan. Fits a broad range of contactors within the LC1 series. Electrical latching/unlatching with specified voltage pulses. Simple clip-on front mounting with secure screw terminal connections.

Engineered for high-speed switching up to 1200 cycles/hour. Manual unlatching capability enhances control. Power consumption reduction through coil de-energization feature. Certified to international standards IEC, UL, CSA; Green Premium compliant.

Suitable for industrial applications including agriculture, automotive, conveyors, and food processing. Explore more Schneider Electric products and related Contactor Accessories at EnvMart for your industrial automation needs.
