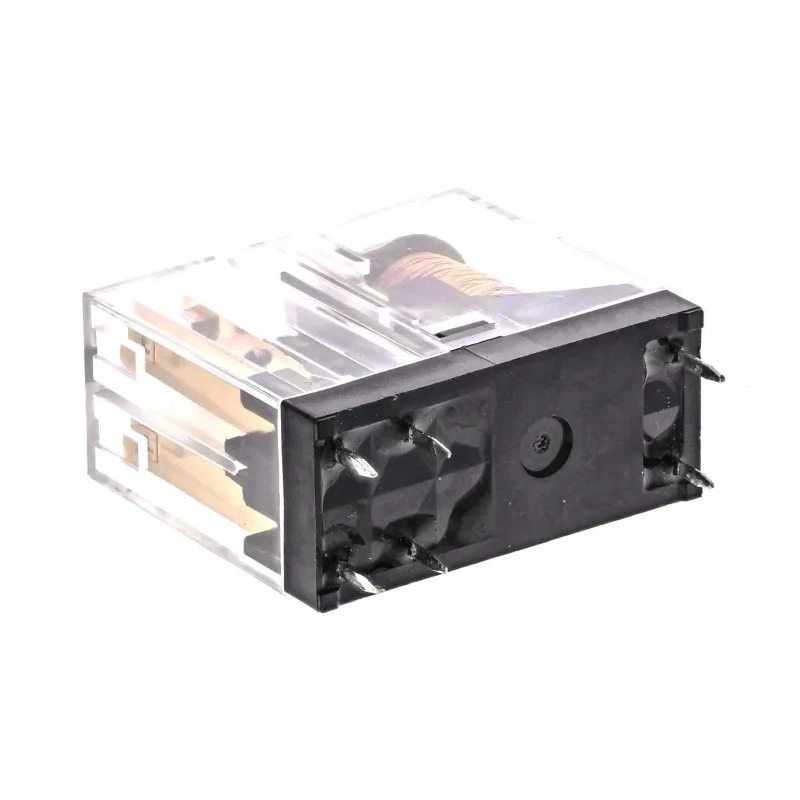

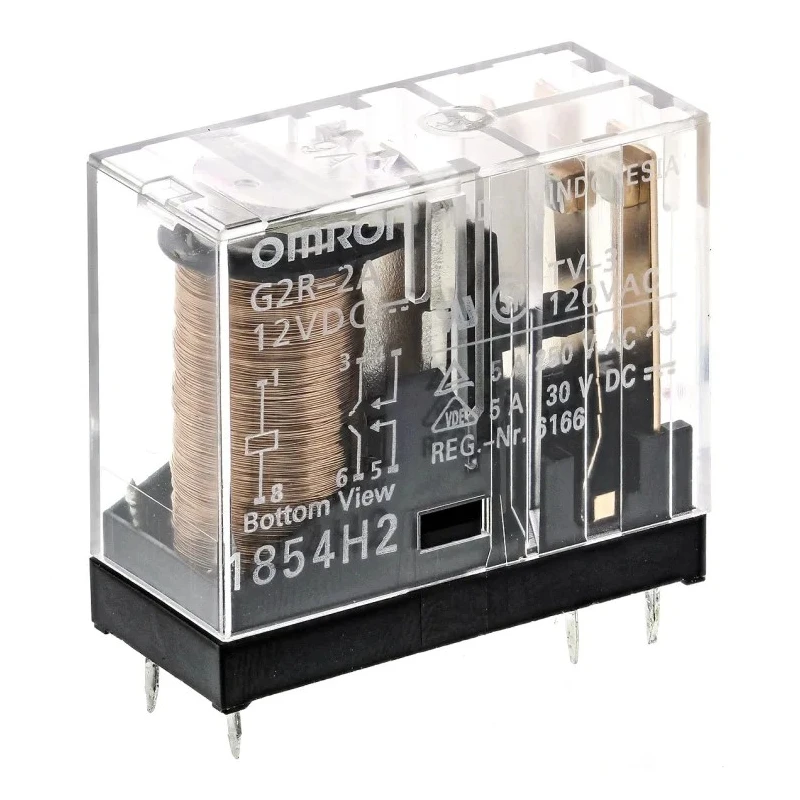

Omron Aratas PCB Power Relay, 12V dc Coil, 5A Switching Current, DPST G2R-2A DC12

Omron G2R-2A DC12 PCB Power Relay is a versatile and reliable component for electrical and automation applications requiring a 12V dc coil and a switching current capacity of 5A. This relay features a DPST (Double Pole Single Throw) contact configuration, making it suitable for controlling two circuits simultaneously, ideal for diverse industrial and commercial machinery where switching dual independent loads is necessary.

The relay's coil voltage of 12V dc provides efficient and stable operation with a coil resistance of 275Ω and a coil power rating of just 0.9VA, minimizing power consumption while maintaining responsiveness. It supports switching of both DC and AC voltages, up to 125V dc and 380V ac respectively, and can handle a switching power of 150W, suitable for moderate power control tasks.

Designed for PCB mounting with solder terminals, the relay ensures secure and compact installation on printed circuit boards, with dimensions of 25.5 mm height, 13 mm width, and 29 mm length, optimizing assembly within constrained spaces. The contact material is silver alloy, offering excellent electrical conductivity and long-term durability. The contact resistance is low at 50 mΩ, ensuring minimal voltage drop and energy loss.

Operating reliably within the temperature range of -40°C to 70°C, the G2R-2A DC12 is suitable for harsh environments encountered in manufacturing, automation, HVAC, and other industrial sectors. It adheres to RoHS compliance standards, guaranteeing environmentally responsible manufacturing and safe usage.

This relay is part of the trusted Omron G2R series, widely recognized for its durability, quality, and performance in electrical control applications. Customers can integrate this relay confidently into industrial, laboratory, and commercial equipment demanding reliable power switching and control capabilities.

Operates with 12V dc coil voltage for low power consumption. DPST contact configuration allows switching of two circuits. Supports 5A switching current for moderate load handling. Compact PCB mount design with solder terminals.

Silver alloy contacts ensure longevity and conductivity. Wide operating temperature range from -40°C to 70°C. Complies with RoHS environmental standards. Suitable for electrical, automation, manufacturing, HVAC applications.

Dimensions: 25.5 x 13 x 29 mm fit compact circuit boards. Switches 125V dc and 380V ac voltages safely. Explore more high-quality relays and electronic components in the Electronics & Electricals category at EnvMart to find suitable parts for your automation and control projects.
