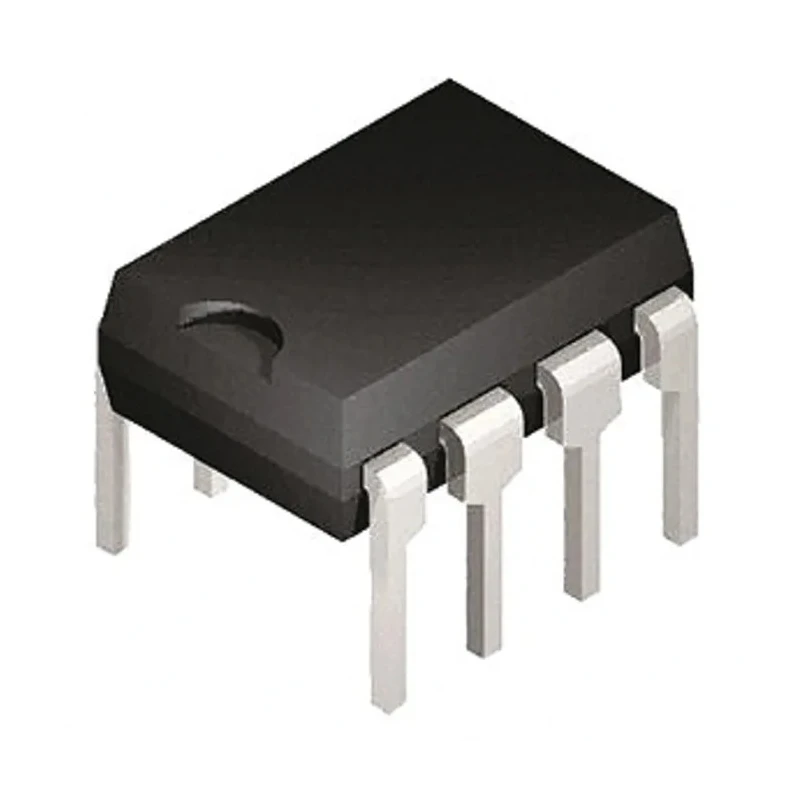

Broadcom Isolation Amplifier 8-Pin 5.5V DIP-8 ACPL-782T-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 1.78mm |
| Length | 9.8mm |
| Model | ACPL-782T-000E |
| Mount Type | Through Hole |
| Series | ACPL-782T |
| Maximum Operating Temperature | 125°C |
| Package Type | DIP-8 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Vos - Input Offset Voltage | 0.3 mV |
| CMRR - Common Mode Rejection Ratio | 76dB |
| Isolation Type | Reinforced |
Key Features
- Designed for precise current and voltage sensing in industrial motor drives and power inverters.
- Offers a minimum supply voltage of 4.5V and maximum of 5.5V.
- Features a reinforced isolation voltage rating of 3750Vrms for enhanced safety.
- Allows operation within a temperature range from -40°C to 125°C.
- Incorporates sigma-delta modulator technology for high common mode rejection ratio of 76dB.
- Comes in a through-hole DIP-8 package with 8 pins.
- Complies with automotive standard AEC-Q100 and meets UL, IEC, CSA, and VDE safety standards.
- Compact device with length of 9.8mm and height of 1.78mm suitable for PCB mounting.
Product Description
Broadcom ACPL-782T-000E is a high-precision isolation amplifier designed for industrial environments requiring reinforced isolation and accurate measurement. This device operates from a 4.5V to 5.5V supply voltage range, ideal for current and voltage sensing in motor drives, power inverters, and voltage isolation circuits. The 8-pin DIP-8 through-hole package provides easy integration into printed circuit boards.
The amplifier utilizes sigma-delta modulator technology, enabling precise measurement of phase currents and bus voltages with a high common mode rejection ratio (CMRR) of 76dB. Its reinforced isolation voltage of 3750Vrms ensures safety and protects downstream circuitry from high-voltage transients.
It features a wide operating temperature range from -40°C up to 125°C, making it suitable for harsh industrial and automotive applications. Certified to automotive standard AEC-Q100 and safety standards UL 1577, IEC 60747-5-5, CSA, and DIN EN 60747-5-2 (VDE 0884 Teil 2), the ACPL-782T-000E meets rigorous quality and reliability criteria.
This isolation amplifier is an excellent choice for replacing Hall Effect amplifiers in power converter designs requiring precise linear isolation. Its compact dimensions of 9.8mm length and 1.78mm height make it adaptable to space-constrained applications.
Designed for precise current and voltage sensing in industrial motor drives and power inverters. Minimum supply voltage of 4.5V and maximum of 5.5V; sigma-delta modulator technology. Reinforced isolation voltage performance of 3750Vrms for safety.
Operates from -40°C to 125°C for robust industrial and automotive use. High common mode rejection ratio of 76dB ensures accurate signal integrity. Complies with automotive and international safety standards including AEC-Q100 and UL 1577.
Compact and easy-to-mount through-hole DIP-8 package with 8 pins.
This Broadcom isolation amplifier is widely used in industrial automation, power management, motor control, and electrical measurement systems. Its robust design and certified quality make it reliable for stringent industrial, automotive, laboratory, and manufacturing applications.
Explore more industrial-grade Isolation Amplifiers and related components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 4.5V to 5.5V.
It features a reinforced isolation voltage rating of 3750Vrms, ensuring enhanced safety.
The CMRR for this isolation amplifier is 76dB, providing high signal integrity.
This unit operates within a temperature range of -40°C to 125°C, suitable for harsh environments.
It comes in a through-hole DIP-8 package with 8 pins, facilitating easy PCB integration.
It complies with the automotive standard AEC-Q100, ensuring reliability for automotive applications.
This isolation amplifier has a single channel configuration.
The dimensions of this model are 1.78mm in height and 9.8mm in length.
It incorporates sigma-delta modulator technology for precise measurement capabilities.
It meets several safety standards, including UL 1577, IEC 60747-5-5, CSA, and DIN EN 60747-5-2 (VDE 0884 Teil 2).
This model is designed for precise current and voltage sensing in industrial motor drives and power inverters.
The input offset voltage (Vos) for this device is 0.3 mV, contributing to its measurement accuracy.
