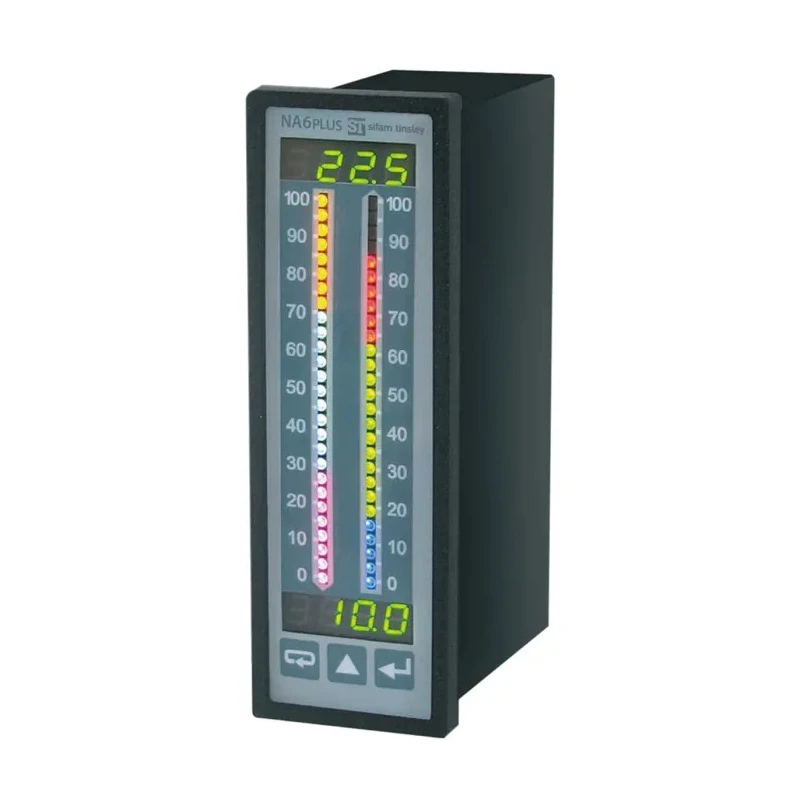

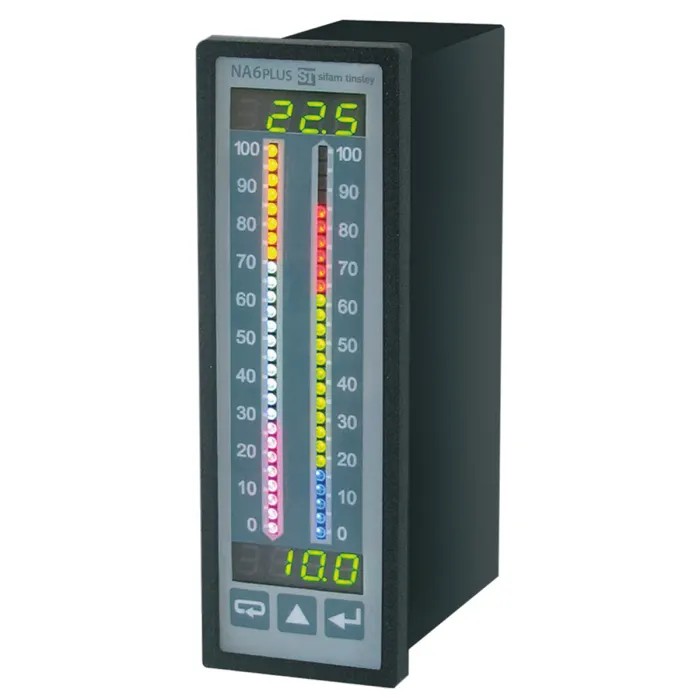

Sifam Tinsley LED Digital Panel Multifunction Meter for Resistance, Temperature, Voltage, Current NA6PLUS-TRGU14100U0

Sifam Tinsley NA6PLUS-TRGU14100U0 is a high-performance LED Digital Panel Multifunction Meter designed for precise measurement of resistance, temperature, voltage, and current. With a compact panel cutout size of 137.5 mm x 44 mm and a depth of 100 mm, this meter integrates seamlessly into industrial control panels and automation systems.

The instrument features a bright 4-digit LED display with digit height of 7 mm, providing clear readings even in challenging environments. It is engineered to operate reliably in ambient temperatures ranging from -10°C to 55°C, making it suitable for diverse industrial and laboratory applications.

This multifunction meter supports 3 or 7-colour bargraph displays with programmable color switching for intuitive visual feedback. It includes data logging capabilities, storing 800 samples with 2 independent universal input channels, enabling detailed process monitoring.

Advanced programmable functions include 21-point scaling, bargraph magnification, and up to 8 alarm outputs that can be triggered based on the rate of change of measured signals. Mathematical operations can be performed on input channels to enhance analysis capabilities.

Communication protocols such as RS485 and Modbus allow easy integration into SCADA systems, facilitating remote monitoring and control. The meter can convert any measured parameter into standard current or voltage analog output signals, enhancing versatility.

Designed and manufactured to meet stringent industrial standards EN 61000-6-2, EN 61000-6-4, and EN 61010-1, this meter ensures safety and electromagnetic compatibility in industrial environments.

This device is ideal for use in industrial automation, process control, electrical testing, HVAC systems, manufacturing, and laboratory instrumentation where accurate multi-parameter measurement is crucial.

Explore our catalog for more advanced Panel Meters and measurement instruments from Sifam Tinsley for your professional and industrial needs. Measures multiple electrical properties including resistance, temperature, voltage, and current.

Features a clear 4-digit LED display for easy readability. Compact panel cutout dimensions of 137.5 mm height by 44 mm width with 100 mm depth. Operates reliably within temperature range from -10°C to 55°C. Includes advanced multifunction capabilities with 3 or 7-colour programmable bargraph.

Supports data logging with 800 sample points and 2 independent universal input channels. Provides up to 8 programmable alarm outputs triggered by signal changes. Offers communication interfaces including RS485 and Modbus for SCADA integration.

Converts measured values into current or voltage analog signals for flexible output. Complies with EN 61000-6-2, EN 61000-6-4, and EN 61010-1 standards ensuring industrial-grade performance.
