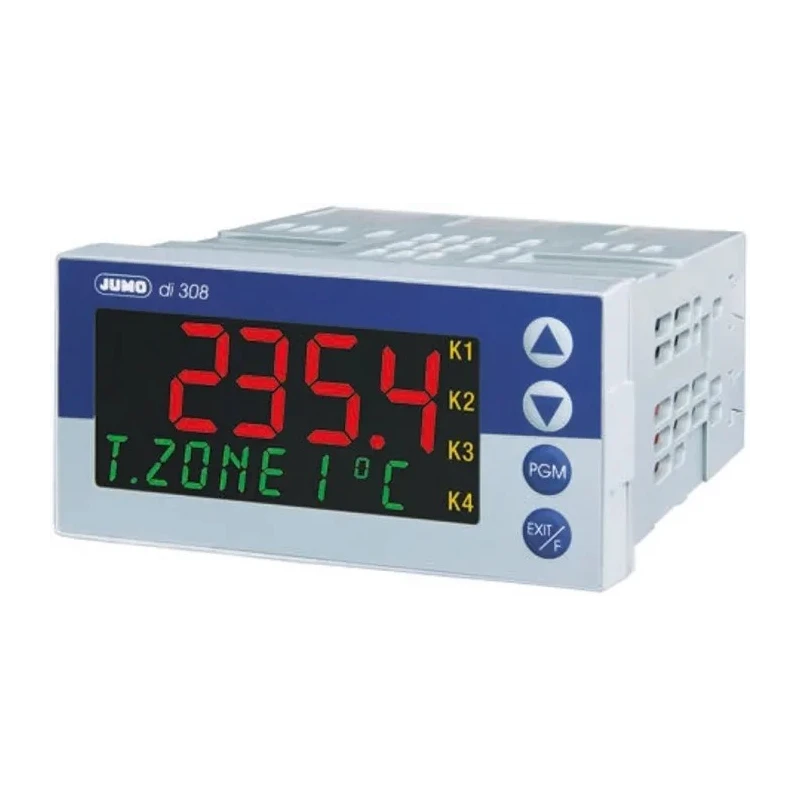

Jumo di 308 LCD Multi-Function Panel Meter for Current, Pressure, Voltage, Temperature, 48 × 96 mm 701550/181-000-23/000

The Jumo di 308 LCD Multi-Function Panel Meter, model 701550/181-000-23/000, is a robust and advanced digital instrument engineered for monitoring and displaying vital process parameters including current, pressure, voltage, and temperature. Featuring a 48 mm × 96 mm cutout, it is suitable for installation in process control panels and industrial automation systems.

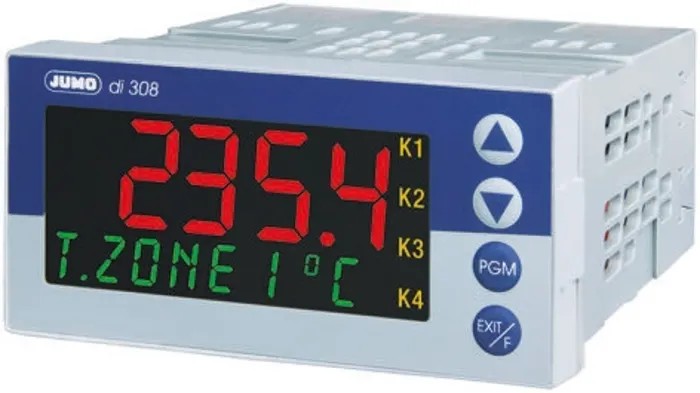

Equipped with a high-contrast, multicolour LCD screen, the panel meter provides both a 5-digit, 7-segment display for main measurements and an 8-character, 16-segment auxiliary display capable of colour changeover. This allows for dynamic presentation of values, parameter names, channel indications, alarm texts, or graphical bar displays, making it highly adaptable for operator use.

The device accepts universal analogue input signals and features three expansion slots for optional inputs, outputs, and communication interfaces, supporting diverse process monitoring requirements. Configuration can be performed rapidly using the dedicated setup program for straightforward parameterization and custom process display text (up to 24-character ticker).

Communication options include RS422/485 and PROFIBUS-DP network interfaces, enabling seamless integration into industrial automation and process control systems for remote data acquisition and monitoring.

The instrument incorporates four switch status indicators for binary outputs and four limit comparators, adding flexibility for alarm processing or control tasks. DIN installation housing ensures standardized mounting and IP65 protection for the front panel, with IP20 at the back.

The electrical connection is handled via rear screw terminals to provide reliable and secure installation. The meter operates within a temperature range of 0°C to 55°C, with maximum input measurement capability up to 600°C, making it ideal for applications in process, HVAC, laboratory, and industrial environments.

Key technical features include configurable display, dual display segments, universal analogue input, expansion capability, and compatibility with industry-standard communication protocols. The product meets cULus, ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007, EN 61010, and EN 61326-1 Class B certifications.

Typical use cases range from process monitoring in manufacturing plants, laboratory temperature and pressure measurements, HVAC system diagnostics, to electrical panel instrumentation in commercial and industrial settings.
