RS PRO LED Digital Panel Multifunction Meter for Frequency, Current, Hour, Voltage, Rotational speed, 92 mm x 92 AP05

Free Delivery in India | Lowest Global Shipping Charges

RS PRO LED Digital Panel Multifunction Meter for Frequency, Current, Hour, Voltage, Rotational speed, 92 mm x 92 AP05

Name: RS PRO LED Digital Panel Multifunction Meter for Frequency, Current, Hour, Voltage, Rotational speed, 92 mm x 92 AP05
Brand: RS PRO
SKU: 94120
Price: 99 USD
Availability: InStock



Category Panel Meters Brand RS PRO Condition New

Specifications

Country of Origin	India
Display Type	LED
Brand	RS PRO
Model	AP05
Depth	55mm
Series	AP05
Maximum Operating Temperature	55°C
Meter Type	Digital
Number Of Digits	3
Minimum Operating Temperature	-10°C
Digit height	14mm
Properties Measured	Frequency, Current, Hour, Voltage, Rotational speed
Cutout Height	92mm
Cutout Width	92mm
Standards/ApprovalsIEC 60529, IEC 61010-1	2001, IEC 61326-1:2005

Key Features

Features a LED display with 3 digits and 14 mm digit height for clear readings.
Designed for industrial and commercial electrical monitoring applications.
Operates within temperature range of -10°C to 55°C ensuring reliability in diverse environments.
Measurement range includes up to 5 A current and 500 V AC RMS input voltage.
Depth of unit is 55 mm for compact installation.
Display supports monitoring of parameters like on hour, run hour, RPM, and voltage.

Product Description

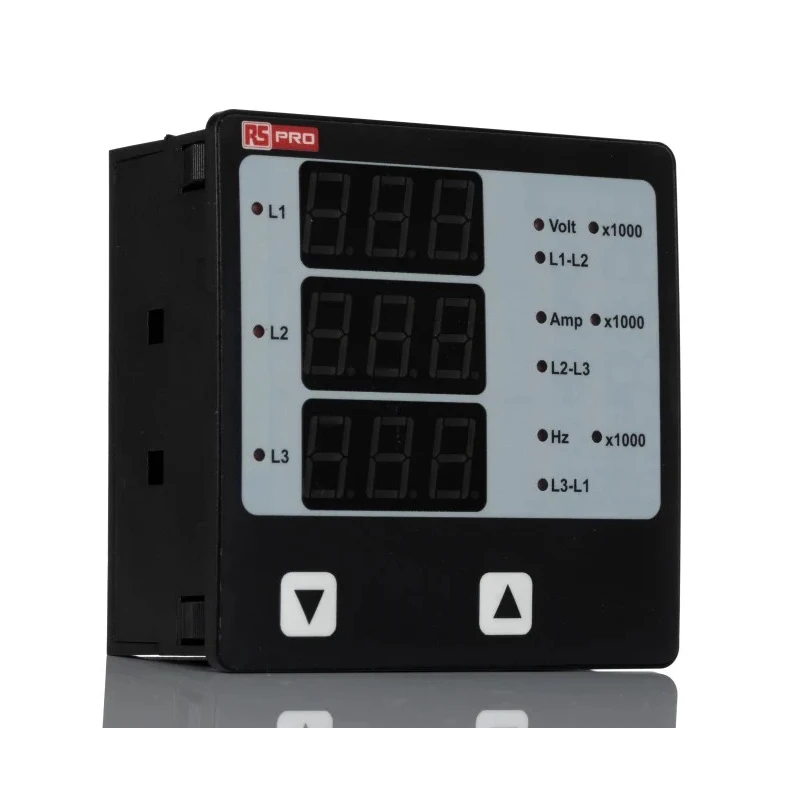

RS PRO AP05 LED Digital Panel Multifunction Meter is a versatile instrument designed to measure key electrical parameters including frequency, current, hour, voltage, and rotational speed. The meter features a robust LED display housed in a 92 mm x 92 mm cutout panel, providing clear visibility with its 3-digit, 14 mm high digits.

This digital meter is suitable for industrial and commercial environments such as production lines, power plants, electrical load monitoring equipment, and test benches. It offers reliable monitoring of essential electrical values with programmable display options for various measurements like AC voltage, current, frequency, on hour, run hour, and RPM.

The meter is engineered to operate within a temperature range from -10°C to +55°C, ensuring dependable performance across diverse ambient conditions. The compact depth of 55 mm facilitates integration into existing control panels without occupying excessive space.

Meeting international standards IEC 60529, IEC 61010-1:2001, and IEC 61326-1:2005, this device guarantees compliance with safety and performance requirements. It supports measurement ranges up to 5 A for current and 500 V AC RMS for voltage, with a minimum measurement capability of 1 A and 100 V respectively.

LED display provides easy-to-read measurements with high contrast digits. Compact 92 mm x 92 mm panel cutout dimensions enable versatile installation. Robust operating temperature range suitable for industrial environments.

Comprehensive measurement functions for current, frequency, voltage, and rotational speed. Certified for quality and safety by major IEC standards. Ideal for integration into electrical load monitoring and process control systems.

Efficient replacement for analogue meters with advanced digital performance.

This multifunction meter is a reliable choice for professionals seeking precise electrical measurement tools in industrial automation, manufacturing, power distribution, and HVAC sectors. Explore more in the Measuring & Testing Instruments category on EnvMart for compatible monitoring solutions.

Explore more products in our Panel Meters category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model measures frequency, current, hour, voltage, and rotational speed, providing a comprehensive overview of electrical parameters.

It supports a maximum current input of 5 A and a maximum voltage input of 500 V AC RMS.

The operating temperature range is from -10°C to +55°C, allowing it to function reliably in various environments.

The panel cutout dimensions are 92 mm x 92 mm, making it suitable for standard panel installations.

The depth of this unit is 55 mm, facilitating compact installation in control panels.

It features an LED display with 3 digits and a digit height of 14 mm for clear visibility of measurements.

It meets the international standards IEC 60529, IEC 61010-1:2001, and IEC 61326-1:2005 for safety and performance.

Yes, it is designed for industrial and commercial electrical monitoring applications, including production lines and power plants.

The minimum measurement capability is 1 A for current and 100 V for voltage, allowing for a wide range of monitoring.

Yes, its compact depth of 55 mm allows for easy integration into existing control panels without excessive space usage.

It is suitable for diverse environments due to its operating temperature range and robust design, making it ideal for industrial settings.

This multifunction meter provides advanced digital performance, offering precise measurements and programmable display options, making it an efficient replacement for analogue meters.
