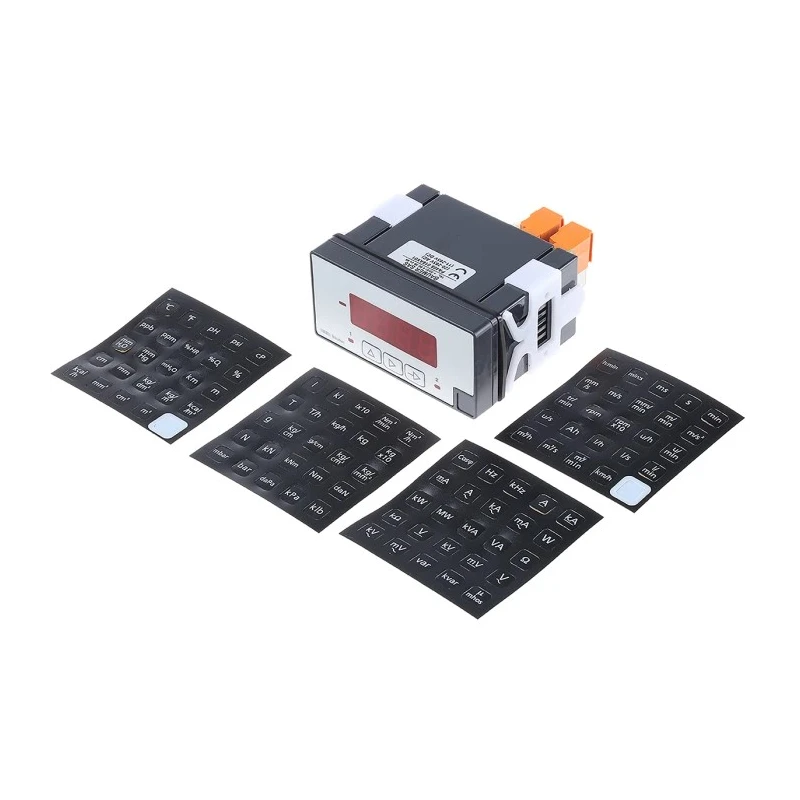

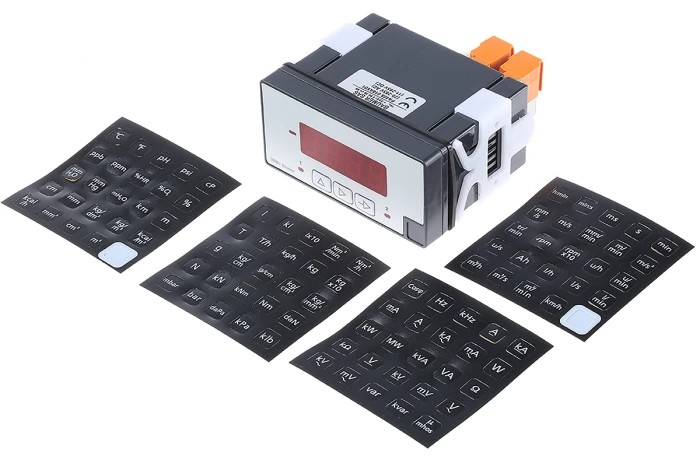

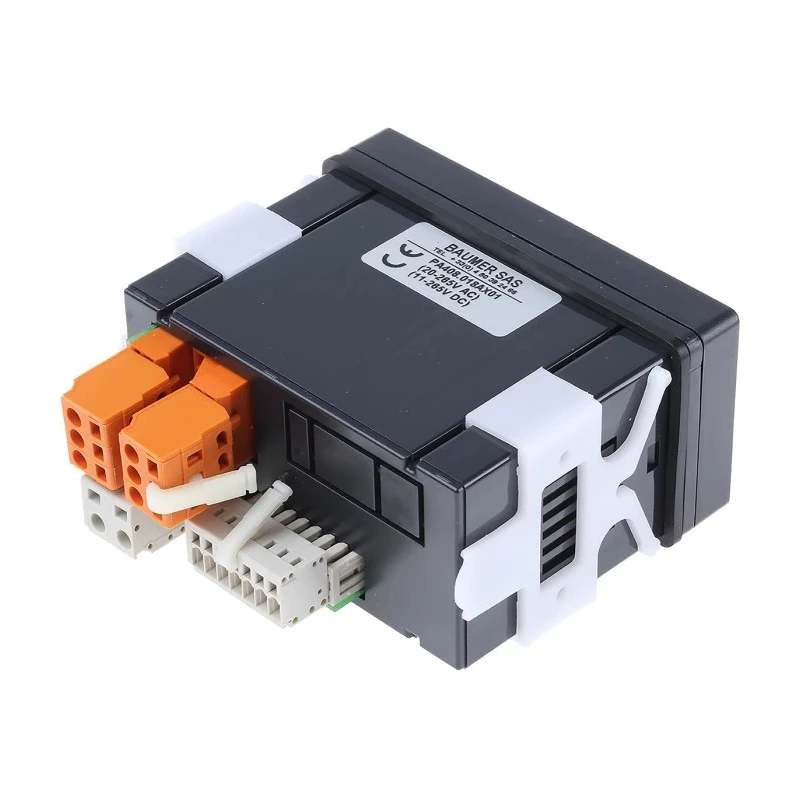

Baumer LED Digital Panel Multifunction Meter for Resistance, Current, Voltage, Temperature, 45 mm x 93 mm PA408

Baumer PA408 LED Digital Panel Multifunction Meter is a versatile electrical meter designed for industrial and process control applications, enabling measurement of resistance, current, voltage, and temperature within a compact panel cutout of 45 mm height and 93 mm width.

This multifunction meter features a configurable indicator with process input voltage capability of ±10V and an input current measurement range of ±20 mA. It supports voltage measurement up to ±200 VDC, making it suitable for precise electrical diagnostics and monitoring tasks.

Equipped with two alarm outputs and a 24VDC sensor excitation supply, it provides integration capabilities for complex process control systems. The LED display with a digit height of 14 mm ensures clear readability even in varying lighting conditions.

The device supports a potentiometer input range from 100 ohms to 100 kilo-ohms and a resistance input range spanning from 0.1 ohms to 50.99 kilo-ohms, catering to multiple sensing requirements. Its refresh time of 50 milliseconds allows near real-time data presentation.

The meter operates reliably in a broad temperature range from -10°C to 60°C, suitable for various industrial environments. Its compact depth of 90 mm enables installation in panels where space optimization is critical.

Baumer’s PA408 meter conforms to important international standards including CE certification, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007, ensuring compliance with safety and quality benchmarks.

Configurable indicator with ±10V input voltage and ±20mA input current capability. Measures current, voltage, temperature, and resistance accurately. Two alarm outputs with 24VDC sensor excitation for control system integration.

Bright LED display with 4 digits and 14 mm digit height for clear visibility. Compact panel cutout size: 45 mm x 93 mm with 90 mm depth. Operating temperature range: -10°C to 60°C, suitable for industrial environments. Potentiometer input range from 100 Ω to 100 kΩ and resistance range from 0.1 Ω to 50.99 kΩ.

Refresh time of 50 milliseconds for fast response. Complies with CE, ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007 standards.

This LED digital panel multifunction meter is ideal for industrial, electrical, and process automation applications where compact size, accurate multi-parameter measurement, and compliance with international standards are required.
