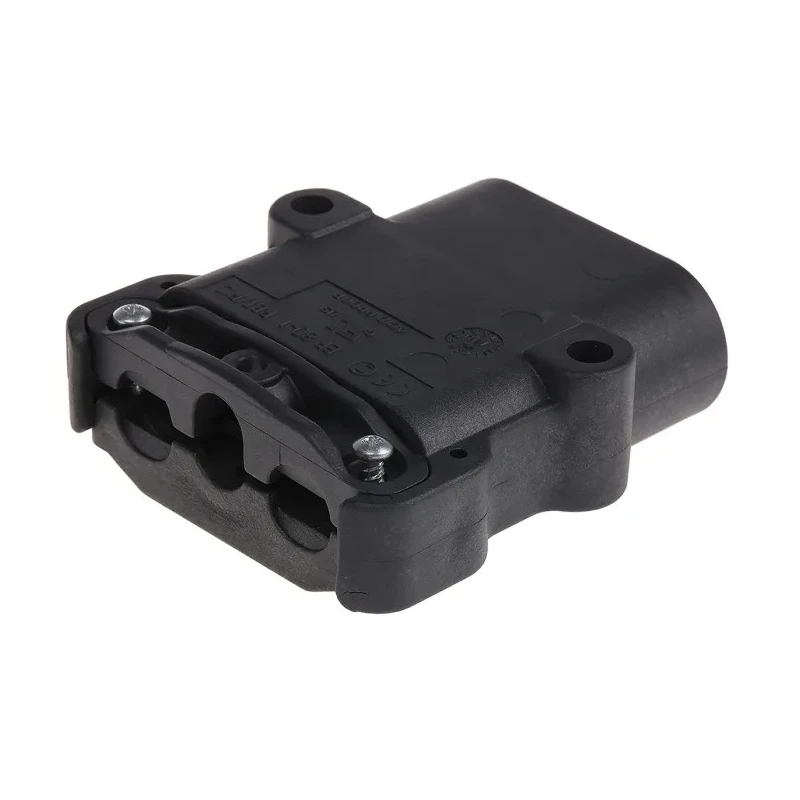

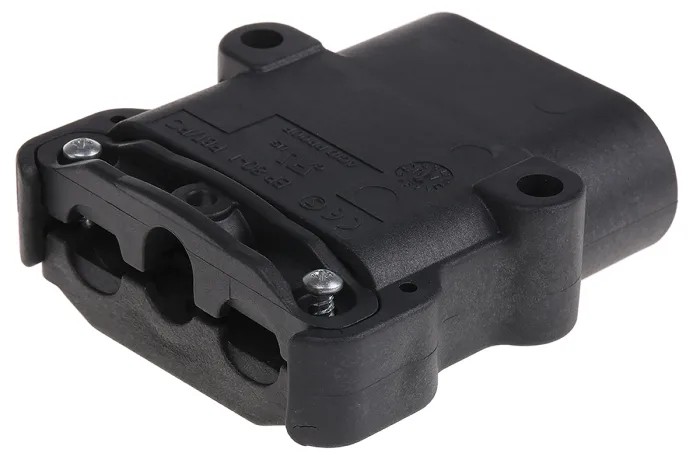

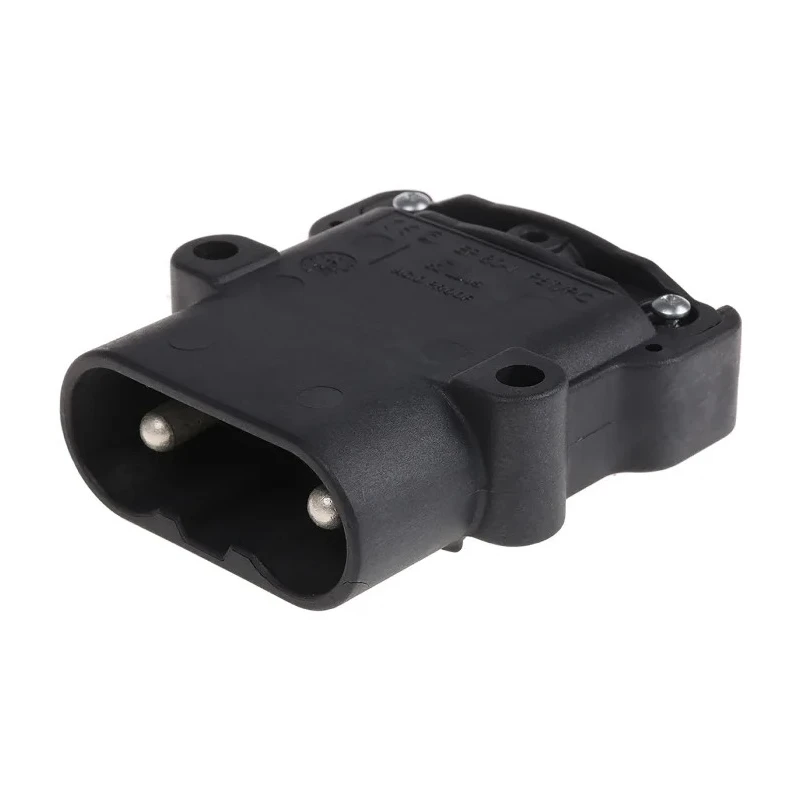

Anderson Power Products E80 Series 2 Way Male Battery Connector, Straight, Feed Through, 600V, 80A E80425-0009

Anderson Power Products E80425-0009 is a high-performance 2 Way Male Battery Connector from the E80 Series, designed for use in demanding industrial and electronic applications. Rated at 600 volts and capable of handling 80 amps of current, this connector offers a reliable connection solution for DC power systems requiring feed through mounting and a straight orientation.

The connector housing is made from durable polybutylene terephthalate (PBT), which provides sturdy mechanical protection and superior resistance to chemicals and temperature extremes. The contacts consist of copper alloy with a silver plating, ensuring optimal electrical conductivity and minimal voltage drop during operation.

Installation is simplified with solder termination type and feed through mounting, making it suitable for secure and permanent electrical connections. Operating temperature ranges from -20°C to 105°C allow use in diverse environmental conditions without performance degradation.

This connector series conforms to DIN 43589-1 voltage keying standards, guaranteeing dimensional compatibility and mating with other manufacturers' APP "E" series connectors. It is ideal for use in battery connectors, power supplies, and DC power distribution within industrial, laboratory, manufacturing, and other commercial systems.

Features such as robust polymer housings, IP23 protection class, and reliable silver-plated copper contacts extend connector life and performance in harsh battery environments. The product complies with RoHS directives, supporting environmentally responsible electronics manufacturing.

Constructed with sturdy polybutylene terephthalate housing for durability. Features two contacts with male connector gender for secure mating. Contacts are made from copper alloy plated with silver for superior conductivity.

Designed for solder termination and feed through mount type installation. Operates reliably between -20°C minimum and 105°C maximum temperatures. Compliant with APP DIN connectors and dimensional standards DIN 43589-1. Provides excellent corrosion resistance and long service life in battery environments.

Supports industrial and electronic applications requiring robust DC power connections. Offers mating compatibility with APP "E" series connectors and other manufacturers' connectors.

This connector is categorized under Power Connectors in the Electronics & Electricals segment at EnvMart. Explore related Anderson Power Products connectors for complementary solutions.
