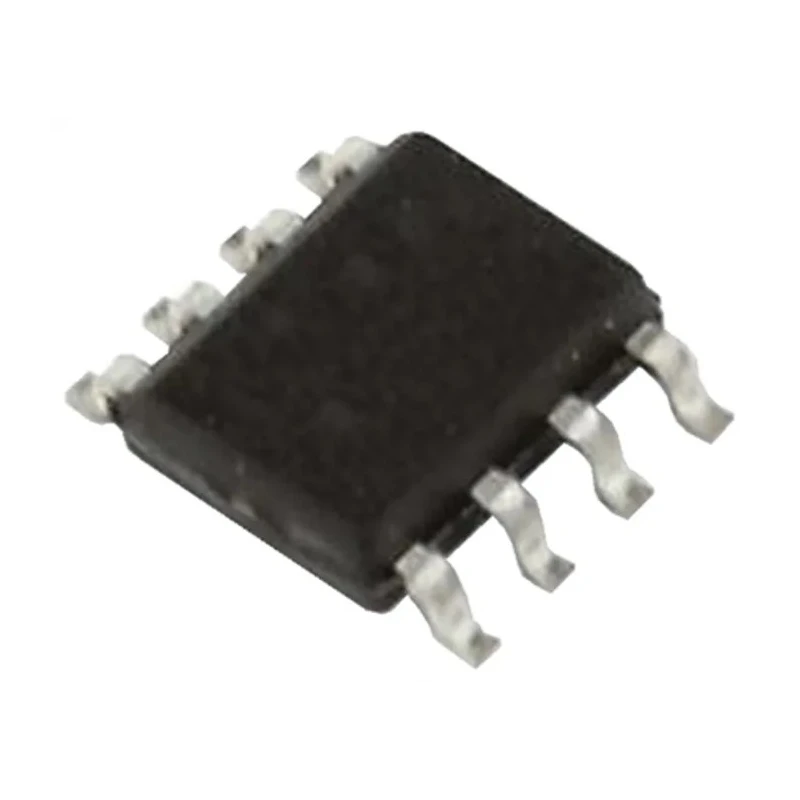

Texas Instruments I2C Voltage Level Translator 5V, Bi-Directional, 8-Pin SSOP PCA9306DCTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.3mm |
| Length | 4.25mm |
| Model | PCA9306DCTR |
| Mount Type | Surface |
| Output type | 3 State |
| Series | PCA9306 |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 5V |
| Logic Family | I2C |
| Logic Function | Voltage Level Translator |
| Minimum Supply Voltage | 0mV |
| Maximum High Level Output Current | 128mA |
| Maximum Propagation Delay Time @ CL | 1.5ns |
| Direction Type | Bi-Directional |
| Translation | Voltage Level |
Key Features
- This device supports I2C and SMBus protocols for reliable communication.
- It operates with a maximum supply voltage of 5V, accommodating voltage translation needs.
- The translator is bi-directional, allowing voltage shifting in both directions.
- Features a maximum high level output current of 128mA for robust signal driving.
- Compact 8-pin SSOP package with small dimensions aids in space-saving PCB designs.
- Designed for surface mount applications suitable for automated assembly.
- Operates reliably across a wide temperature range of -40°C to 85°C for industrial environments.
- Has a maximum propagation delay of 1.5ns at typical load capacitance, ensuring fast transitions.
Product Description
Texas Instruments PCA9306DCTR is a high-performance I2C voltage level translator designed for bi-directional signal translation between different voltage levels up to 5V. Packaged in a compact 8-pin SSOP suitable for surface mounting, this device is ideal for modern electronic applications requiring robust communication interfacing.
This translator supports the I2C and SMBus protocols, enabling seamless multi-master and multi-slave interconnectivity on serial computer buses commonly used in industrial, laboratory, and commercial electronics.
Equipped with two translation elements per chip and a maximum high-level output current of 128mA, it drives signals effectively while maintaining signal integrity, suitable for system designers requiring reliable data transmission.
The device operates reliably over a wide temperature range of -40°C to 85°C, making it suitable for harsh environments such as industrial automation, instrumentation, and embedded systems.
Its small form factor (length 4.25mm, height 1.3mm) and surface mount design allow for compact PCB layouts and automated manufacturing, enhancing production efficiency. Supports I2C and SMBus communication protocols. Bi-directional voltage level translation up to 5V.
Two translator elements per chip for multiple signal lines. High maximum output current of 128mA ensures strong signal drive. Compact 8-pin SSOP package for space saving designs. Surface mount technology compatible package.
Wide operating temperature range from -40°C to 85°C. Fast maximum propagation delay of 1.5ns at standard load capacitance. Three-state output type for bus sharing capability.
This device is essential for applications in industrial control systems, digital communication equipment, embedded electronics, and laboratory instruments where voltage level compatibility is critical.
Explore more semiconductor and translation ICs at EnvMart to find suitable components for your next electronics project.
Explore more products in our Translator ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5V, accommodating various voltage translation needs.
It supports I2C and SMBus protocols, enabling reliable communication in multi-master and multi-slave configurations.
The maximum high-level output current is 128mA, which ensures effective signal driving capabilities.
This model comes in an 8-pin SSOP package, designed for surface mount applications.
It operates reliably across a wide temperature range of -40°C to 85°C, making it suitable for industrial environments.
The maximum propagation delay is 1.5ns at typical load capacitance, ensuring fast signal transitions.
The PCA9306DCTR features two translation elements per chip, allowing for multiple signal lines to be translated.
It has a three-state output type, which facilitates bus sharing capabilities.
Yes, its compact 8-pin SSOP package is designed for surface mount applications, making it suitable for automated assembly.
This model belongs to the I2C logic family, specifically designed for voltage level translation.
The country of origin for this device is India.
It is suitable for applications in industrial control systems, digital communication equipment, embedded electronics, and laboratory instruments.
