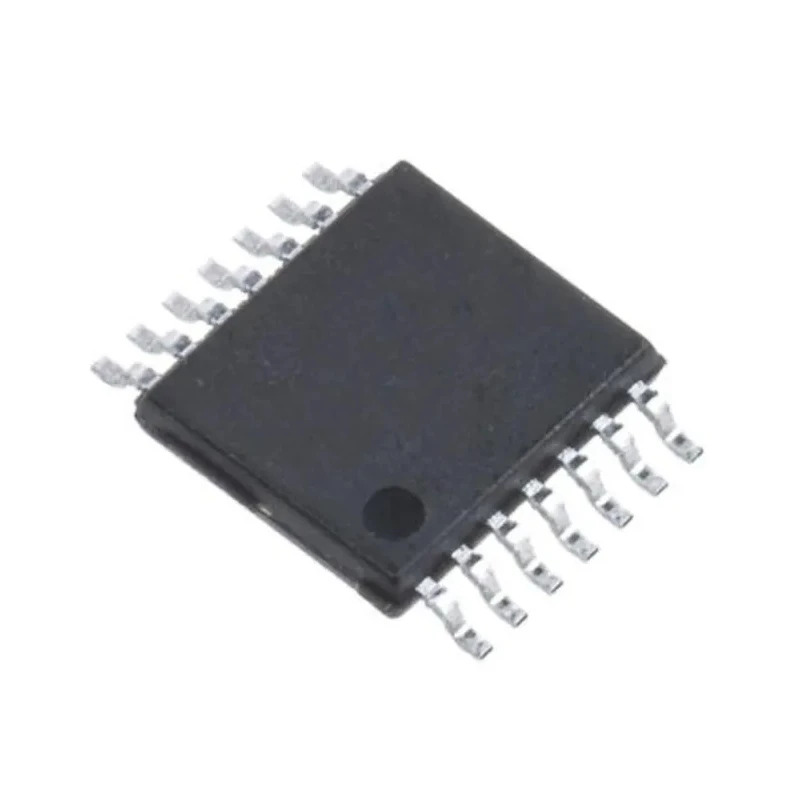

Maxim Integrated Voltage Level Translator 4 Bi-Directional, 14-Pin TSSOP MAX3393EEUD+
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 0.95mm |
| Length | 5.1mm |
| Model | MAX3393EEUD+ |
| Mount Type | Surface |
| Output type | Open Drain, 3 State |
| Series | MAX3393E |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 14 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | BiCMOS |
| Logic Function | Voltage Level Translator |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | 0.02μA |
| Maximum Propagation Delay Time @ CL | 20ns |
| Direction Type | Uni-Directional |
| Maximum Low Level Output Current | 1μA |
| Translation | Bi-Directional |
Key Features
- This voltage level translator supports bi-directional translation for versatile interfacing.
- It features a 14-pin TSSOP surface mount package for compact design.
- Operating voltage range supports from 1.65V to 5.5V to accommodate various devices.
- Maximum propagation delay time is 20ns ensuring fast signal translation.
- Low supply current of typically 130μA enhances energy efficiency.
- Translation guaranteed for data rates up to 16Mbps under specified voltage conditions.
- Operating temperature range from -40°C to +85°C allows use in diverse environments.
- Includes robust ±15kV ESD protection on I/O and VCC lines.
Product Description
Maxim Integrated MAX3393EEUD+ is a highly efficient voltage level translator providing 4 bi-directional channels designed to facilitate seamless voltage translation in modern electronic systems. Housed in a 14-pin TSSOP surface mount package, it offers compactness suitable for space-constrained circuit designs.
This device supports a wide operating voltage range from 1.65V up to 5.5V and features a maximum propagation delay time of 20ns, ensuring reliable and swift signal processing. Its ultra-low quiescent current of 130μA in three-state output mode ensures energy-efficient operation which is critical in battery-powered portable devices. The translator supports guaranteed data rates of up to 16Mbps depending on the voltage levels, making it compatible with fast serial interfaces.
The MAX3393EEUD+ provides ±15kV ESD protection on I/O and VCC lines, increasing the robustness and longevity of the components in various industrial and commercial environments. This voltage level translator supports bi-directional translation for versatile interfacing.
It features a 14-pin TSSOP surface mount package for compact design. Operating voltage range supports from 1.65V to 5.5V to accommodate various devices. Maximum propagation delay time is 20ns ensuring fast signal translation.
Low supply current of typically 130μA enhances energy efficiency. Translation guaranteed for data rates up to 16Mbps under specified voltage conditions. Operating temperature range from -40°C to +85°C allows use in diverse environments.
Includes robust ±15kV ESD protection on I/O and VCC lines. Ideal for applications such as cell phones, GPS, and portable communication devices. This component is well-suited for industrial, telecommunications, consumer electronics, and portable communication device applications requiring precise voltage level translation.
Explore other Semiconductor and Translator IC products on EnvMart for a comprehensive range of voltage translation solutions.
Explore more products in our Translator ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage range for this model is from 1.65V to 5.5V.
It supports 4 bi-directional channels for voltage translation.
The maximum propagation delay time is 20ns.
The typical supply current is 130μA in three-state output mode.
It supports guaranteed data rates of up to 16Mbps under specified voltage conditions.
The dimensions are 5.1mm in length and 0.95mm in height.
It uses a 14-pin TSSOP surface mount package.
The operating temperature range is from -40°C to +85°C.
It provides an open drain, 3-state output type.
It includes robust ±15kV ESD protection on I/O and VCC lines.
It belongs to the BiCMOS logic family.
It is suitable for applications in industrial, telecommunications, consumer electronics, and portable communication devices requiring voltage level translation.
