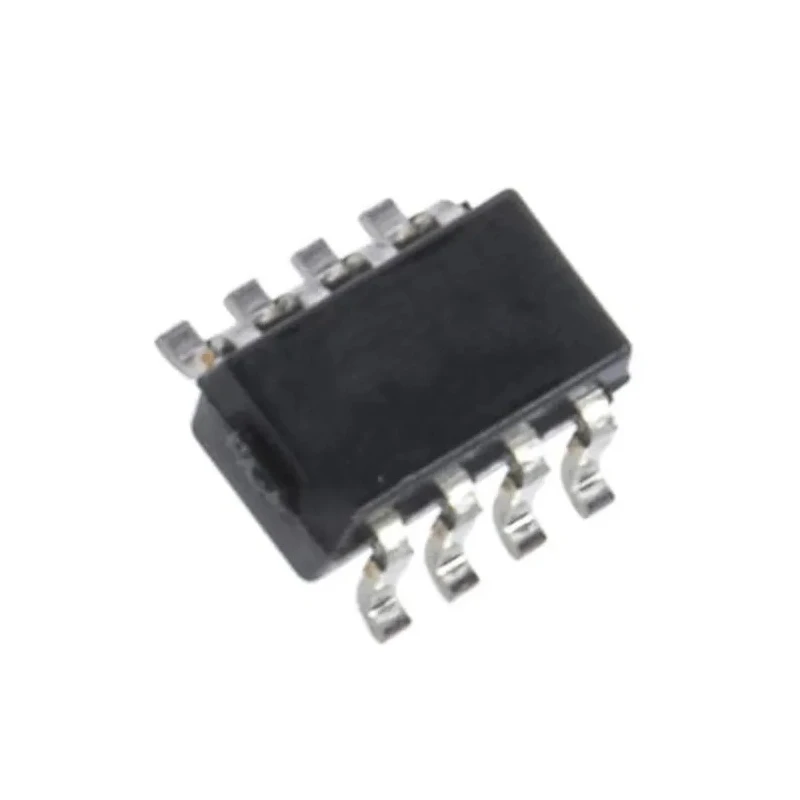

Maxim Integrated Transmitter IC 2 Drivers CMOS LVTTL to LVDS 500 Mbps 8-Pin SOT-23 MAX9112EKA+T

Maxim Integrated MAX9112EKA+T is a transmitter IC featuring 2 CMOS/LVTTL input drivers and LVDS output designed for high-speed data transmission at 500 Mbps. It is packaged in an 8-pin SOT-23 surface mount package, facilitating space-saving PCB designs.

This IC operates from a single 3.3 V power supply with a maximum voltage rating of 4 V and has built-in ESD protection ensuring device reliability. The device provides ultra-low pulse skew of a maximum 250 ps, critical for maintaining signal integrity in high-resolution imaging systems such as laser printers and digital copiers.

The MAX9112 supports a wide ambient operating temperature range from -40°C to 85°C, suitable for various industrial and commercial environments. When powered down, its driver outputs enter a high-impedance state to avoid interference within the circuit.

Its flow-through pinout design simplifies PCB layout, and it is ideal for applications requiring low noise and power consumption in high-speed differential signaling. Typical use cases include interface ICs in imaging, communication, and data transfer equipment in industrial, laboratory, manufacturing, and commercial sectors.

This device features ultra-low pulse skew for high-resolution imaging applications. It operates from a single +3.3 V supply with maximum supply voltage up to 4 V. The package type is 8-pin SOT-23 surface mount allowing compact PCB layouts.

The device supports a wide operating temperature range from -40°C to 85°C with ESD protection. Output drivers go to high impedance state when powered off supporting safe system integration. The MAX9112 series is designed for minimal power consumption and noise, ideal for laser printers and digital copiers.
