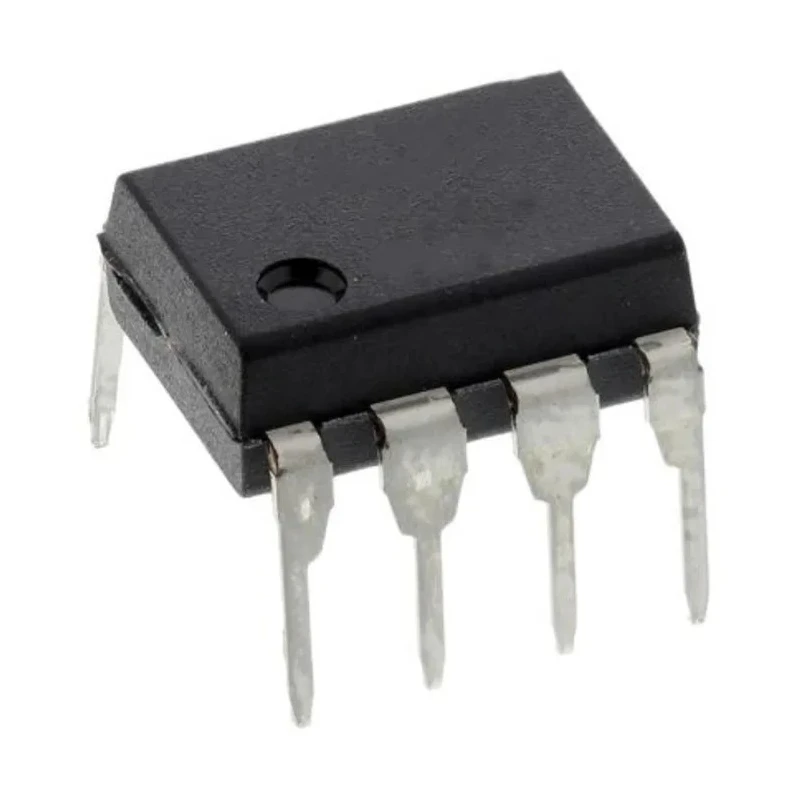

Maxim Integrated Operational Amplifier 40 kHz, 8-Pin DIP, 2.5V to 10V Supply MAX406BCPA+

The Maxim Integrated MAX406BCPA+ is a precision operational amplifier designed for high performance and low power consumption in an 8-pin DIP package. It operates with a single supply voltage ranging from 2.5V up to 10V and delivers a gain bandwidth product of 40 kHz, making it suitable for a wide range of electronic applications.

This amplifier features an ultra-low typical input bias current of 10 pA which allows for high accuracy in sensitive circuits such as electrometer amplifiers and glucose meters. The rail-to-rail output swings and input voltage range that includes the negative rail enable efficient use in battery-powered systems and portable devices.

With a slew rate of 20 V/μs, the MAX406BCPA+ ensures quick response and high-speed signal processing. The device is rated for operation from 0°C to 70°C and supports a maximum output current of 600 μA to drive various loads effectively. Its compact 8-pin DIP surface mount package with dimensions of 9.91 mm by 7.87 mm by 4.45 mm allows for ease of integration into circuit boards.

Applications for the MAX406BCPA+ operational amplifier span multiple industrial and commercial sectors including medical instruments, GPS solutions, intrinsically safe systems, pH meters, photodiode pre-amplifiers, power meters, and programmable logic controllers (PLCs). This part represents a reliable option for designers seeking precision, stability, and energy efficiency in analog signal amplification.

The amplifier offers rail-to-rail output swings suitable for battery-powered applications. Input bias current is ultra-low at 10 pA typical enabling high precision. Slew rate is rated at 20 V/μs ensuring fast signal processing.

Operating temperature range spans from 0°C to 70°C, supporting automotive standard compliance. The package dimensions are 9.91 mm length, 7.87 mm width, and 4.45 mm height. Output current capability up to 600 μA supports a range of load requirements.

Typical input offset voltage is low at 3 mV with an input offset current of 200 μA. Ideal for use in medical instrumentation, GPS solutions, pH meters, and programmable logic controllers. Surface mount DIP package facilitates easy insertion and compatibility with various PCBs.

This product enables enhanced electronics design for industrial, laboratory, automotive, and medical device applications. Explore more precision semiconductor components in the Operational Amplifier category at EnvMart.
