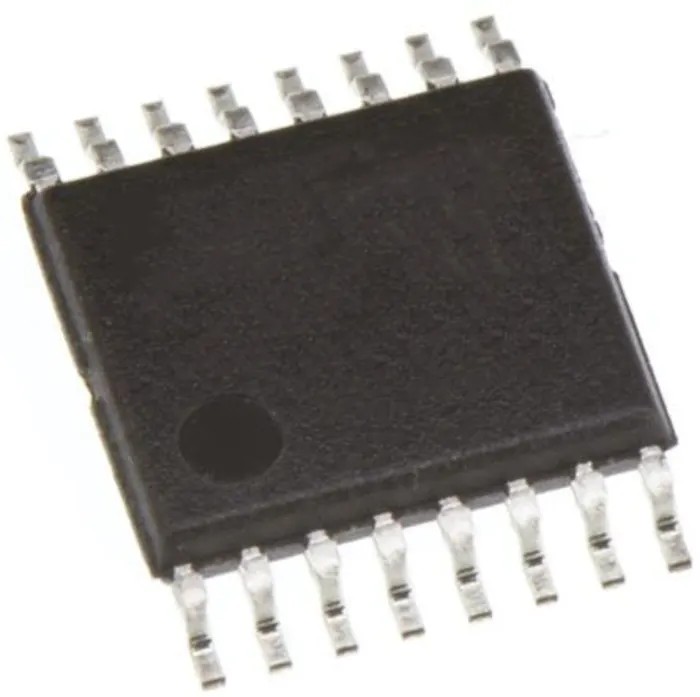

Maxim Integrated Multiplexer 3 CMOS Quad SPST Logic IC, 16-Pin TSSOP Package MAX4712CUE+
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 950μm |
| Length | 5.1mm |
| Model | MAX4712CUE+ |
| Width | 4.5mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | MAX4712 |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 70°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | 0°C |
| Pin Count | 16 |
| Number of Elements per Chip | 3 |
| Maximum Supply Voltage | 11V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -2.7V |
| Multiplexer/Demultiplexer | Multiplexer |
| Maximum On State Resistance | 30Ω |
Key Features
- Operates within a supply voltage range of -2.7V to 11V.
- Features a maximum on-state resistance of 30 ohms ensuring low signal loss.
- Supports quad single-pole single-throw configuration suitable for complex switching applications.
- Surface mount package type with compact dimensions of 5.1mm length and 4.5mm width.
- Capable of rail-to-rail signal handling with fault protection up to ±12V on analog inputs.
- Maximum operating temperature up to 70°C for reliable performance in industrial environments.
- Compatible with both CMOS and TTL logic output types enabling flexible interfacing.
- Ideal for avionics, communication systems, data acquisition, and industrial process control applications.
Product Description
Maxim Integrated MAX4712CUE+ is a high-performance multiplexer designed with 3 CMOS quad single-pole single-throw (SPST) switches in a compact 16-pin TSSOP package. Operating over a wide supply voltage range from -2.7V to 11V, it supports both single- and dual-supply operation, making it adaptable for various electronic systems.
The device features fault-protected analog inputs capable of handling ±12V faults with the power off, and fault-protected digital inputs may exceed the supply rail voltage, contributing to its robustness. Each switch offers a maximum on-state resistance of 30 ohms, with excellent on-resistance matching of 1 ohm between channels to ensure signal integrity.
This multiplexer offers full rail-to-rail signal handling and output clamping to appropriate supply voltages during fault conditions, enhancing reliability in safety-critical systems. It features surface mount TSSOP packaging with compact dimensions measuring 5.1mm in length, 4.5mm in width, and a height of 950μm, suitable for high-density PCB layouts.
Typical applications include avionics, battery-operated systems, communication equipment, data acquisition, industrial and process control systems, redundant/backup systems, and test equipment. It also supports TTL and CMOS-compatible logic inputs and is pin-compatible with the MAX391/MAX392/MAX393 series for easy integration in existing designs.
Operates within -2.7V to 11V supply voltage ranges. Maximum on-state resistance of 30 ohms ensures low signal distortion. Fault-protected analog and digital inputs with rail-to-rail signal handling. Surface mount TSSOP 16-pin package with precise 5.1 x 4.5 mm footprint.
Compatible with CMOS/TTL logic families for versatile application. Temperature ratings from 0°C to 70°C support industrial environments. Ideal for avionics, industrial process controls, and communication systems. Explore more electronic components and multiplexers in EnvMart's broad catalog of semiconductor and logic ICs to meet your design requirements.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of -2.7V to 11V.
The maximum on-state resistance is 30 ohms, ensuring low signal loss.
It comes in a surface mount TSSOP package with dimensions of 5.1mm in length, 4.5mm in width, and a height of 950μm.
The maximum operating temperature is 70°C, suitable for industrial environments.
Yes, it supports both CMOS and TTL logic output types, allowing for flexible interfacing.
Typical applications include avionics, communication systems, data acquisition, and industrial process control.
This model features three CMOS quad single-pole single-throw (SPST) switches.
The dimensions are 5.1mm in length, 4.5mm in width, and 950μm in height.
The minimum operating temperature is 0°C.
It features fault-protected analog inputs that can handle ±12V faults with the power off.
Yes, it is pin-compatible with the MAX391/MAX392/MAX393 series for easy integration into existing designs.
The logic family is CMOS, which allows for compatibility with various electronic systems.
