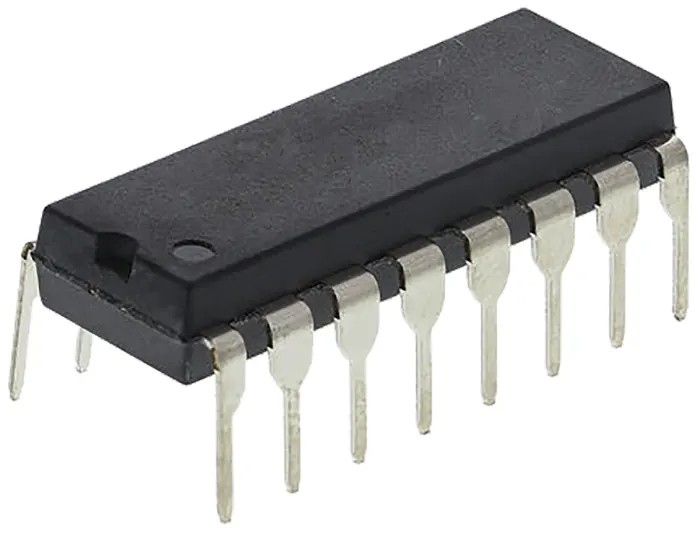

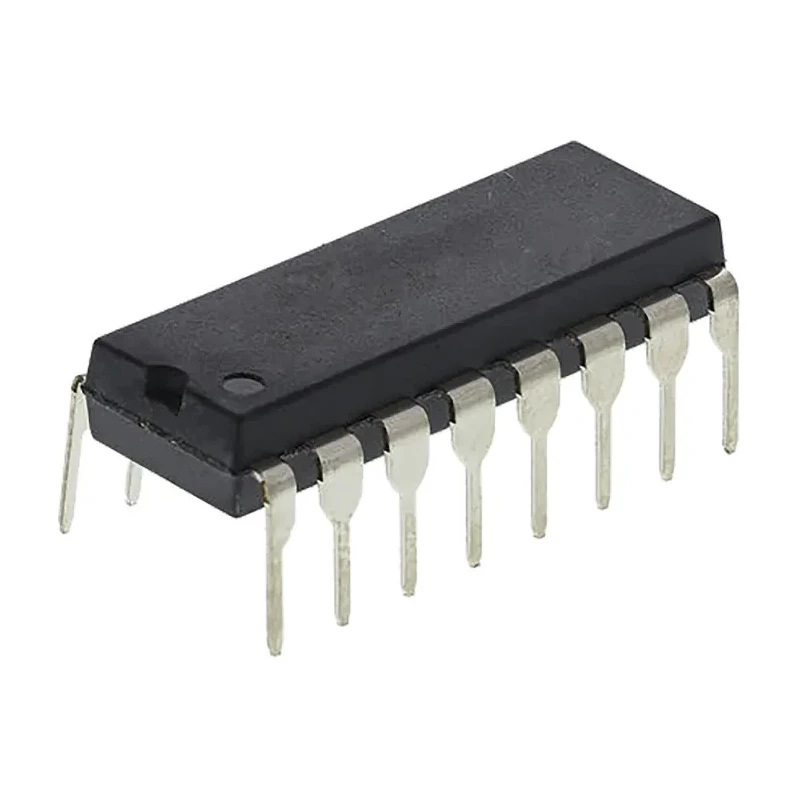

Maxim Integrated Multiplexer, 4 CMOS SPST Elements, 16-Pin PDIP MAX313CPE+

Maxim Integrated MAX313CPE+ is a multiplexer IC designed with 4 CMOS single-pole single-throw (SPST) analogue switches integrated in a compact 16-pin PDIP package. It provides reliable multiplexing capabilities for a variety of electronic designs requiring switching of analogue signals, leveraging CMOS technology for low power consumption and minimal interference.

Operating within a broad supply voltage range from -4.5 V up to 30 V, it accommodates many DC and AC signal routing applications. With a maximum on-state resistance of 15 ohms, the IC ensures efficient signal integrity preservation during switching.

The device functions optimally in environments ranging from 0°C to 70°C, making it suitable for industrial, laboratory, and consumer electronics use. The through-hole mounting and standard 16-pin PDIP package facilitate easy integration into prototype boards and production PCBs.

Typical applications include signal routing in sensor systems, audio multiplexing, and general purpose analogue switching in communication devices and control systems. The MAX313 series is recognized for robust performance and ease of use in semiconductor logic IC applications.

CMOS technology offers low power consumption and high noise immunity. Features 4 single-pole single-throw (SPST) switches for analog signal multiplexing. Operates within a supply voltage range of -4.5 V to 30 V. Maximum on-state resistance is 15 ohms ensuring low signal distortion.

Static temperature range is from 0°C to 70°C, supporting typical industrial environments. Package dimensions measure approximately 19.43 mm length, 7.87 mm width, and 4.45 mm height. Designed for mounting by through-hole technique using the 16-pin PDIP package.

Suitable for various semiconductor and electronic circuit applications requiring multiplexer functionality.

This multiplexer IC is ideal for industries including semiconductor manufacturing, automotive electronics, consumer devices, and embedded systems development. It meets the requirements for high performance multiplexer/demultiplexer integration in electronic circuits.

Explore more Semiconductor components and multiplexer ICs on EnvMart to find solutions tailored to your design needs.
