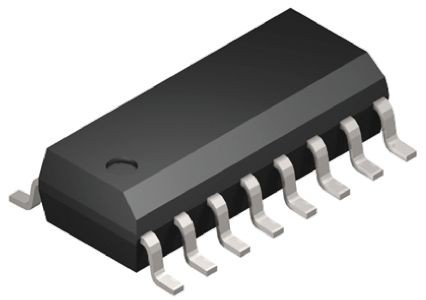

Maxim Integrated Analogue Switch 16-Pin SOIC, CMOS Quad SPST Multiplexer MAX391CSE+
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Maxim Integrated |
| Height | 1.5mm |
| Length | 10mm |
| Model | MAX391CSE+ |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | MAX391 |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 15V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -8V |
| Multiplexer/Demultiplexer | Multiplexer |
| Maximum On State Resistance | 45Ω |
Key Features
- Operates within a supply voltage range of -8V to 15V.
- Maximum on-state resistance of 45 ohms ensuring efficient signal conduction.
- Configured as a quad SPST switch with 4 elements per chip.
- Supports CMOS/TTL output logic family and surface mount packaging.
- Operating temperature range from 0°C to 70°C for industrial use.
- Complies with RoHS environmental standards.
- Manufactured in the United States meeting high-quality standards.
Product Description
Maxim Integrated MAX391CSE+ analogue switch is a 16-pin SOIC packaged device featuring 4 CMOS quad single-pole single-throw (SPST) switches integrated in a compact format. Designed to serve in multiplexer applications, this device operates across a wide supply voltage range from -8V to 15V suitable for various industrial and electronic uses.
This analogue switch ensures a maximum on-state resistance of 45 ohms which delivers efficient signal switching performance under controlled temperature ranges from 0°C to 70°C. Its CMOS/TTL compatible outputs allow for use in logic and switching circuits requiring minimal power consumption, typical of CMOS technology.
The device supports surface mount technology with its small SOIC package dimensions of 1.5 mm height, 10 mm length, and 4 mm width, making it appropriate for compact printed circuit board layouts in advanced electronics.
The MAX391CSE+ complies with RoHS directives, highlighting its environmental compliance and making it suitable for use in environmentally conscious product designs. Manufactured in the United States, it meets high industrial quality standards.
Operates from -8V to 15V supply voltage. Maximum on-state resistance is 45Ω, ensuring signal integrity. Quad SPST configuration with 4 elements per chip. Supports CMOS/TTL outputs for versatile logic family compatibility.
Compact 16-pin SOIC surface mount package facilitates easy PCB integration. Temperature rating from 0°C to 70°C for stable operation. Complies with RoHS environmental standards. Manufactured in the United States ensuring quality manufacturing.
This analogue switch is designed for electronic applications in industrial, telecommunications, power management, and instrumentation domains where reliable multiplexer switching is crucial. It suits designers needing robust signal routing components with low on-resistance and broad voltage handling.
Explore Maxim Integrated products and multiplexer ICs on EnvMart for various integrated circuit needs.
Explore more products in our Semiconductor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of -8V to 15V.
The maximum on-state resistance is 45 ohms, ensuring efficient signal conduction.
It is configured as a quad SPST switch with 4 elements per chip.
It supports CMOS/TTL output logic family, making it versatile for various applications.
The package dimensions are 1.5 mm in height, 10 mm in length, and 4 mm in width.
It operates within a temperature range from 0°C to 70°C.
Yes, it complies with RoHS environmental standards.
This unit features a surface mount type for easy integration into PCBs.
It is manufactured in the United States, meeting high-quality standards.
This analogue switch is designed for use in industrial, telecommunications, power management, and instrumentation applications.
The device has a pin count of 16.
It is compatible with the CMOS logic family, allowing for low power consumption in applications.
