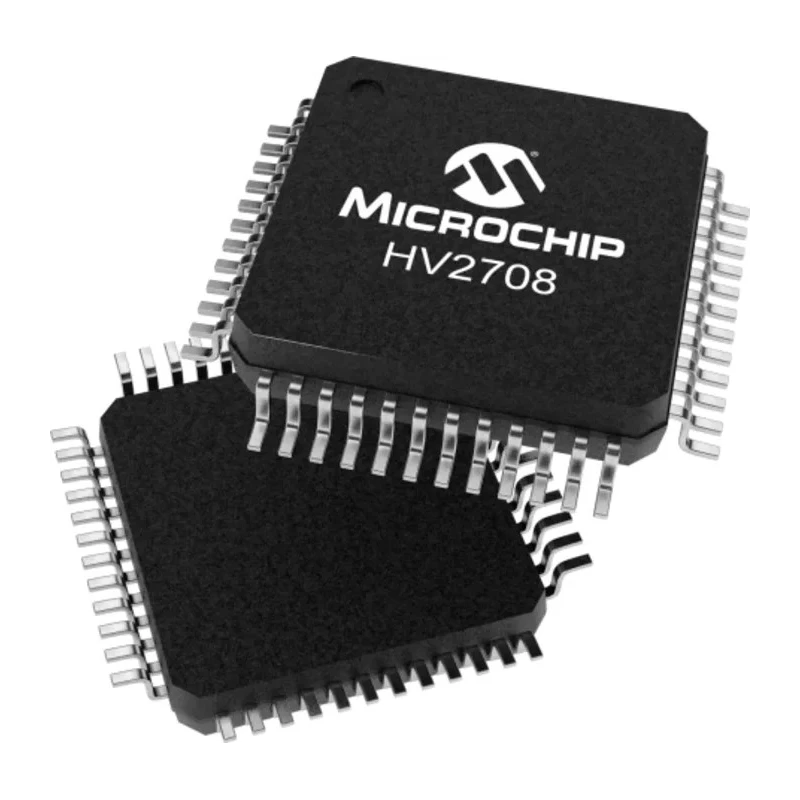

Microchip HV2708T-C/R8X Analogue Switch 1 CMOS Multiplexer Surface Mount 48-Pin LQFP HV2708T-C/R8X

Microchip HV2708T-C/R8X is a high voltage analogue switch featuring a 1 CMOS multiplexer architecture housed in a 48-pin LQFP surface mount package. It supports analog signal voltages as high as ±100V while requiring only a low voltage bias supply between 4.5V and 6.3V, making it ideal for applications that necessitate high-voltage switching controlled via low-voltage signals.

This device is engineered specifically for demanding environments such as medical ultrasound imaging, piezoelectric transducer driving, and printer controls, where precision high-voltage switching is critical. Its 16-channel analogue switching feature permits multiplexing several signal channels effectively.

The switch operates across a temperature range from 0°C to 70°C, meeting industrial application standards. Its maximum on-state resistance of 23 ohms helps maintain signal quality by reducing power loss. Ultra-low quiescent current below 10 microamps and low parasitic capacitance extend device efficiency and optimize signal integrity.

Operating at a data shift clock frequency of 66 MHz, the HV2708T-C/R8X supports fast and efficient switching cycles suitable for high-performance electronics. The compact footprint of 7 mm by 7 mm with a height of 1 mm ensures compatibility with space-constrained PCB designs.

RoHS compliant and surface mountable, this Microchip analogue switch delivers reliable, efficient performance for industrial, medical, laboratory, and manufacturing controls requiring precision multiplexing. It enables simplified design while maintaining robust high-voltage signal switching.

Features 16-channel high-voltage analogue switch capabilities. Operates from a low voltage supply with minimum 4.5V and maximum 6.3V supply voltage. Maximum on-state resistance specified at 23 ohms ensuring low signal loss.

Supports analog signal voltages up to ±100V for diverse applications. Designed for operating temperatures from 0°C to 70°C suitable for industrial environments. Ultra-low quiescent current consumption of less than 10 microamps for energy-efficient use.

Uses a 66 MHz data shift clock frequency for rapid switching operations. Low parasitic capacitance minimizes signal distortion and crosstalk. Compact 7 mm length, 7 mm width, and 1 mm height dimensions in LQFP packaging.

RoHS compliant ensuring environmentally friendly manufacturing standards.
