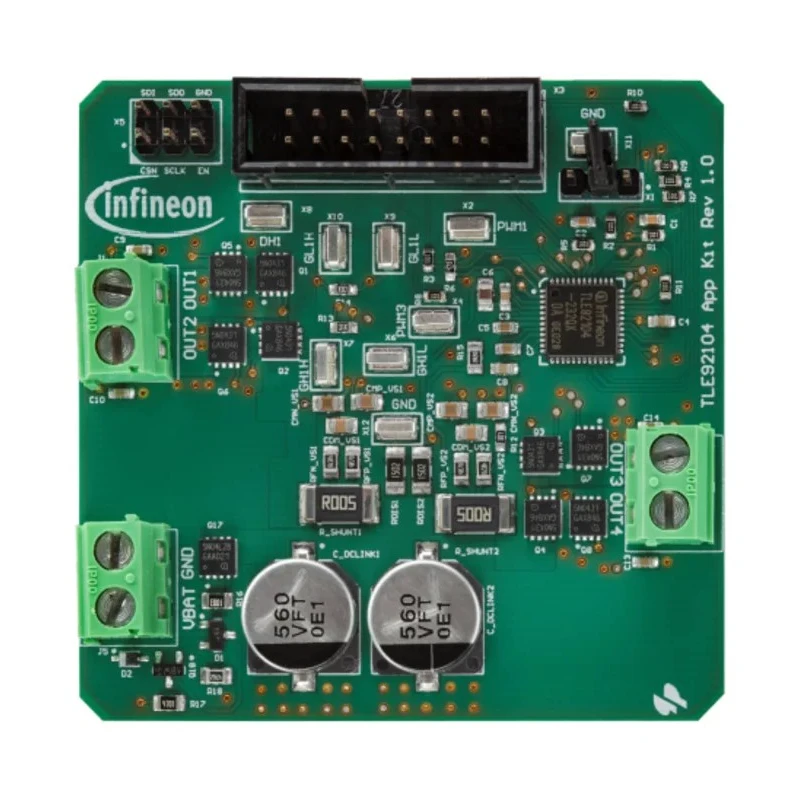

Infineon Evaluation Board for Multi MOSFET Driver IC with TLE92104-232QX, 4 Half-Bridges, for TLE9210423QXAPPKITTOBO1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | TLE9210423QXAPPKITTOBO1 |
| For Use With | Power Management |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | TLE92104-232QX |
| Kit Name | Evaluation board for Multi MOSFET Driver IC TLE92104-131QX/TLE9210-232QX |
Key Features
- The board supports the control and diagnostic configuration through an intuitive graphical user interface.
- It is compatible with vehicle-level power supply, capable of driving up to 8 DC motors simultaneously.
- Includes integrated on-board reverse-polarity protection for rapid response to incorrect supply polarity.
- Designed for easy evaluation of hardware and software functionalities of the TLE92104-232QX MOSFET driver IC.
- The application circuitry is typical for industrial and automotive motor driver development.
Product Description
Infineon TLE9210423QXAPPKITTOBO1 Evaluation Board is a high-performance development tool designed for evaluating the Multi MOSFET Driver IC TLE92104-232QX. It features a configuration-ready printed circuit board equipped with four MOSFET half-bridges, allowing it to drive up to four DC motors directly, with provisions to control up to eight motors through connected power supplies. This makes it highly suitable for industrial and automotive applications where multiple motor control is required.
The board provides an intuitive graphic user interface for flexible hardware and software control, enabling precise configuration and comprehensive diagnostics. Designed for connection to vehicle-level power supply systems, the Evaluation Board includes active on-board reverse-polarity protection ensuring the fastest response to possible supply reversals, thereby safeguarding connected components.
This evaluation kit simplifies the process of exploring both hardware and software functionalities of the featured Multi MOSFET Driver IC, supporting developers in prototyping and testing power management systems involving multiple motor controls.
Applications extend to industrial automation, automotive motor control, robotics, HVAC systems, and other power management implementations requiring robust MOSFET driver circuit evaluation capabilities.
The board supports the control and diagnostic configuration through an intuitive graphical user interface. It is compatible with vehicle-level power supply, capable of driving up to 8 DC motors simultaneously. Includes integrated on-board reverse-polarity protection for rapid response to incorrect supply polarity.
Designed for easy evaluation of hardware and software functionalities of the TLE92104-232QX MOSFET driver IC. The application circuitry is typical for industrial and automotive motor driver development. Explore comprehensive power and motor driver development tools within the Infineon range available at EnvMart for diverse industry applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This evaluation board is designed for evaluating the Multi MOSFET Driver IC TLE92104-232QX, enabling control and diagnostic configuration for motor driver applications.
This model is compatible with vehicle-level power supply systems, making it suitable for automotive applications.
It is suitable for industrial automation, automotive motor control, robotics, HVAC systems, and other power management implementations.
It provides an intuitive graphical user interface for flexible hardware and software control, allowing for precise configuration and diagnostics.
The board complies with RoHS standards, ensuring it meets environmental regulations.
The board includes four MOSFET half-bridges as part of its design for motor control applications.
It simplifies the exploration of both hardware and software functionalities of the TLE92104-232QX MOSFET driver IC.
The country of origin for this model is India.
This product is classified as an Evaluation Board, specifically for the Multi MOSFET Driver IC.
