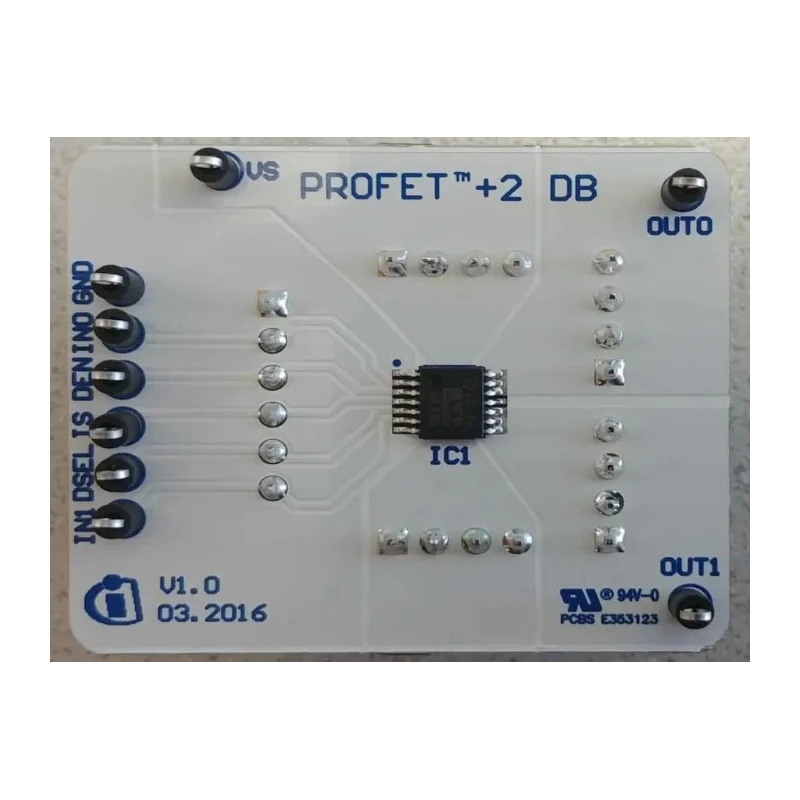

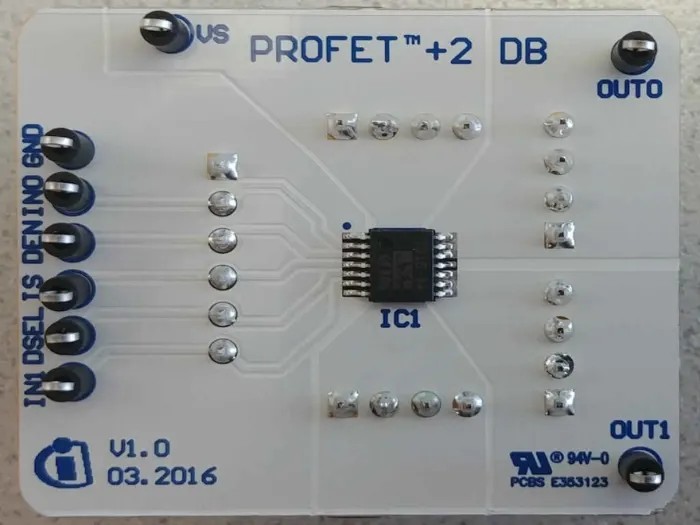

Infineon Automotive High-Side Switch Evaluation Board BTS7012-2EPA DAUGH BRD BTS7012-2EPA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | BTS7012-2EPA |
| For Use With | Automotive |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | BTS7012-2EPA |
| Kit Name | BTS7012-2EPA DAUGH BRD |
Key Features
- The board features 1 high-side switch of BTS7012-2EPA compatible with PROFET+2 12V motherboards.
- Provides protection against current tripping, over-temperature, overvoltage, and load faults.
- Includes load diagnosis capability via current sense output.
- Optimized for design flexibility with pin-to-pin and external component compatibility across the device family.
- Compact size suited for quick pick and place evaluations by customers.
Product Description
The Infineon BTS7012-2EPA DAUGH BRD Evaluation Board is a specialized automotive high-side switch evaluation platform incorporating one BTS7012-2EPA device. Intended for OEMs and developers focused on automotive electronics, this evaluation board is designed for testing and characterization under real-world conditions.
Compatible with PROFET™+2 12V motherboards, it facilitates quick integration into existing evaluation setups for accelerated development cycles. The board provides multiple layers of protection including current tripping, over-temperature shutdown, overvoltage protection, and load fault detection, enhancing diagnostic reliability.
The integrated load current sense output enables precise load diagnosis, critical for maintaining safety and performance standards in automotive electrical systems. The evaluation board is optimized for design flexibility by maintaining pin-to-pin compatibility and supporting a range of external components used across the BTS family of devices.
Miniaturized for efficient lab placement, the board supports rapid pick and place operations, helping automotive component engineers expedite prototype testing. This makes it an ideal tool for automotive power management and motor control system validation tasks.
The board includes one BTS7012-2EPA high-side switch device for power management functions. Protection features guard against electrical faults and thermal overload. Current sense output assists in load condition diagnostics.
Pin-to-pin compatibility eases integration with PROFET+2 12V system motherboards. Supports flexible design modifications with external components for broader application use.
This evaluation board is widely used in automotive industry laboratories, research and development departments, and for testing in manufacturing environments involving power switches and control modules. It forms part of Infineon's commitment to delivering reliable automotive power management solutions.
Explore more products in the Evaluation Board category on EnvMart for advanced automotive and power electronics development tools.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BTS7012-2EPA Evaluation Board is designed to evaluate the performance of the BTS7012-2EPA high-side switch, providing functionalities for power management in automotive applications.
This board is compatible with PROFET™+2 12V motherboards, facilitating integration into existing evaluation setups for automotive electronics.
The evaluation board provides protection against current tripping, over-temperature shutdown, overvoltage, and load faults, enhancing diagnostic reliability.
The integrated load current sense output allows for precise load diagnosis, which is critical for maintaining safety and performance in automotive electrical systems.
The evaluation board is miniaturized for efficient lab placement, making it suitable for quick pick and place evaluations by customers.
It is widely used in automotive industry laboratories, research and development departments, and for testing in manufacturing environments involving power switches and control modules.
The country of origin for this evaluation board is India.
This evaluation board complies with RoHS standards, ensuring it meets environmental regulations for hazardous substances.
The featured device on this evaluation board is the BTS7012-2EPA high-side switch, which is integral for its power management functions.
This product is classified as an Evaluation Board, specifically designed for testing and characterization of automotive power management solutions.
Yes, the evaluation board is optimized for design flexibility, maintaining pin-to-pin compatibility and supporting a range of external components used across the BTS family of devices.
The model number of the high-side switch used in this evaluation board is BTS7012-2EPA.
