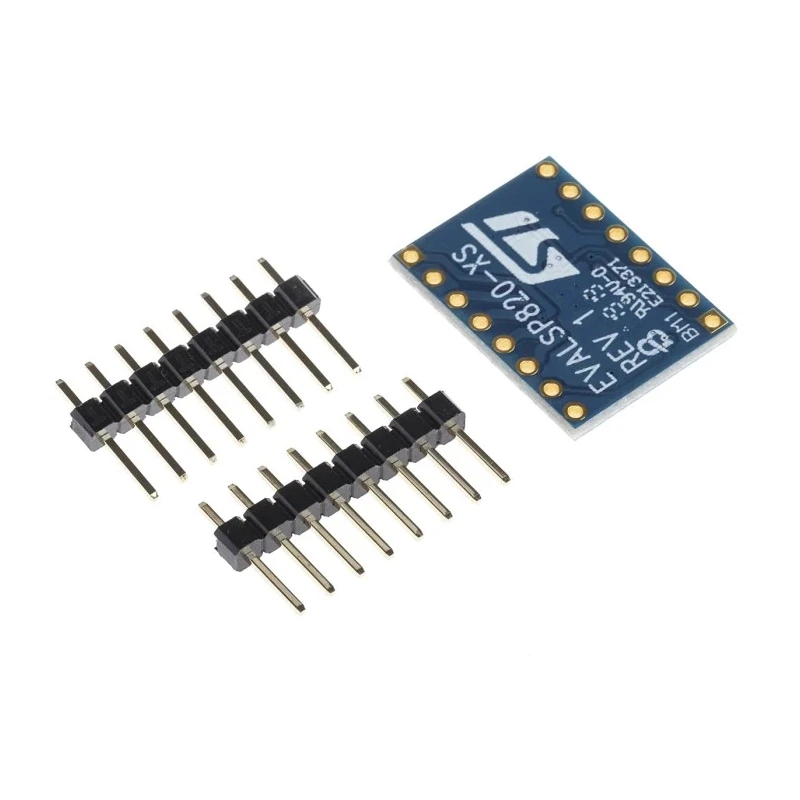

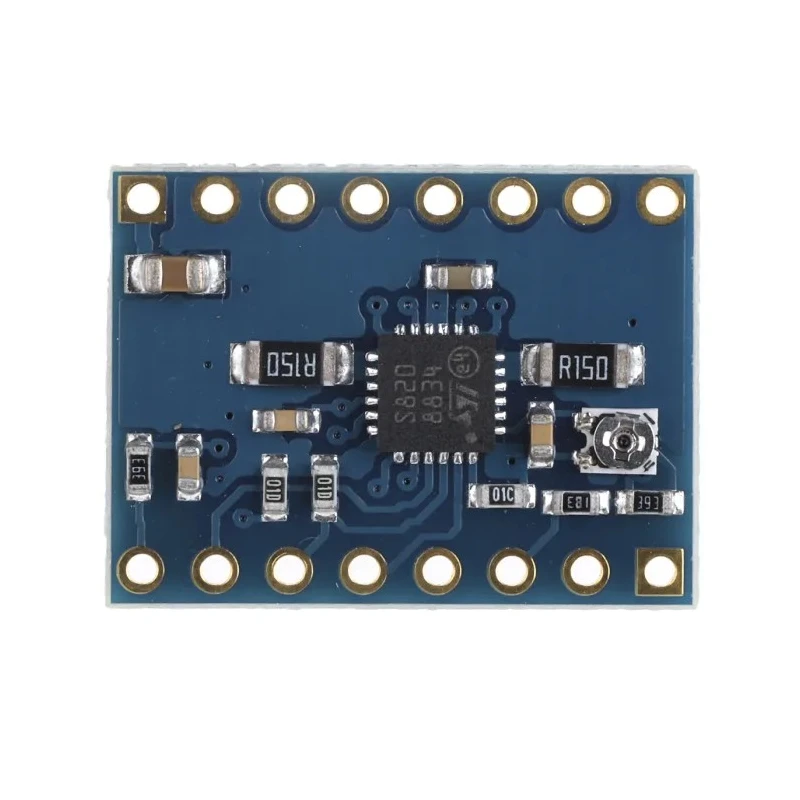

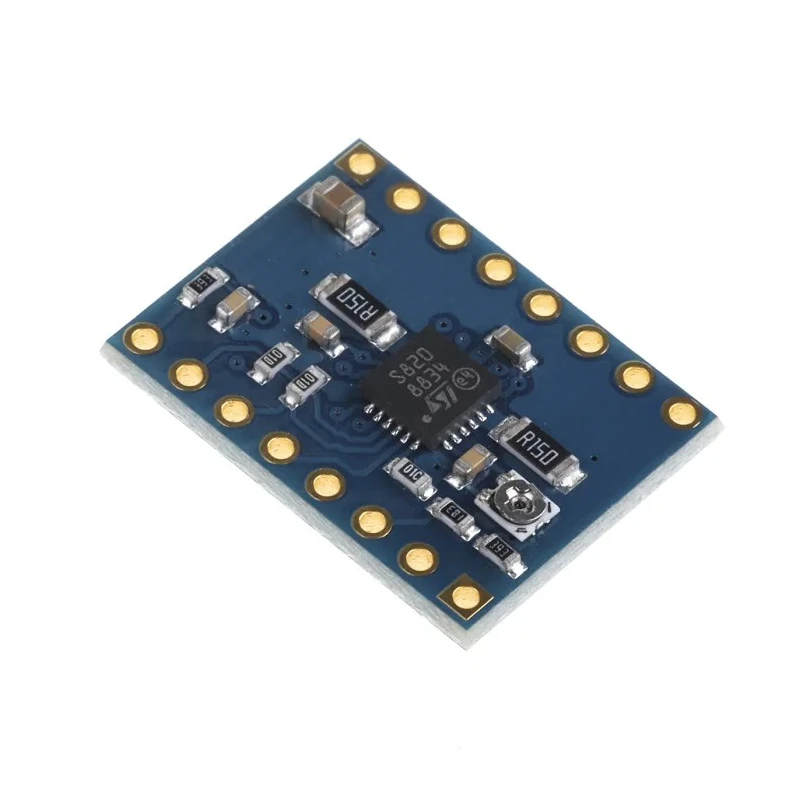

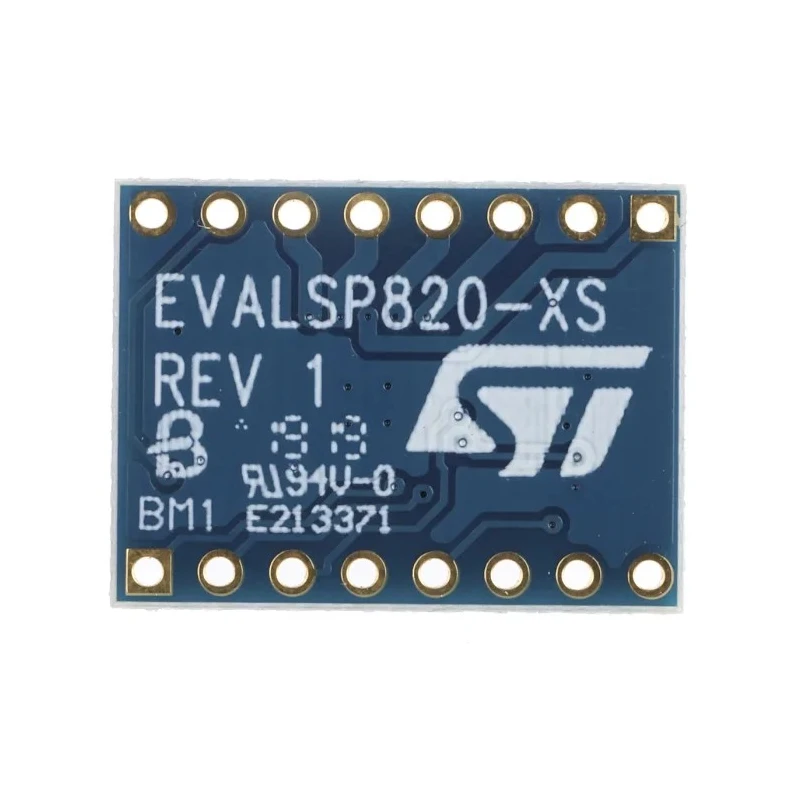

STMicroelectronics Compact Evaluation Board for STSPIN820 Stepper Motor Driver EVALSP820-XS

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Compact Evaluation Board for STSPIN820 Stepper Motor Driver EVALSP820-XS

Name: STMicroelectronics Compact Evaluation Board for STSPIN820 Stepper Motor Driver EVALSP820-XS
Brand: STMicroelectronics
SKU: 420226
Price: 18.92 USD
Availability: InStock



Category Evaluation Board Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Model	EVALSP820-XS
For Use With	STSPIN820
Standards/Approvals	RoHS
Kit Classification	Compact Evaluation Board
Featured Device	EVALSP820-XS
Kit Name	Compact Evaluation Board for STSPIN820 Stepper Motor Driver
Very compact footprint	15mm x 20mm

Key Features

Compact footprint of only 15mm x 20mm ensures space-saving integration.
Adjustable current control with potentiometer for precise voltage settings.
Supports microstep resolutions from full-step up to 1/256 step via jumpers.
Continuous current per phase up to 1.5A with a maximum of 2.5A peak current.
Embedded PWM current control with selectable decay modes enhances motor efficiency.
Wide operating voltage range from 7 V to 45 V suitable for various applications.
Integrated low RDS(ON) power stages improve power efficiency.
Fully compatible with RAMPS and similar 3D printing platforms for easy deployment.

Product Description

STMicroelectronics EVALSP820-XS Compact Evaluation Board for STSPIN820 Stepper Motor Driver is designed for efficient and precise motor control in a compact form factor. Rated as the world's smallest 45 V micro-stepping driver with up to 2.5 A peak current per phase, the board provides developers and engineers a minimalistic solution to evaluate and implement the STSPIN820 motor driver functionality without the need for extra devices.

This compact evaluation board measures just 15mm by 20mm, making it ideal for installations where space is critical. The adjustable current control potentiometer enables accurate setting of reference voltages while the embedded PWM current control with several selectable decay modes optimizes motor performance and efficiency. The hardware is engineered to support microstepping from full-step to extremely fine 1/256 step resolutions, allowing smooth and precise motor movement.

Operating voltage flexibility from 7 V to 45 V extends its suitability across a broad range of applications including 3D printers, ATM and cash handling machines, CCTV and security cameras, medical and home automation equipment, point-of-sale systems, robotics, and textile machinery.

The board integrates low RDS(ON) power stages and comprehensive protection features, ensuring robustness and safety in demanding environments. Compatibility with RAMPS and other FFF 3D printing platforms facilitates quick and effective system integration and replacement.

Compact 15mm x 20mm footprint for space-constrained applications. Adjustable current control via potentiometer for fine tuning. High-resolution microstepping selectable through jumpers. Continuous current rating of 1.5A per phase, peak of 2.5A.

Embedded PWM current control with various decay modes. Wide operating voltage range between 7 V and 45 V. Integrated low RDS(ON) power stages improve efficiency. Full embedded protection circuitry for safe operation. Simple step and direction control interface.

Compatible with RAMPS and similar 3D printer platforms.

This Evaluation Board is ideal for industrial, laboratory, manufacturing, and educational use cases requiring precise and efficient stepper motor control. Discover advanced power management development kits on EnvMart to optimize your motor driver applications.
