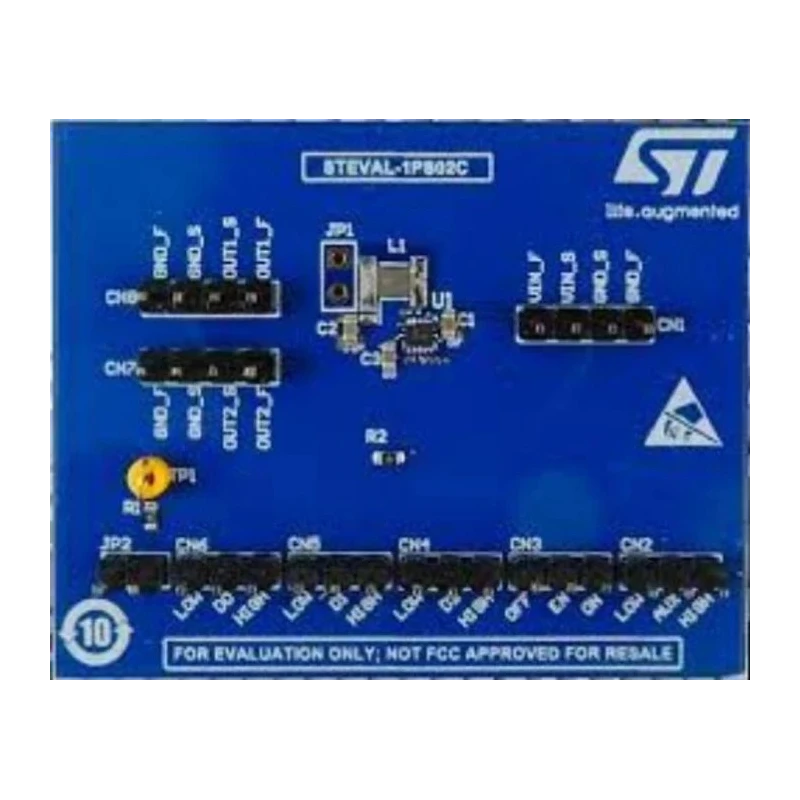

STMicroelectronics Evaluation Board Based on ST1PS02CQTR 400 mA Nano-Quiescent Synchronous Step-Down Converter STEVAL-1PS02C

STMicroelectronics STEVAL-1PS02C Evaluation Board based on the ST1PS02CQTR is designed for developers and engineers to evaluate a smart synchronous step-down converter capable of delivering up to 400 mA output current from an input voltage range of 1.8 to 5.5 V.

The output voltage is dynamically adjustable from 2.6 to 3.3 V, allowing tailored power delivery for various low-power electronic applications. It incorporates nano-quiescent technology that achieves minimal quiescent current consumption, improving energy efficiency in battery-powered and portable systems.

The board features a controlled AUX switch to enable supply to subsystems sharing the primary voltage rail, providing flexibility in powering auxiliary components. The core device, the ST1PS02CQTR, is supplied in a space-saving TQFN12 package measuring 2.0 x 1.7 mm, facilitating compact PCB design.

Tiny external components such as a 2.2 μH typical inductance inductor contribute to a miniature board footprint, making the evaluation board suitable for embedded development environments.

This evaluation kit complies with WEEE and RoHS standards for hardware, ensuring adherence to environmental and safety regulations in industrial and development environments. Operates from 1.8 V to 5.5 V input voltage range.

Outputs up to 400 mA with adjustable voltage from 2.6 V to 3.3 V. Employs advanced peak current control for stable and efficient power delivery. Integrates controlled AUX switch for subsystem power management. Compact TQFN12 package device for miniaturized designs.

WEEE and RoHS hardware compliance. This board is ideal for industrial, laboratory, embedded system, and power management applications where efficient DC/DC conversion and low quiescent current are critical. Explore more Evaluation Boards and power management solutions on EnvMart to suit your development needs.
