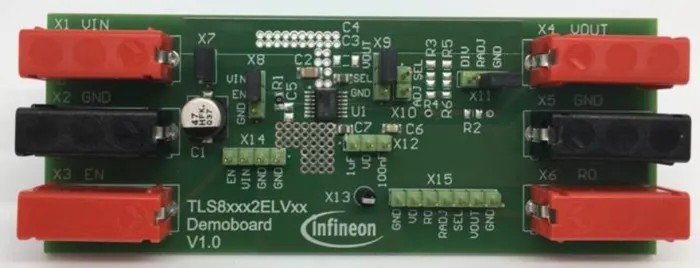

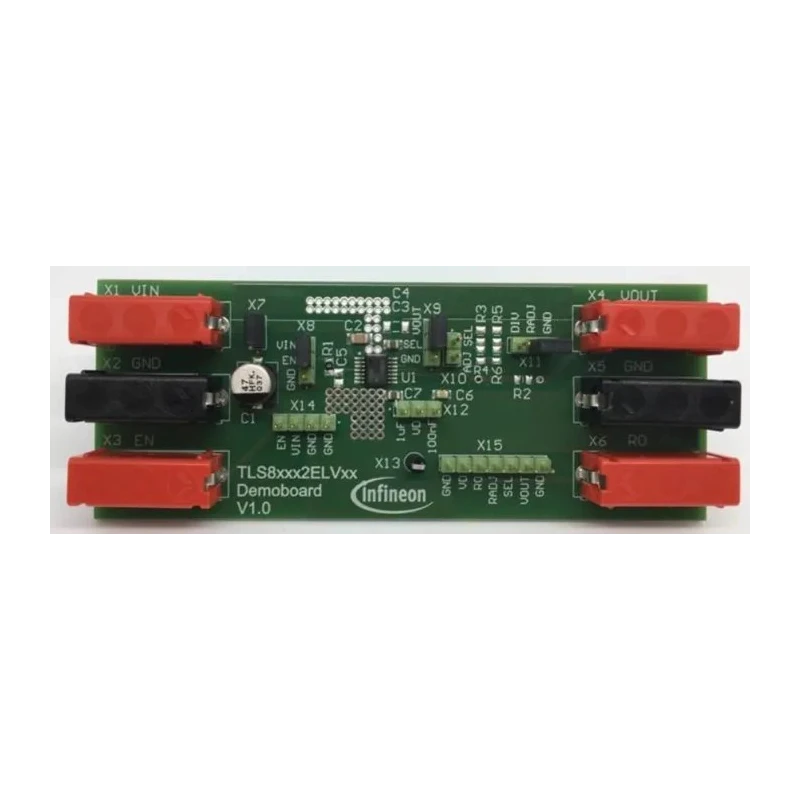

Infineon Evaluation Board TLS835B2ELVSE LDO Voltage Regulator for Microcontroller with Low Quiescent Current TLS835B2ELVSE

Free Delivery in India | Lowest Global Shipping Charges

Infineon Evaluation Board TLS835B2ELVSE LDO Voltage Regulator for Microcontroller with Low Quiescent Current TLS835B2ELVSE

Name: Infineon Evaluation Board TLS835B2ELVSE LDO Voltage Regulator for Microcontroller with Low Quiescent Current TLS835B2ELVSE
Brand: Infineon
SKU: 423249
Price: 20.22 USD
Availability: InStock



Category Evaluation Board Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Model	TLS835B2ELVSE
For Use With	Microcontroller, Low Quiescent Current LDO TLS835B2ELVSE
Standards/Approvals	RoHS
Kit Classification	Evaluation Board
Featured Device	TLS835 Linear Voltage Regulator
Kit Name	TLS835B2ELVSE BOARD

Key Features

The board supports automotive applications including body control modules and HVAC systems.
It features a selectable output voltage of 3.3V or 5V via the SEL pin configuration.
Provides an easy plug and play solution with all external components mounted.
Includes adjustable reset threshold down to 2V and an enable feature.
Incorporates over temperature shutdown and output current limitation for protection.
Built for evaluation of high performance automotive LDOs with ultra-low quiescent current.
Compliant with RoHS standards and designed for automotive ECU connection to battery systems.

Product Description

Infineon TLS835B2ELVSE Evaluation Board is designed as a demonstration and evaluation platform for the TLS835 series of high performance automotive LDO voltage regulators. This board targets microcontroller power management in automotive applications, specifically for body control modules and HVAC systems that require low quiescent current and enable functionality.

The TLS835 LDO voltage regulator features selectable output voltages configured through the SEL pin, allowing 3.3V or 5V output options that can be evaluated easily with the onboard circuitry. This enables designers to test voltage regulator performance under various configurations.

Fully assembled with all necessary external components, the board offers a plug and play solution for quick setup and testing. It includes an adjustable reset threshold down to 2V, enabling comprehensive evaluation of reset and enable features critical for microcontroller operation in automotive systems.

The board also incorporates safety features such as over temperature shutdown and output current limitation to protect the device and load during fault conditions. The TLS835 evaluation board is AEC-Q100 qualified, ensuring reliability for automotive electronic control units connected to vehicle battery systems.

This evaluation board complies with RoHS standards and provides automotive engineers a convenient solution for assessing the TLS835 low drop-out regulator performance in development projects involving microcontrollers and low power electronics within automotive environments.

The board supports automotive body control and HVAC ECUs. Selectable output voltage of 3.3V or 5V via SEL pin. Plug and play with external components mounted. Adjustable reset threshold down to 2V. Built-in enable feature and protection mechanisms.

AEC-Q100 qualified for automotive reliability. Compliance with RoHS environmental standards. Explore more Evaluation Boards and power management solutions on EnvMart to support your automotive or embedded system design needs.
