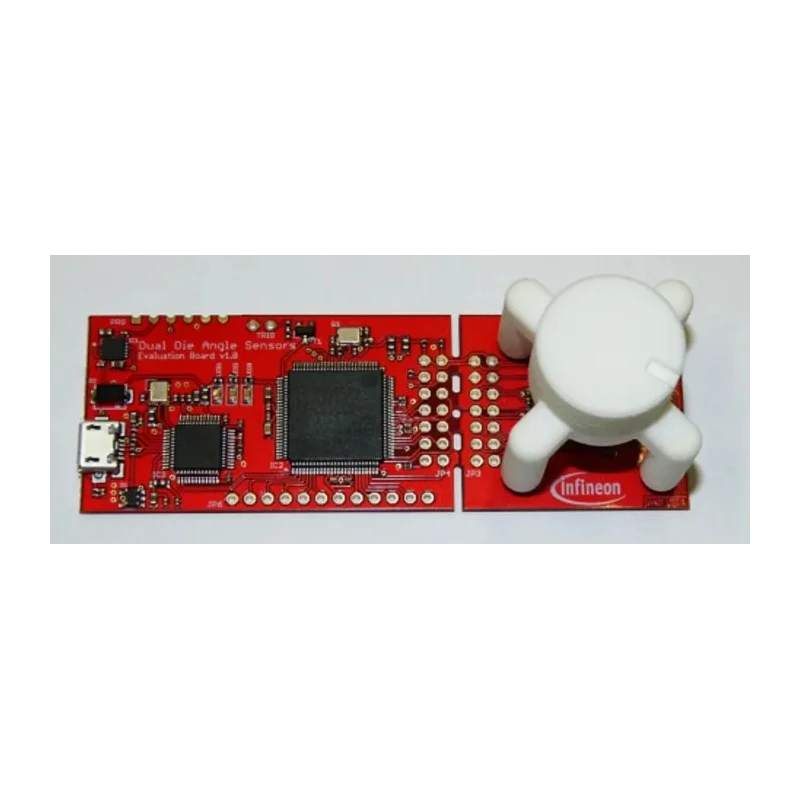

Infineon Sensor Development Tool Evaluation Board EVAL KIT Featuring TLE5009A16D E1210 Dual SMD Angle Sensor TLE5009
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | TLE5009 |
| Sensor Technology | Angle Sensor |
| For Use With | XMCTM4700 platform |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | TLE5009A16D E1210 Dual SMD angle sensor |
| Kit Name | TLE5009 EVAL KIT |
Key Features
- Includes TLE5009A16D E1210 Dual SMD angle sensor for precise angle measurement.
- Pre-mounted magnetic rotation knob eliminates need for external magnet design.
- Enables ultra-fast evaluation with plug-and-play magnetic sensor kit.
- Offers 2T point calibration for high accuracy measurements.
- Compatible with dedicated Graphical User Interface for enhanced software experience.
- RoHS compliant meeting environmental safety standards.
- Designed for rapid prototyping and development in embedded sensor applications.
Product Description
Infineon TLE5009 Sensor Development Tool Evaluation Board is designed to facilitate quick and simple evaluation of the TLE5009A16D E1210 Dual SMD angle sensor using the XMCTM4700 platform. This evaluation kit includes a pre-mounted magnetic rotation knob, removing the complexity of designing and positioning a specific magnet. This feature allows users to rapidly prototype and test magnetic angle sensing applications with high accuracy and reliability.
The board supports 2T point calibration, enhancing measurement precision for industrial, automotive, and embedded applications. The dedicated Graphical User Interface (GUI) streamlines the configuration and monitoring of sensor data, providing an intuitive user experience for engineers and developers.
This evaluation board is RoHS compliant, ensuring environmental responsibility in manufacturing. It is ideal for use in applications requiring precise angle detection such as motor control systems, robotics, position sensing, and industrial automation.
Includes TLE5009A16D E1210 Dual SMD angle sensor for accurate angular measurements. Pre-mounted magnetic rotation knob enables fast plug-and-play setup. Supports 2T point calibration improving sensor accuracy and reliability.
Compatible with XMCTM4700 platform for system integration and testing. Comes with a dedicated GUI for efficient sensor configuration and monitoring. RoHS compliant ensuring environmental safety standards are met. Suitable for industrial, laboratory, automation, and embedded sensor development.
Infineon's XENSIV family of sensor evaluation kits, including this board, accelerates development timelines for integration of magnetic angle sensors in a wide range of applications. The combination of hardware and software tools provides developers with an effective means to evaluate sensor performance and suitability for their specific needs.
Explore more Sensor Development Tools at EnvMart to enhance your product development workflow in electronic sensing and automation technologies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The evaluation board features the TLE5009A16D E1210 Dual SMD angle sensor, which is designed for precise angle measurement.
This kit is compatible with the XMCTM4700 platform, facilitating system integration and testing.
It supports 2T point calibration, which enhances measurement precision for various applications.
The evaluation board includes a pre-mounted magnetic rotation knob, allowing for a fast plug-and-play setup without the need for an external magnet design.
Yes, the evaluation board is RoHS compliant, meeting environmental safety standards.
It is suitable for applications requiring precise angle detection, such as motor control systems, robotics, position sensing, and industrial automation.
It comes with a dedicated Graphical User Interface (GUI) that streamlines the configuration and monitoring of sensor data.
The country of origin for this evaluation board is India.
This product is classified as an Evaluation Board.
The model number of the angle sensor included in the kit is TLE5009.
The main purpose of this evaluation kit is to facilitate quick and simple evaluation of the TLE5009A16D E1210 Dual SMD angle sensor for rapid prototyping and development in embedded sensor applications.
The 2T point calibration feature enhances the accuracy and reliability of the angle sensor measurements.
