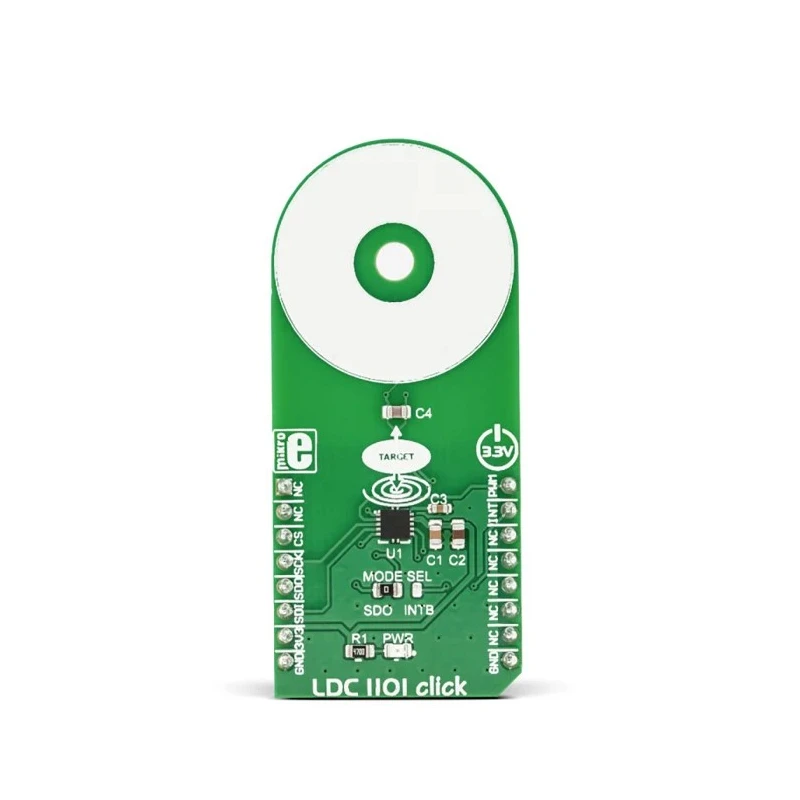

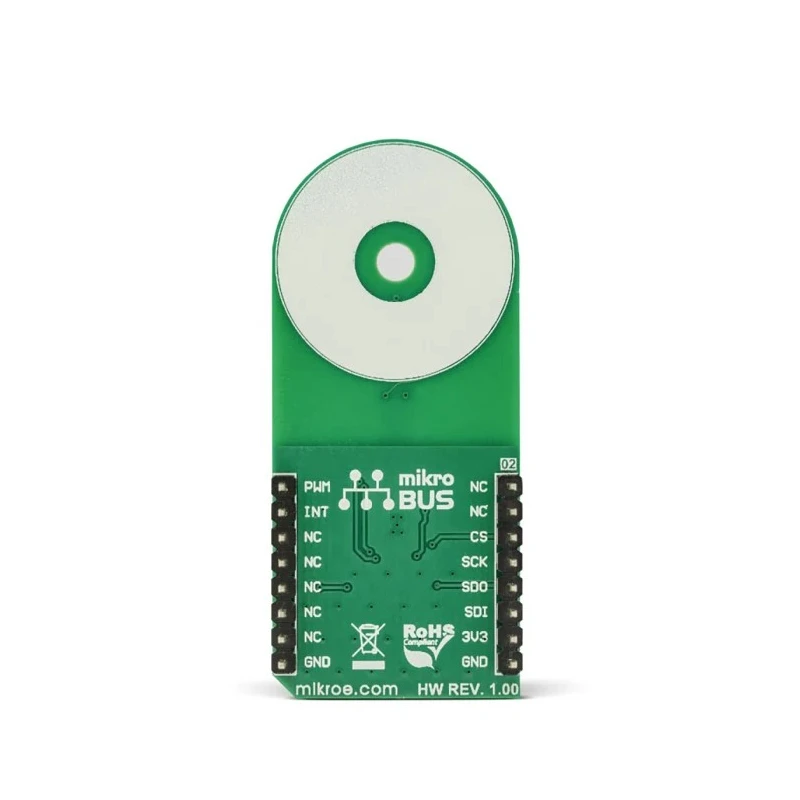

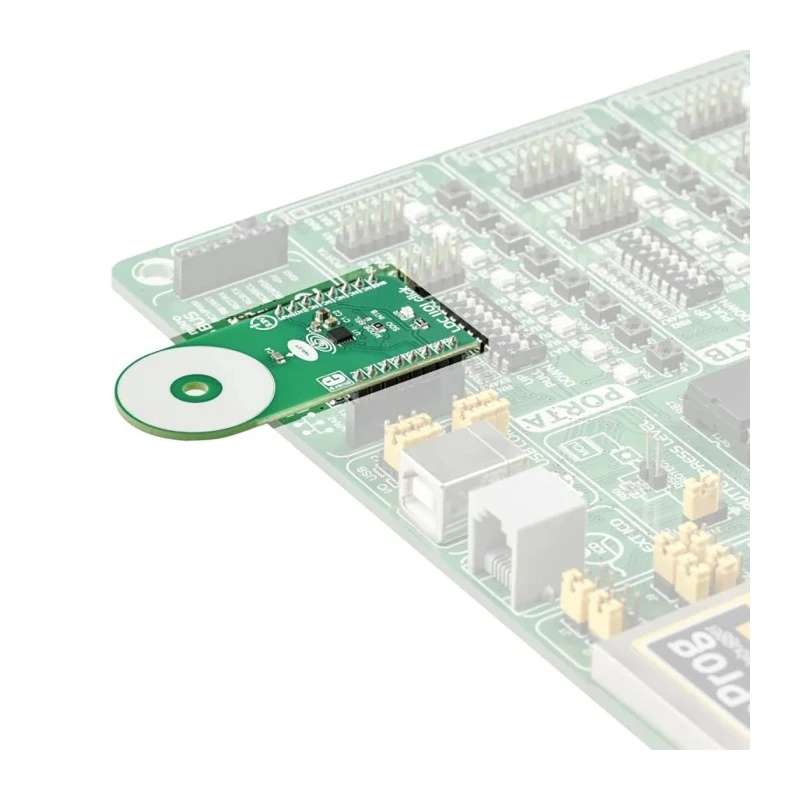

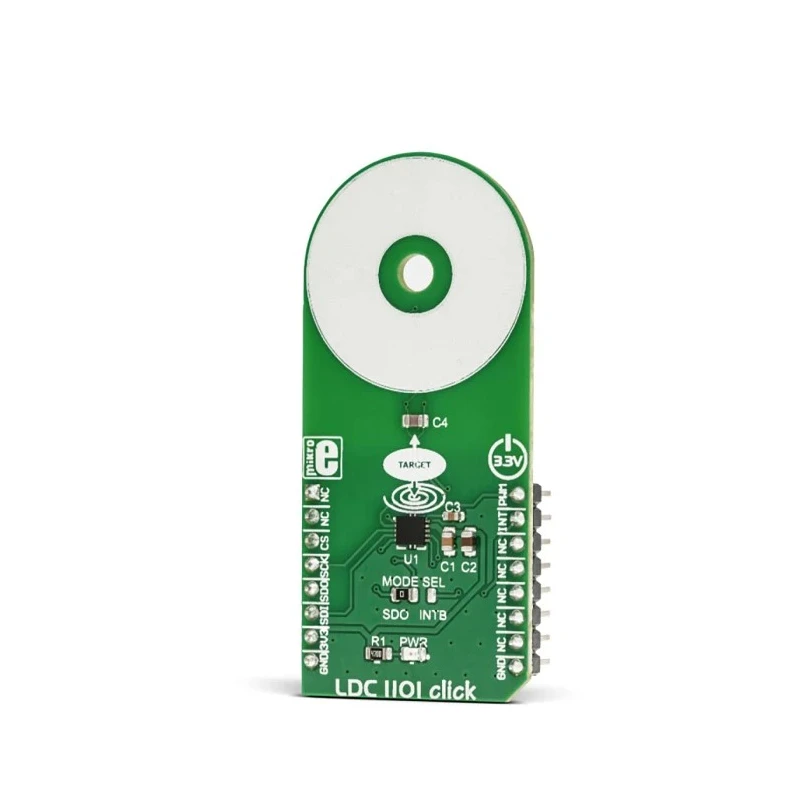

MikroElektronika Sensor Development Tool Click Board 1.8 V to 3.3 V Operating Voltage with 500 kHz to 10 MHz LDC1101

MikroElektronika LDC1101 Click Board is a sensor development tool designed for industrial and laboratory applications requiring highly accurate inductive sensing. This board operates at a wide voltage range from 1.8 V to 3.3 V and supports sensor frequency from 500 kHz up to 10 MHz, ensuring versatile use across various systems.

The device provides high resolution with 16-Bit RP resolution and selectable 16- or 24-Bit L resolution. It features threshold detection functionality and a part-to-part variation of only 1% in RP measurement, delivering robust performance in precise sensing scenarios.

Power consumption is finely managed with a 1.4 µA shutdown mode, 135 µA sleep mode, and 1.9 mA active mode without a connected sensor. Its wide operating temperature range from -40°C to +125°C allows for deployment in harsh industrial environments.

The compact design isolates the inductive sensor from environmental interferences such as oil, water, dirt, and dust, enhancing robustness and reliability. The magnet-free operation simplifies installation and reduces potential interference.

Wide Operating Voltage Range: 1.8 V to 3.3 V. Sensor Frequency Range: 500 kHz to 10 MHz. Resolution: 16-Bit RP, 16- or 24-Bit L. Operating Temperature: -40°C to +125°C. Low Power Shutdown, Sleep, and Active Modes. Threshold Detection Functionality Included.

Robust Environmental Interference Isolation. Magnet-Free Operation for Simplified Deployment.

This Click Board is ideal for high-speed applications including gear counting, event counting, motor speed sensing, and metal detection. It is also suitable for human-machine interfaces (HMI) in appliances, automotive, and consumer electronics.
