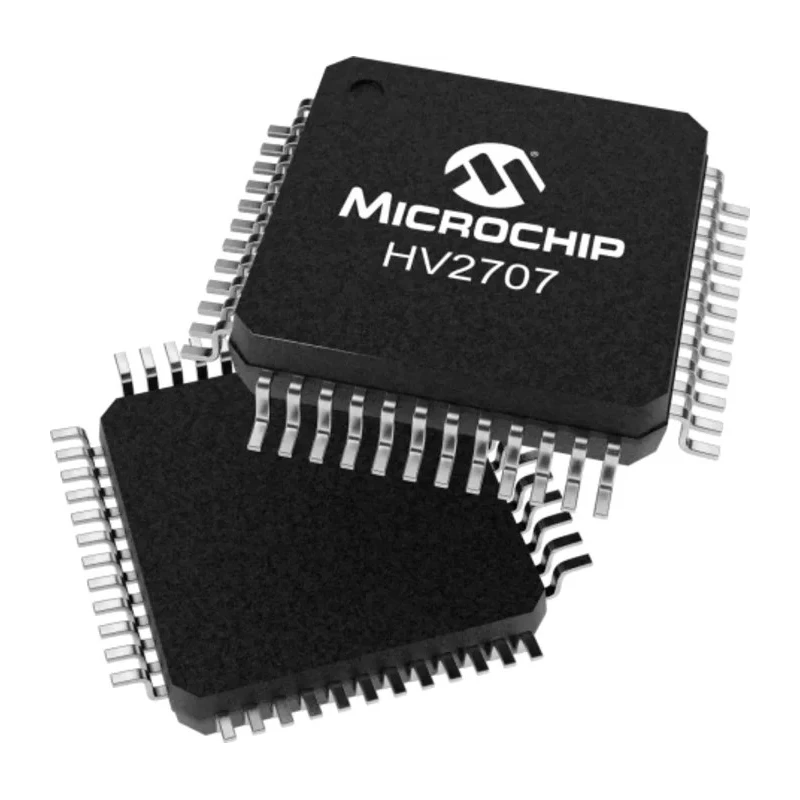

Microchip 16-Channel High Voltage Analogue Switch Multiplexer 48-Pin LQFP HV2707T-C/R8X

Microchip HV2707T-C/R8X is a 16-channel, high-voltage analogue switch multiplexer designed to enable switching of analogue signals with voltages up to ±100V using low-voltage CMOS control signals. It is housed in a compact 48-pin LQFP surface mount package with dimensions of 7 mm by 7 mm by 1 mm height, suitable for integration into advanced electronic circuitry.

This device requires only a single +5V or +6V bias supply, eliminating the need for higher voltage supplies, making it ideal for applications where space and power efficiency are critical. With a maximum on-state resistance of 23 ohms, the device ensures minimal signal loss and high fidelity in switching functions.

Key operating parameters include a temperature range from 0°C up to 70°C, ensuring reliable performance under typical commercial environmental conditions. The ultra-low quiescent current consumption of less than 10 microamperes contributes to power savings and thermal management in sensitive electronic systems.

The high-speed 66 MHz data shift clock capability allows rapid switching and data transfer, making it well-suited for demanding applications such as medical ultrasound imaging, printer drivers, and piezoelectric transducer controls.

The device complies with RoHS directives, confirming it is free from hazardous substances, thus supporting environmental compliance requirements in manufacturing.

With a single element per chip and CMOS logic family, the HV2707 series supports modern system designs requiring precise multiplexing of analogue signals in high-voltage environments.

Supports analogue signal voltages up to ±100V with low harmonic distortion. Operates with a +5V or +6V bias supply only. Maximum on-state resistance of 23 ohms ensures high signal integrity. Operating temperature range from 0°C to 70°C for reliable use.

Ultra-low quiescent current below 10 μA aids energy efficiency. Data shift clock frequency of up to 66 MHz for fast switching. Compact 48-pin LQFP surface mount package (7 mm x 7 mm x 1 mm). Meets RoHS compliance standards.

This Microchip analogue switch multiplexer is ideal for industrial, medical, automotive, and electronics manufacturing applications where high-voltage analogue signal switching is required. Explore more Semiconductor solutions and multiplexer ICs at EnvMart for precise, reliable, and efficient circuit designs.
