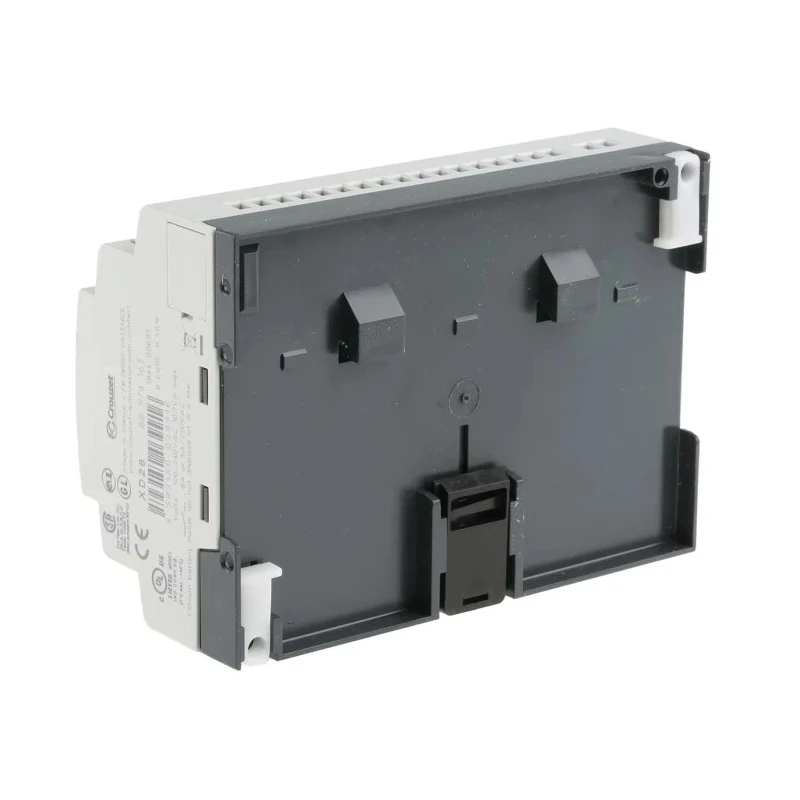

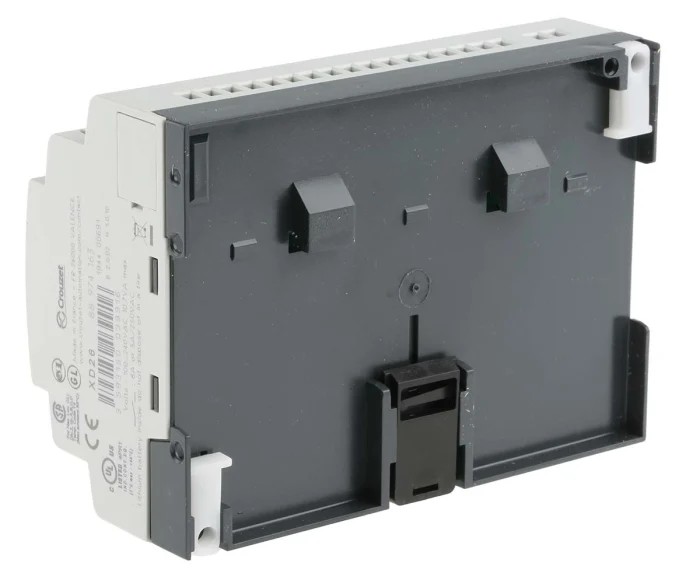

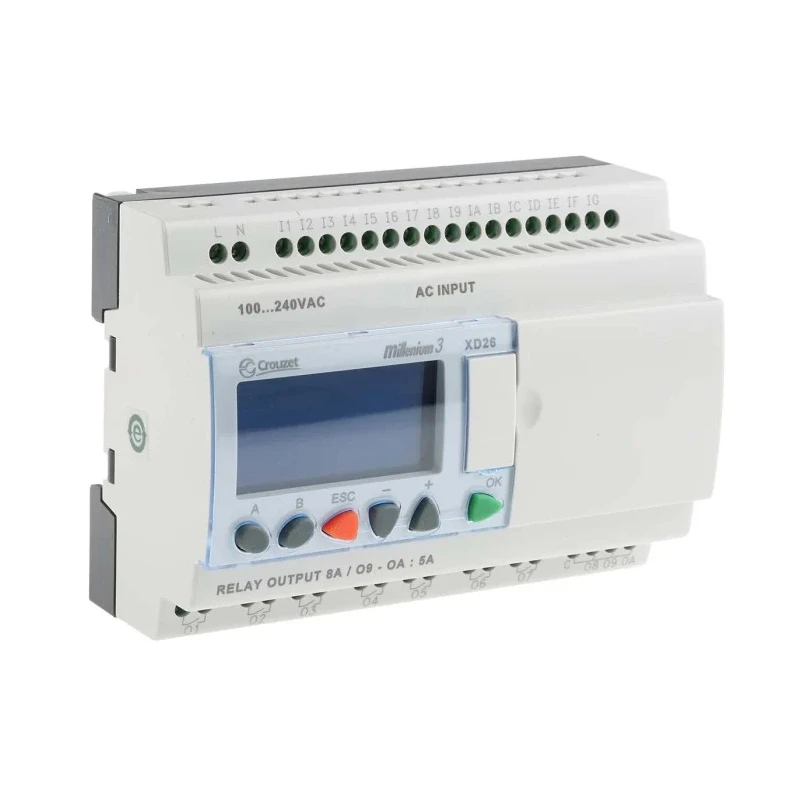

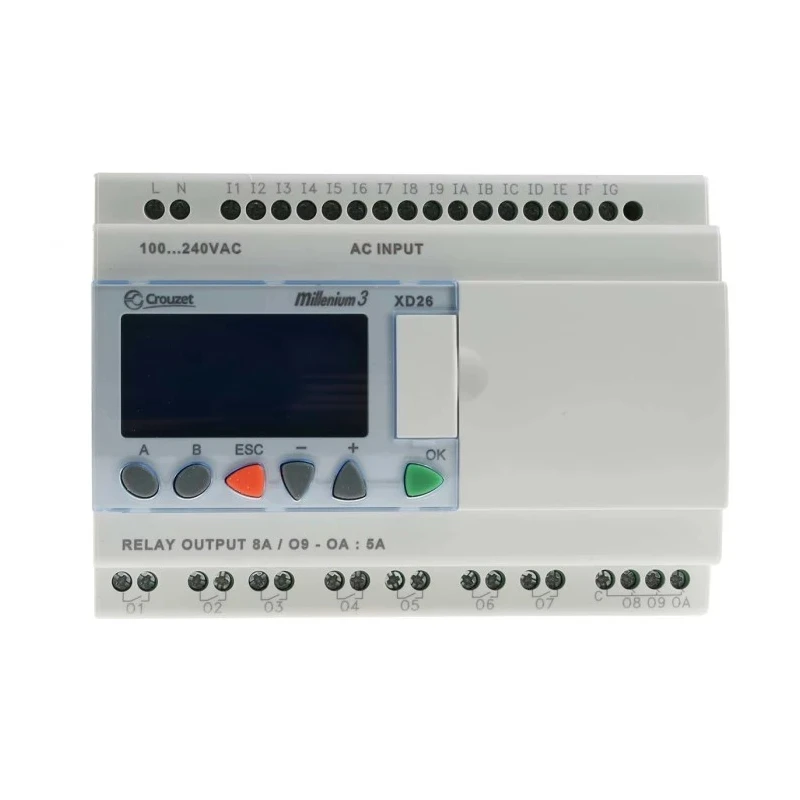

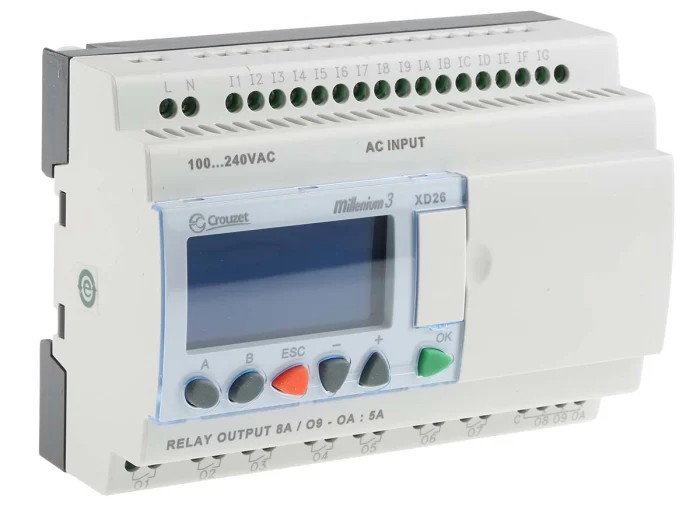

Crouzet Millenium 3 Series Logic Module 16 Digital Inputs 10 Relay Outputs 230V AC 8A Relay Output 88974163

Crouzet 88974163 Millenium 3 Series Logic Module is a robust digital input and relay output module engineered for comprehensive automation control in industrial, commercial, and manufacturing environments. Featuring 16 digital inputs and 10 relay outputs with an output current rating of 8A, this module is designed for applications requiring reliable switching and control.

This logic module supports operation on a 230V AC supply and is suitable for DIN rail mounting with screw-type terminations, facilitating secure and straightforward installation. The Millenium 3 series module includes a large, backlit blue LCD display with four lines and eighteen characters, which provides clear visibility of system parameters and status.

The device's ladder logic programming capacity of 368 bits, combined with versatile programming options, enables advanced control and customization. It includes two communication ports with serial and USB interfaces, facilitating integration into broader automation networks and easy programming access.

Its operating temperature range from -20°C to 55°C makes it reliable in diverse industrial climates. Battery backup ensures program memory retention under power loss conditions, protecting critical control data.

The module meets stringent international industrial standards including IEC/EN 61131-2 for programmable controllers and IEC/EN 61000-6 series for electromagnetic compatibility, making it suitable for rigorous industrial control applications.

Operates at 230V AC with relay outputs rated for 8A current. DIN rail mounted with secure screw terminals for industrial environments. High-visibility LCD display with configurable backlighting enhances user interface clarity.

Supports ladder logic programming with substantial 368-bit program memory capacity. Two communication ports with serial and USB interfaces for flexible connectivity options. Wide operating temperature range from -20°C to +55°C suitable for harsh conditions.

Battery backup preserves program memory, ensuring reliability during power interruptions. Certified to IEC/EN 61131-2 and IEC/EN 61000-6 series standards for safety and EMC compliance.

This Crouzet Millenium 3 Logic Module is ideal for industrial automation tasks including control of manufacturing processes, agricultural machinery automation, HVAC systems, and other programmable logic control applications. Explore more advanced control modules and automation solutions from Crouzet available on EnvMart for professional industrial use.
