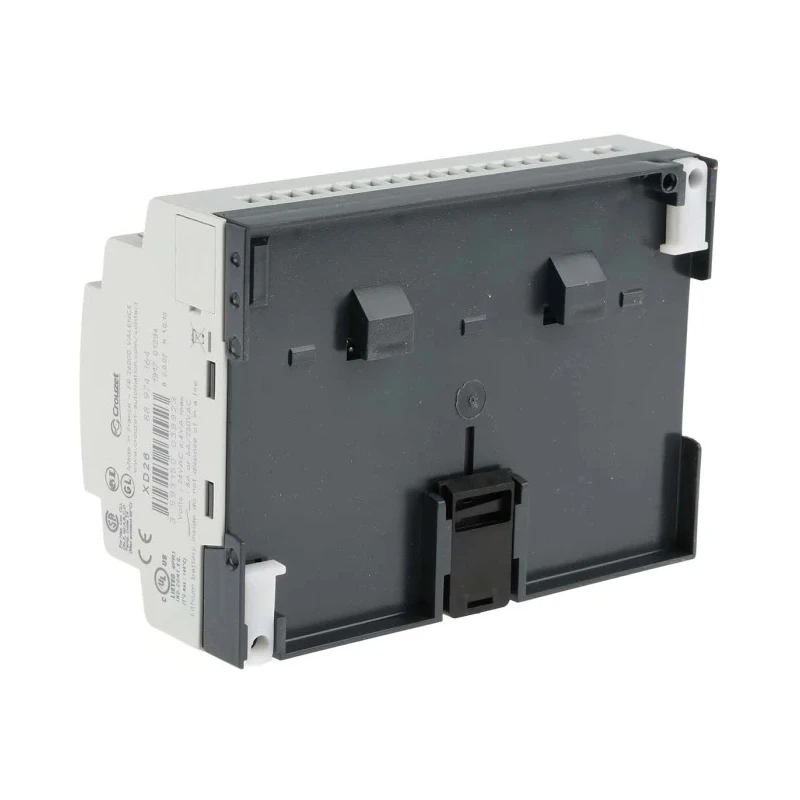

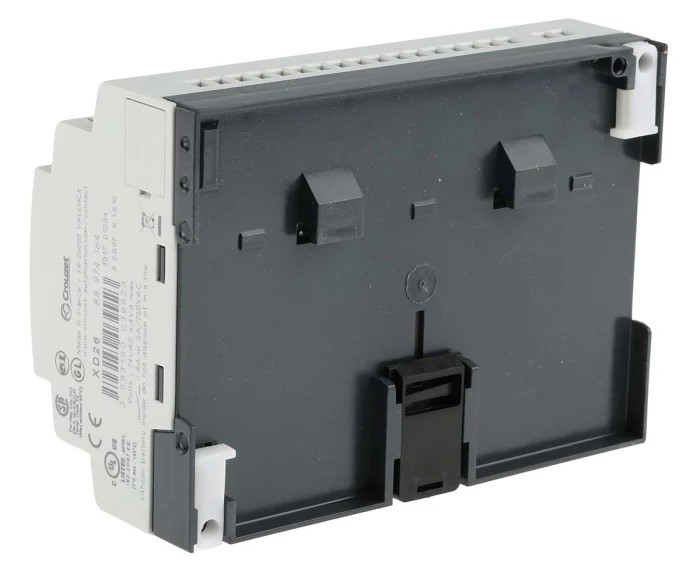

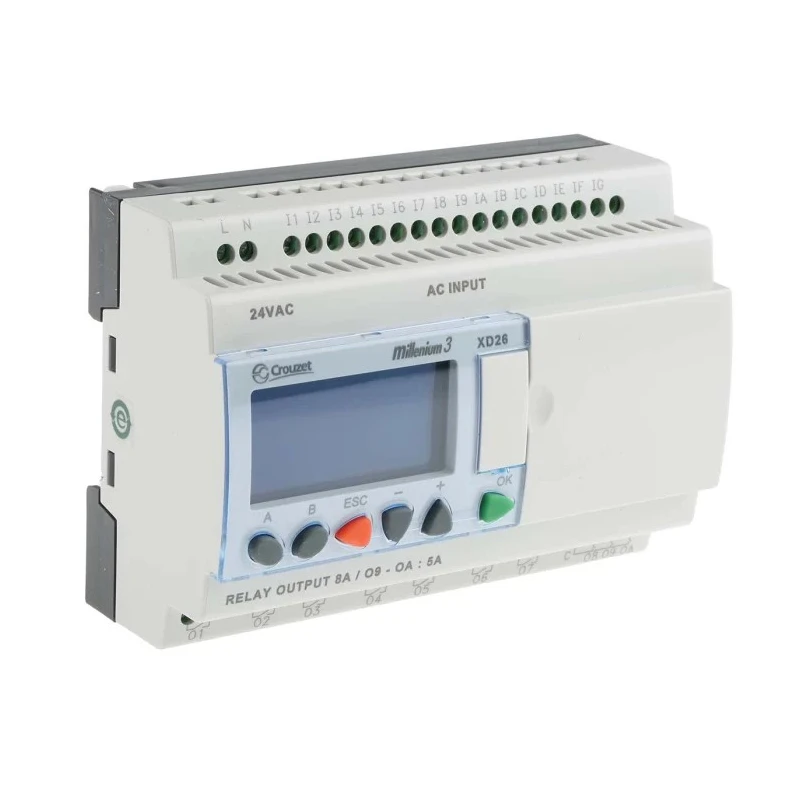

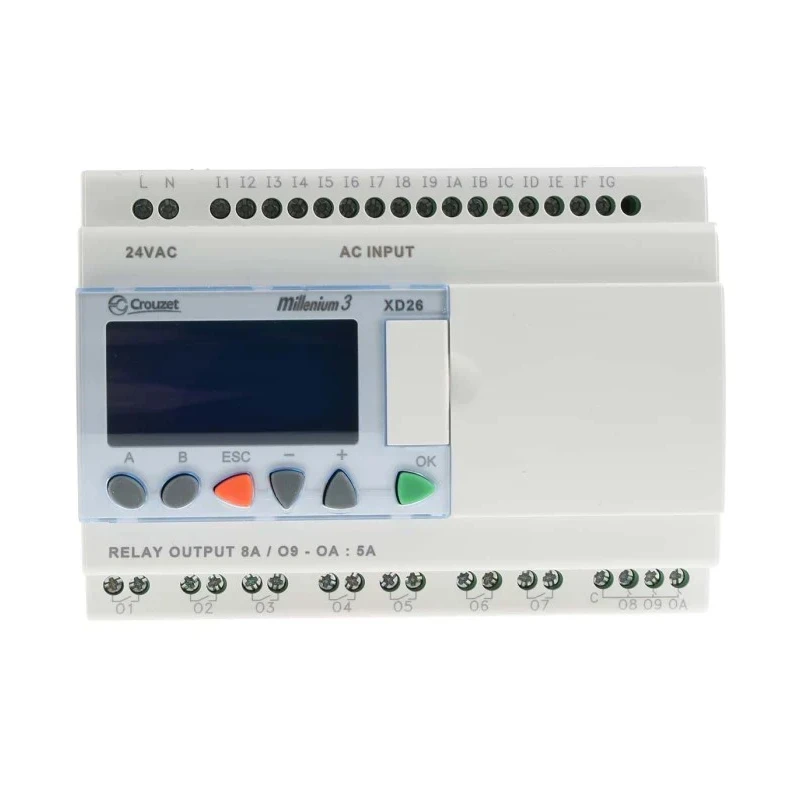

Crouzet Millenium 3 Series Logic Module 16-Input Digital, 10 Relay Outputs, 24V AC 8A Output Current 88974164
Specifications
| Country of Origin | France |
|---|---|
| Brand | Crouzet |
| Length | 100mm |
| Model | 88974164 |
| Depth | 68mm |
| Width | 71.2mm |
| Mount Type | DIN Rail |
| Number of inputs | 16 |
| Output type | Relay |
| Series | Millenium 3 |
| Output Current | 8A |
| Input Type | Digital |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Interfaces | USB port communication |
| Number of outputs | 10 |
| Program Capacity | 368bit |
| Supply Voltage | 24V ac |
| Number of Communication Ports | 2 |
| Communication Port Type | USB, Serial |
| Programming Language Used | Ladder Logic |
| Crouzet Logic Module, 24 V ac Relay, 16 x Input, 10 x Output With DisplayBrand | Crouzet |
Key Features
- Supports digital input type with 16 input channels.
- Equipped with 10 relay outputs capable of 8A current.
- Operates on 24V AC supply suitable for DIN rail mounting.
- Includes battery backup and a clear 4-line LCD display.
- Program capacity of 368 bits with ladder logic programming.
- Communication through USB and serial ports with 2 communication ports.
- Operating temperature range from -20°C to +55°C ensuring environmental resilience.
- Conforms to IEC/EN 61000-6-3, IEC/EN 61000-6-4, and IEC/EN 61131-2 standards.
Product Description
Crouzet 88974164 Millenium 3 Series Logic Module is a versatile programmable logic controller designed for automated industrial control applications. Featuring 16 digital inputs and 10 relay outputs with robust 8A output current capacity, this module is engineered for reliable performance in demanding environments.
Powered by a 24V AC supply and designed for DIN rail mounting, it assures easy installation within industrial panels. The Millenium 3 series offers substantial memory enhancements over previous generations, supporting complex automation programs with a program capacity of 368 bits and ladder logic programming language.
The logic module integrates a highly visible blue backlit LCD display presenting 4 lines and 18 characters for real-time information and diagnostics. It also includes battery backup to safeguard program memory and data retention during power interruptions.
Communication is facilitated through USB and serial ports, providing two communication interfaces for flexible connectivity. The unit operates efficiently over a temperature range of -20°C to +55°C, complemented by compliance with IEC/EN 61000-6-3, IEC/EN 61000-6-4, and IEC/EN 61131-2 standards that ensure immunity to electromagnetic disturbances and open equipment certification.
Applications include automation in washing equipment, agricultural machinery, HVAC systems, and heating control, making it ideal for industrial, manufacturing, and commercial automation tasks.
Supports digital input type with 16 input channels. Equipped with 10 relay outputs capable of 8A current. Operates on 24V AC supply suitable for DIN rail mounting. Includes battery backup and a clear 4-line LCD display. Program capacity of 368 bits with ladder logic programming.
Communication through USB and serial ports with 2 communication ports. Operating temperature range from -20°C to +55°C ensuring environmental resilience. Conforms to IEC/EN 61000-6-3, IEC/EN 61000-6-4, and IEC/EN 61131-2 standards.
Discover the full range of Crouzet Logic Modules and automation components at EnvMart for reliable industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports 16 digital input channels.
It is equipped with 10 relay outputs capable of handling an output current of 8A.
This logic module operates on a supply voltage of 24V AC.
The operating temperature range is from -20°C to +55°C.
It uses Ladder Logic programming language.
The dimensions are 100mm in length, 68mm in depth, and 71.2mm in width.
It features two communication ports, including USB and serial interfaces.
Yes, it includes a battery backup to safeguard program memory and data during power interruptions.
The program capacity is 368 bits, allowing for complex automation programs.
It conforms to IEC/EN 61000-6-3, IEC/EN 61000-6-4, and IEC/EN 61131-2 standards.
It is designed for DIN rail mounting, making installation straightforward in industrial panels.
It is suitable for applications in washing equipment, agricultural machinery, HVAC systems, and heating control.
